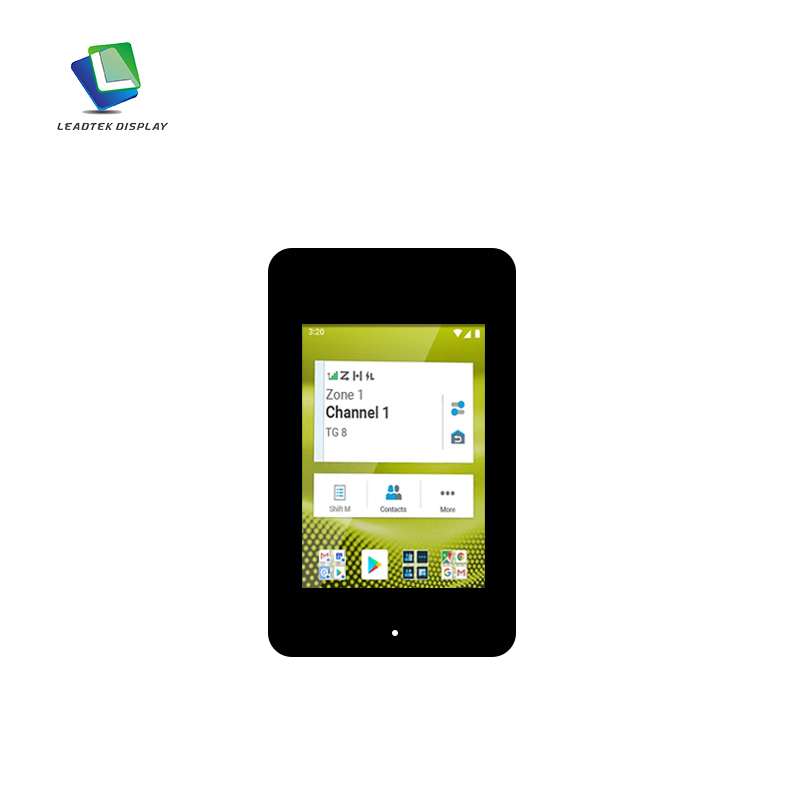

3.5 Inch 320*480 TFT Touch Screen with 4_SPI for Handheld Devices
LTK035HVCCT34-V0 is a transmissive color active matrix TFT LCD touch screen that uses amorphous silicon TFT as a switching device. The module consists of a TFT LCD module, a drive circuit, and a backlight unit. The 3.51-inch resolution contains 320 (RGB)X480 dots and can display up to 16.7M colors. Its overall size is 69.50*116.50*4.17mm, with CTP touch display that supports wet hand touch, and an operating temperature of -10~+60℃, suitable for various home applications.
- Product Details
|
Part Number. |
LTK035HVCCT34-V0 |
| Size | 3.5'' |
| View angle | TN |
| Resolution | 320*480 |
|
Interface |
SPI |
|
Expandable interface |
MCU/RGB |
|
Luminance (cd/m²) |
320 |
| Driver IC | ILI9488 |
| Active Area (mm) | 48.96*73.44 |

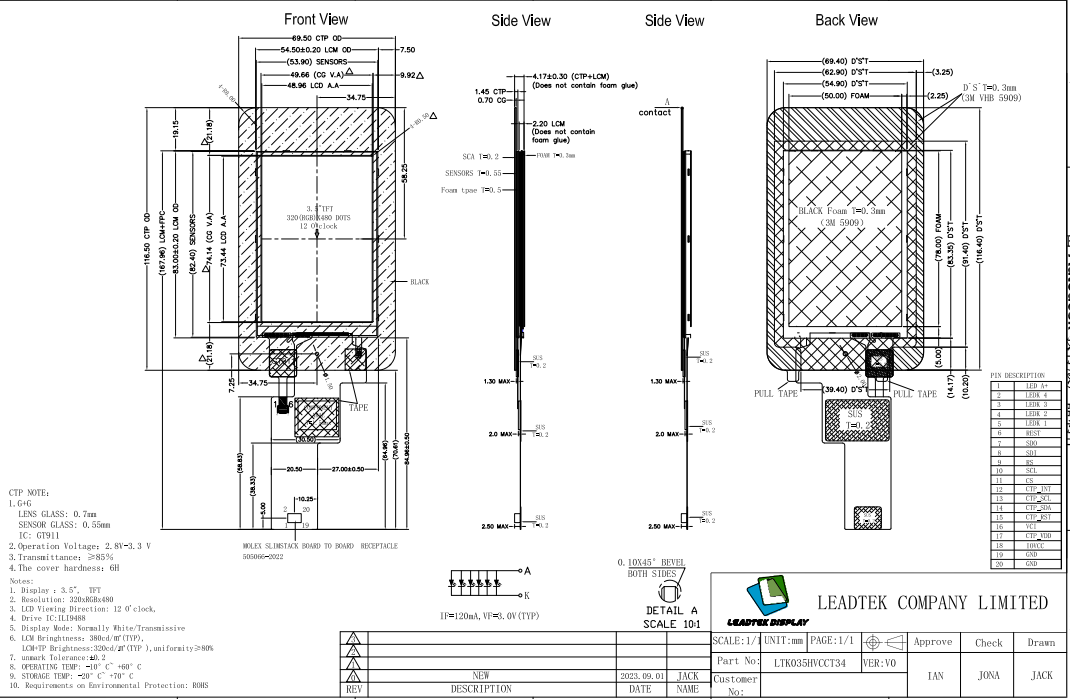

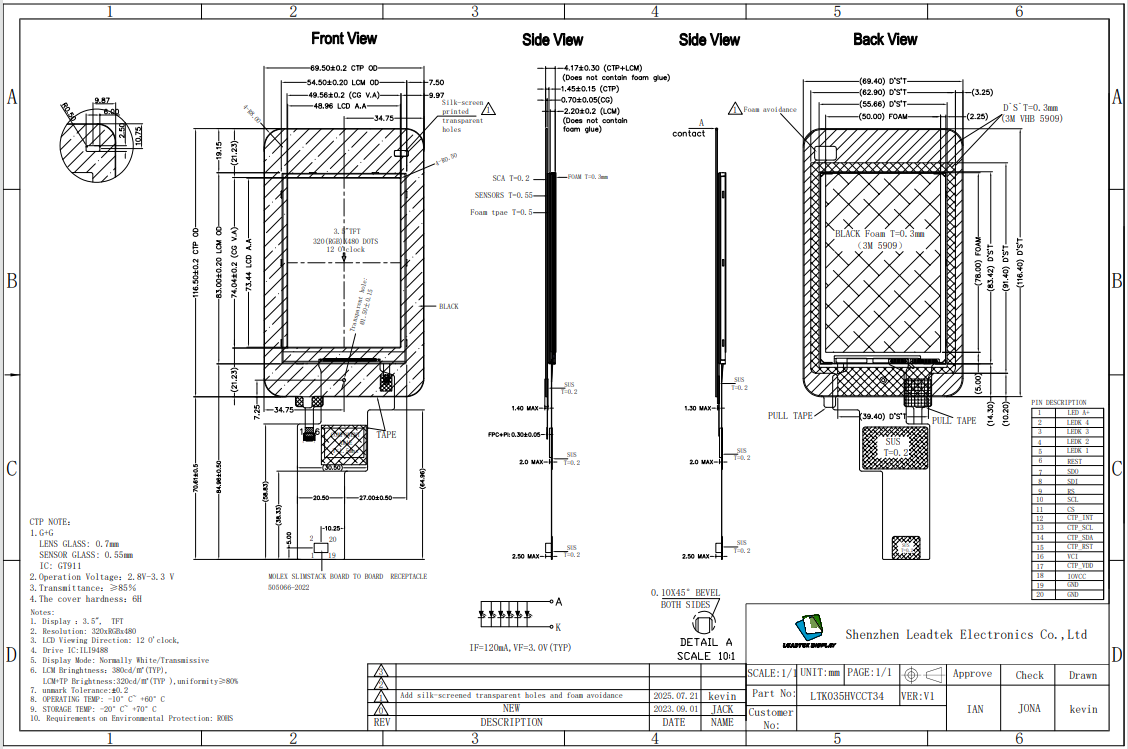

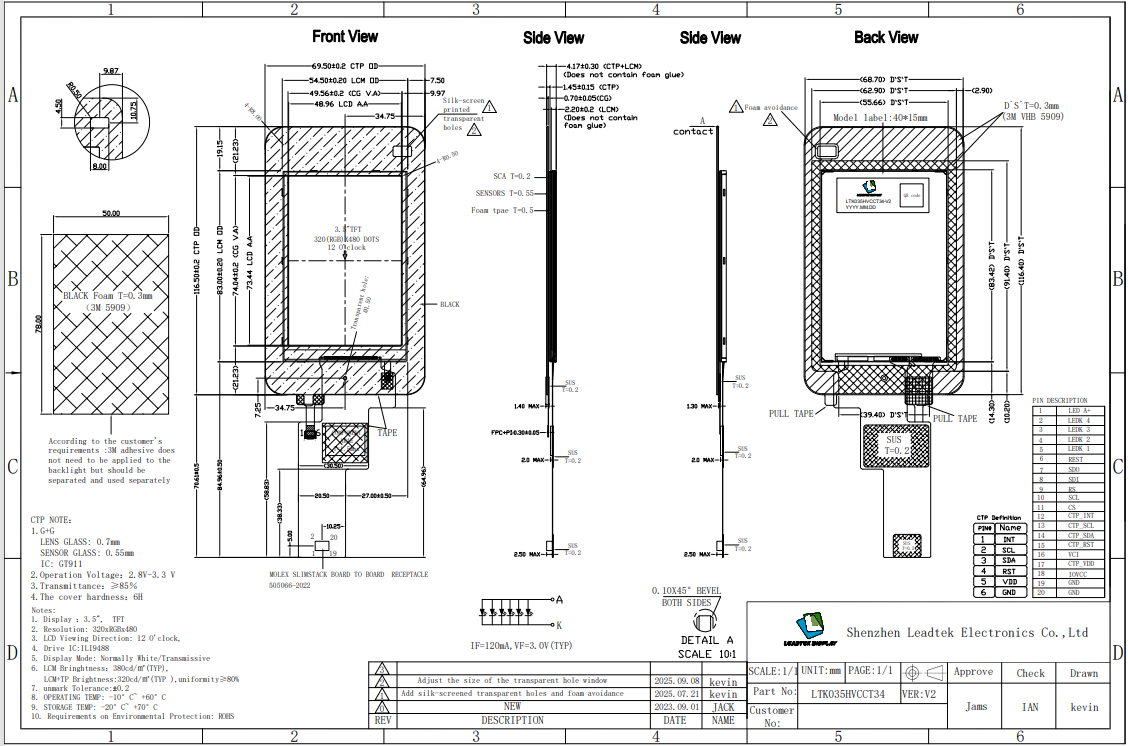

| Outline Dimension (mm) | 69.50*116.50*4.17 |
| Touch Panel | C-TP |
| Structure | G+G |
| TP Interface | IIC 6PIN |
| CTP Driver IC | GT911 |
| Operating Temp | -10-+60℃ |
| Storage Temp | -20-+70℃ |
