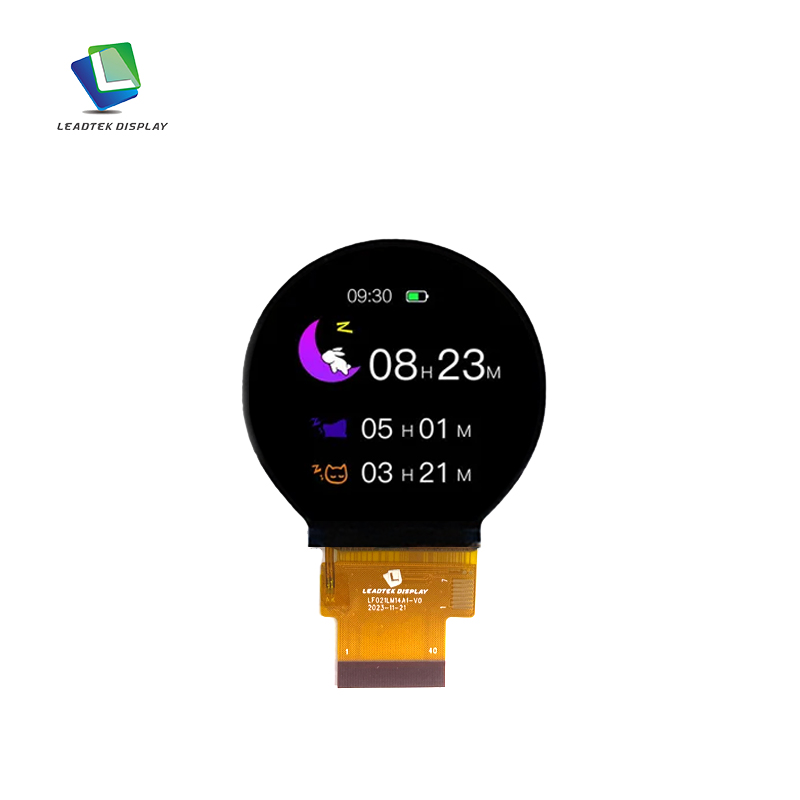

Circular Display, 2.1" Circular Screen TFT LCD Display
The LTK021SQBLM14-V0 is a unique 2.1-inch round IPS LCD display module, designed to offer a distinctive and visually appealing display solution for smart home applications. With a high resolution of 480x480 pixels, this circular display provides sharp, vibrant images, making it perfect for use in modern smart home devices, including interactive control panels, smart home hubs, and digital interfaces.
- Product Details
|
Part Number. |
LTK021SQBLM14-V0 |
| Size(inch) | 2.1 |
|
Display Mode |
IPS |
|
Resolution |
480*480 |
|
Interface |
RGB |
|
Expandable interface |
MIPI |
|
Luminance (cd/m²) |
360 |
|
Module IC Model |
ST7701S |
|

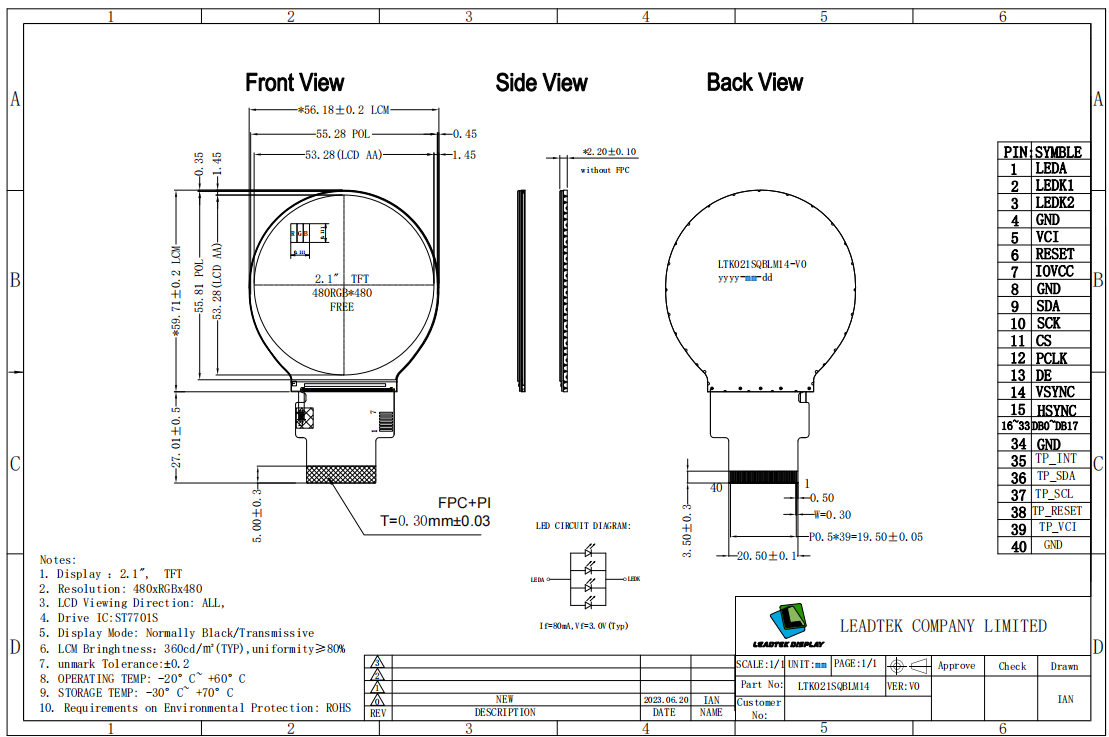

Active Area(mm) |
53.28*53.28 |
|
Outline Dimention(mm) |
56.18*59.71*2.2 |
|
Operating Temp |
-20~+60℃ |
|
Storage Temp |
-30~+70℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
Related Products
-
4.3 Inch 480x800 MIPI TFT Module with High Brightness 1000nits -
10.1 Inch High-Brightness Portrait IPS TDDI TFT LCD Display Module -

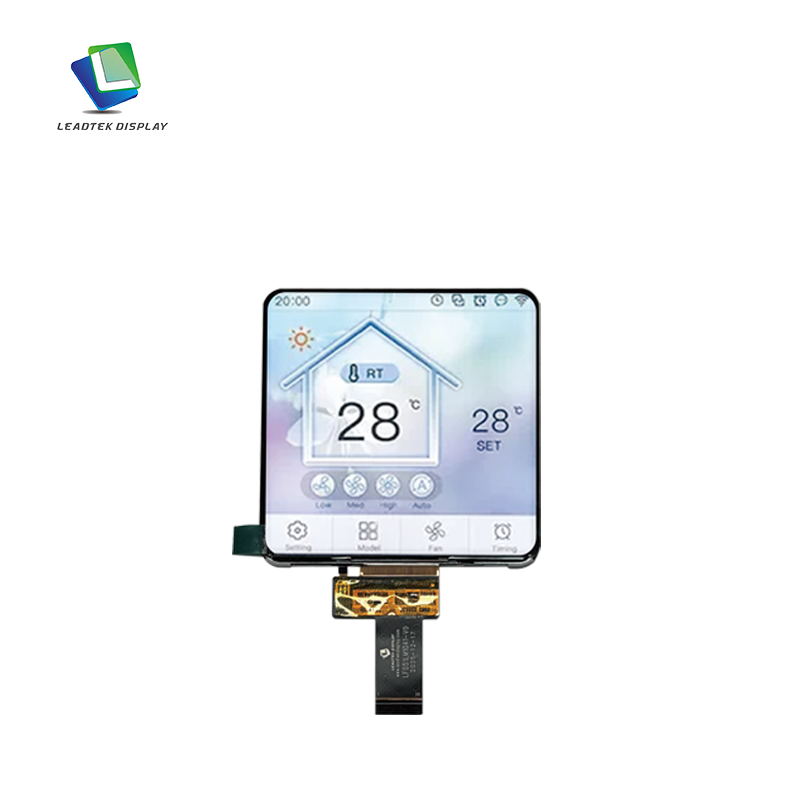

5.08 Inch Square IPS High Brightness TFT LCD Display with TDDI... -
