New 12.3 Inch TFT LCD 720*1920 IPS Bar Display for Smart Home
The LTK123FTHLM24-V0 is a 12.3-inch IPS LCD module designed for advanced industrial and smart display applications. With a high-resolution of 720×1920 and a brightness of 450 cd/m², it delivers sharp visuals and clear readability. The IPS viewing technology ensures consistent image quality from all angles, while the MIPI interface supports fast and efficient data transmission. Built with a normally black, transmissive display mode, this module offers high contrast and modern visual appeal. Its slim profile and wide active area make it ideal for control panels, automotive displays, and HMI systems.
- Product Details
Size(inch) | 12.3 |
Part Number. |
LTK123FTHLM24-V0 |
Display Mode |
Transmissive/Normally Black/IPS |
Viewing Direction | All |
Resolution |
720*1920 |
Interface |
MIPI |
Luminance (cd/m²) |
450 |
Active Area (mm) |
109.51(W)×292.03(H) |

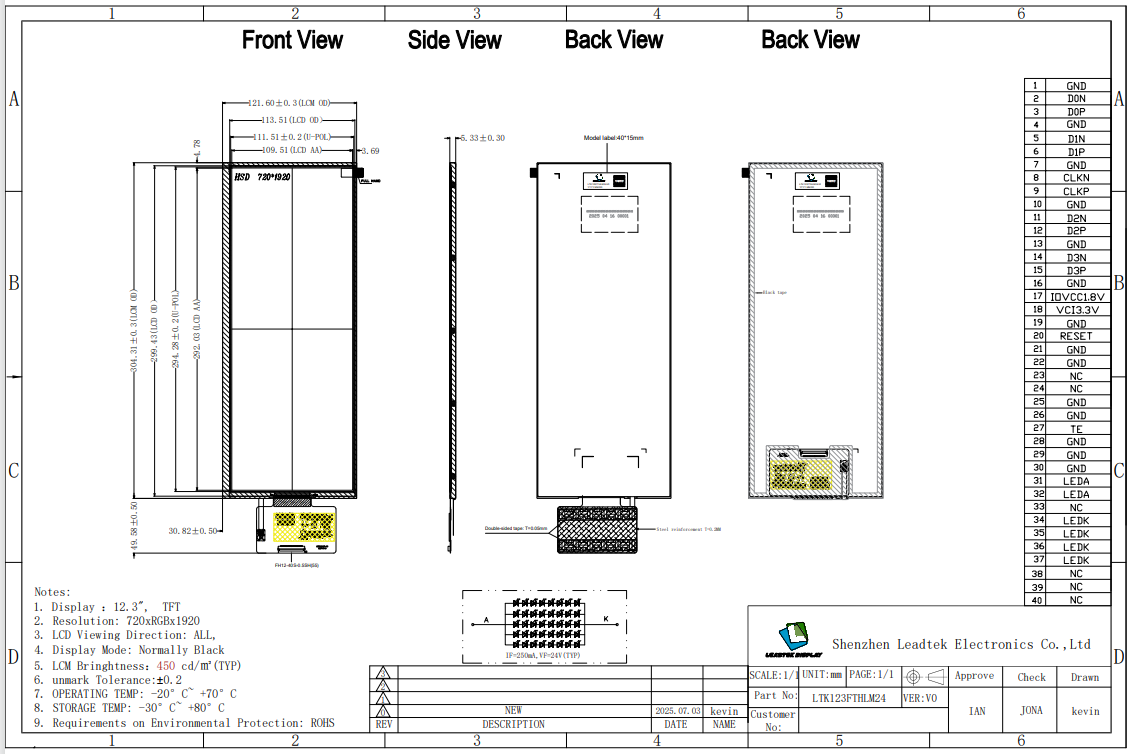

LCM Outline Dimension (mm) |
121.60(W)×304.31(H)×9.40(T) |
Operating Temp |
-20~+70℃ |
Storage Temp |
-30~+80℃ |
