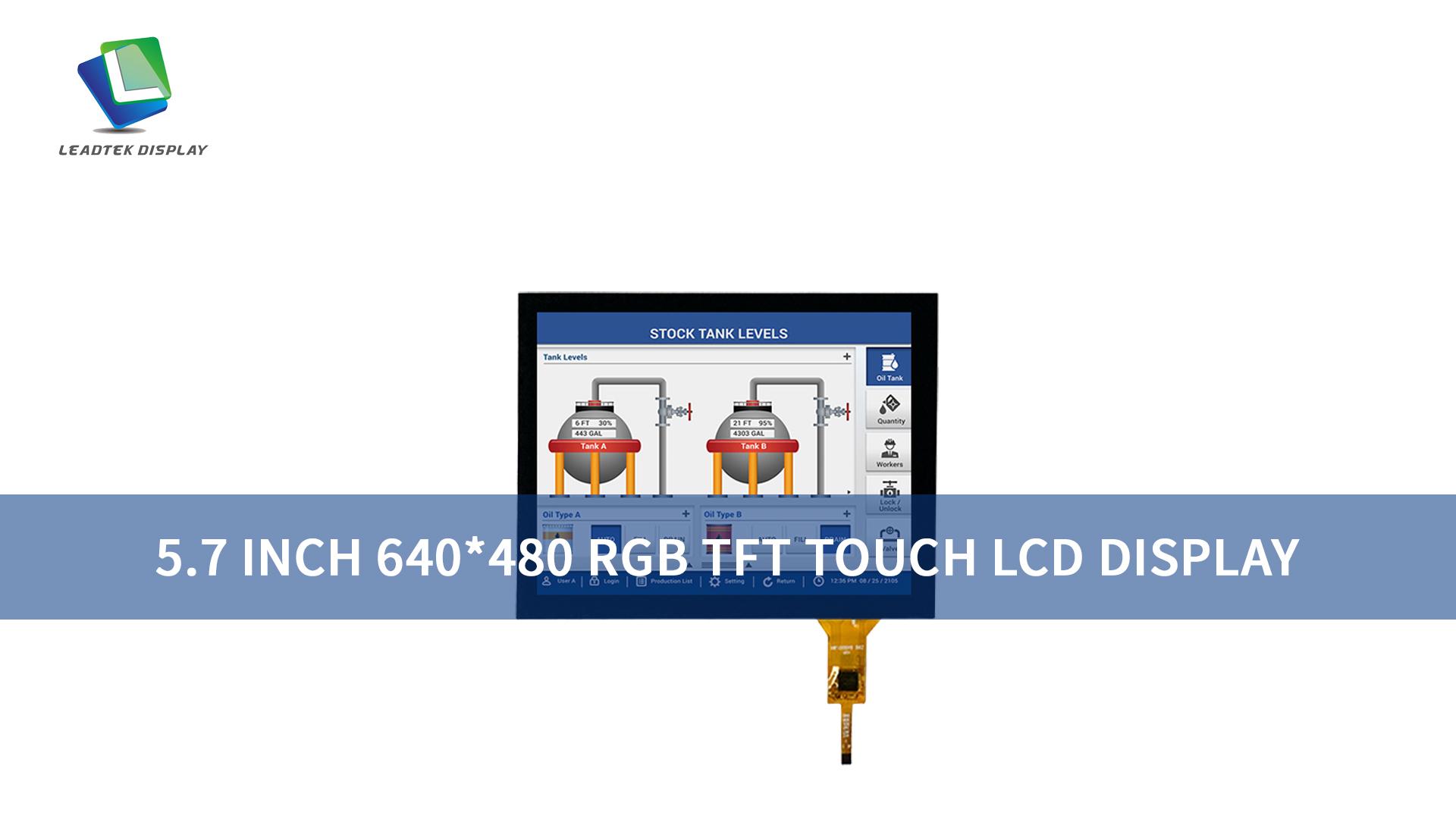

5.7 Inch 640*480 IPS TFT Touch Display with RGB Interface
The LTK057FTBCT12-V0 is a 5.7-inch IPS TFT LCD module with a resolution of 640×RGB×480 and a brightness of 500 cd/m², providing clear, wide-angle viewing for advanced human–machine interfaces. Featuring a 24-bit RGB display interface and integrated capacitive touch, it offers smooth and responsive operation in compact system designs. With an operating temperature range of -30°C to +80°C, this display is well-suited for smart industrial PLC controllers, motor drive systems, and medical equipment that require reliable performance and stable visibility in harsh environments.
- Product Details
| Size(inch) | 5.7 |
| Mode |
LTK057FTBCT12-V0 |
|
Display Mode |
IPS |
|
Resolution |
640*480 |
|
Interface |
24bit-RGB |
|
Luminance (cd/m²) |
500 |
|

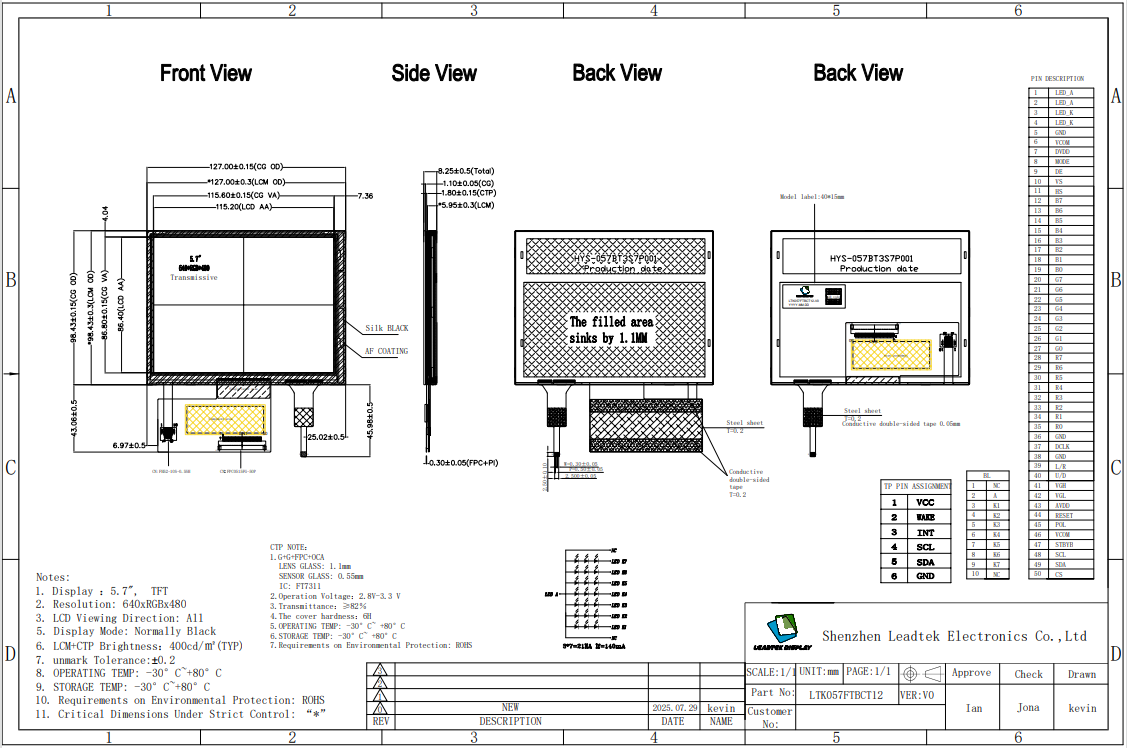

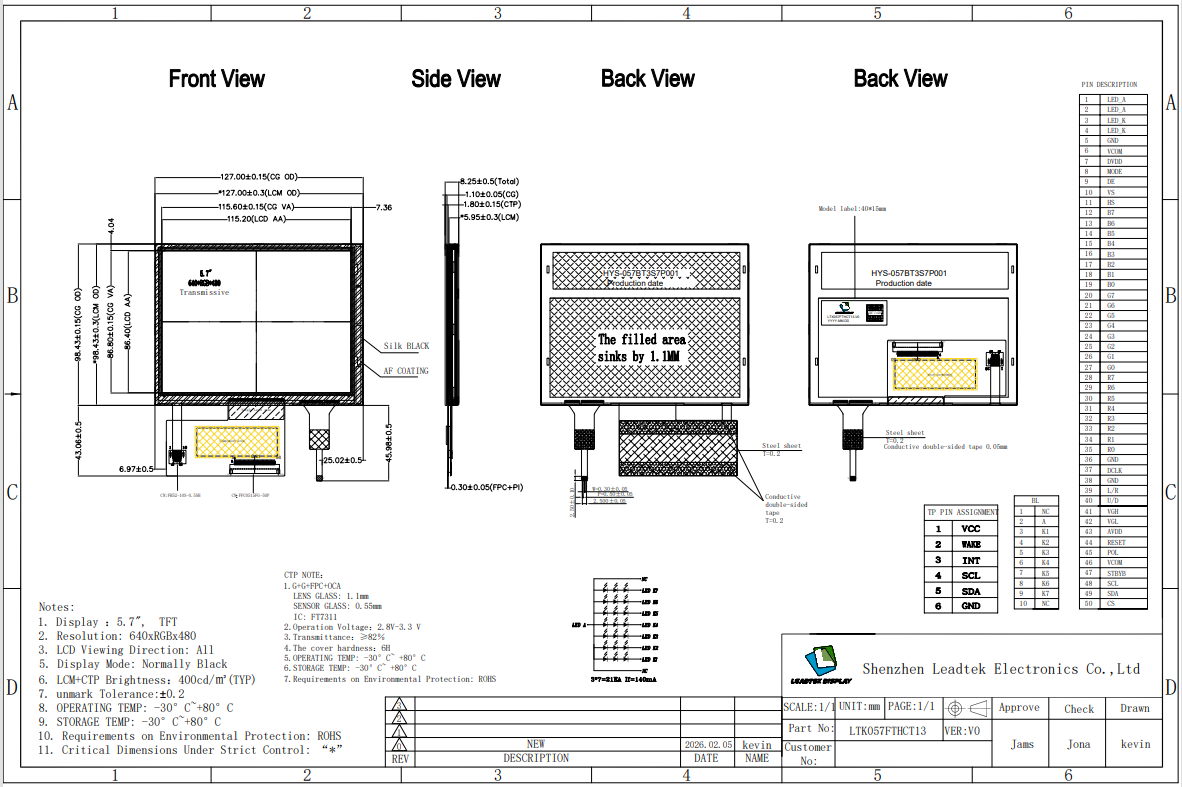

Active Area(mm) |
115.20(W)×86.40(L) |
|
Outline Dimension(mm) |
127.00(W)×98.43(L)×8.25(T) |
|
Touch Screen |
CTP |
|
CTP Type |
G+G |
| CTP Driver IC | FT7311 |
|
Operating Temp |
-30~+80℃ |
|
Storage Temp |
-30~+80℃ |
