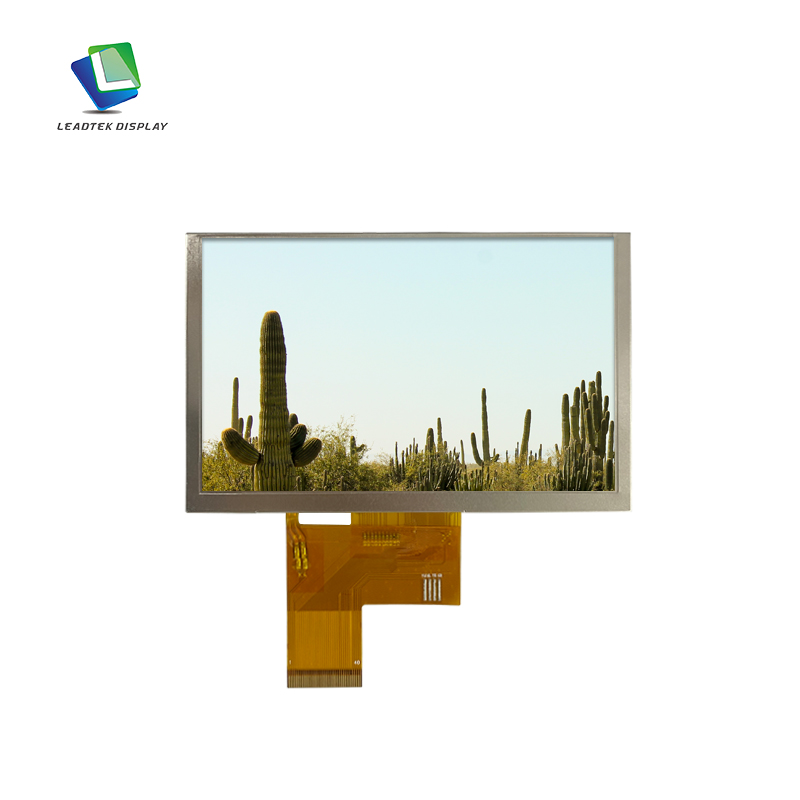

5.0 inch 800*480 IPS LCD Standard Color Display

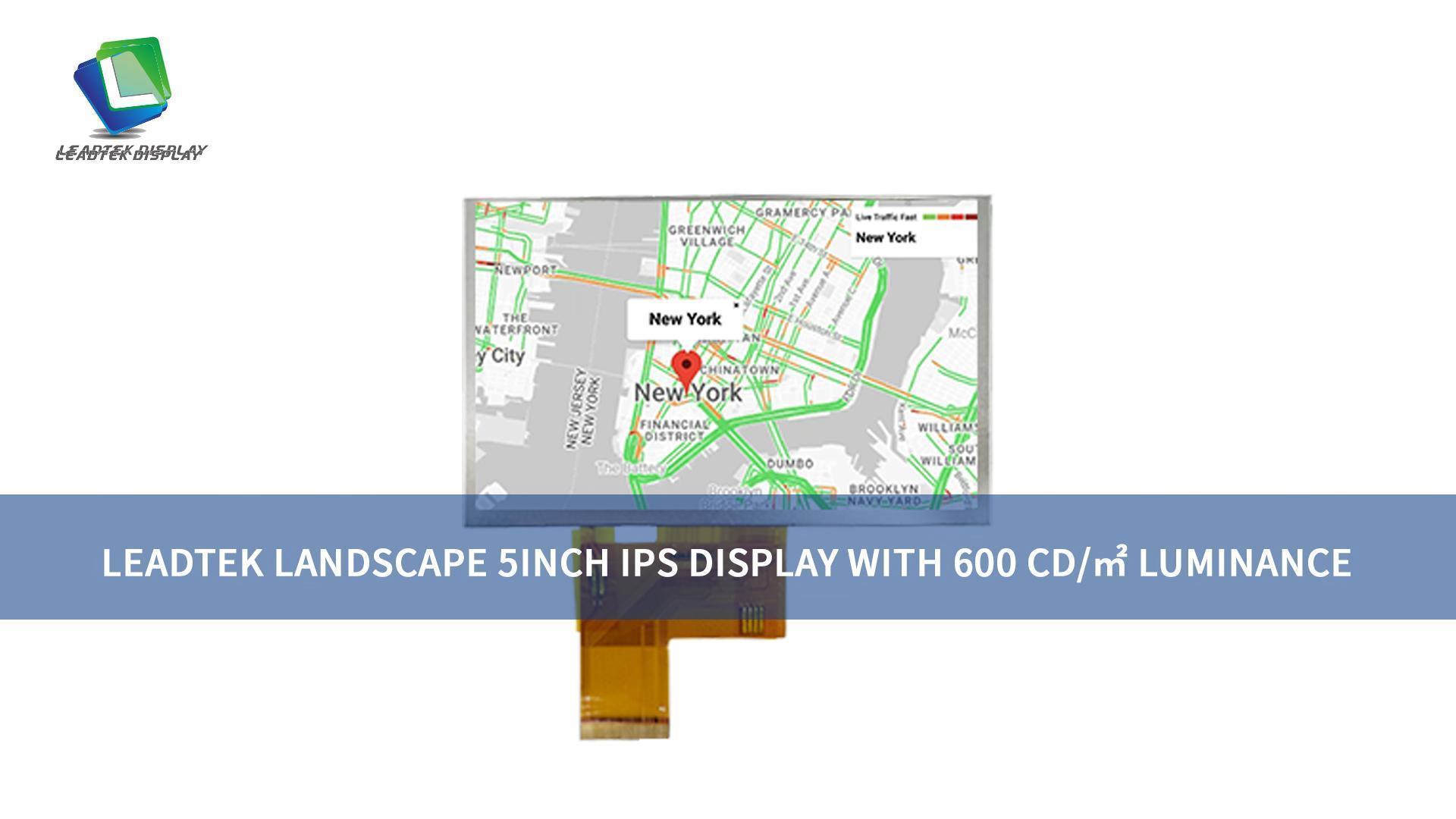

5.0-inch Landscape IPS Display, model LTK050WVBLM17-V3. Features a resolution of 800*480 for sharp, detailed visuals. Active area of 108.00*64.80 mm and overall dimensions of 120.70*75.80*2.80 mm. Equipped with an RGB interface and 600 cd/㎡ luminance for bright and clear images. Ideal for Smart Transportation applications.
- Product Details
| Moudle no | LTK050WVBLM17-V3 |
| Resolution | 800*480 |
| Viewing Angle | IPS |

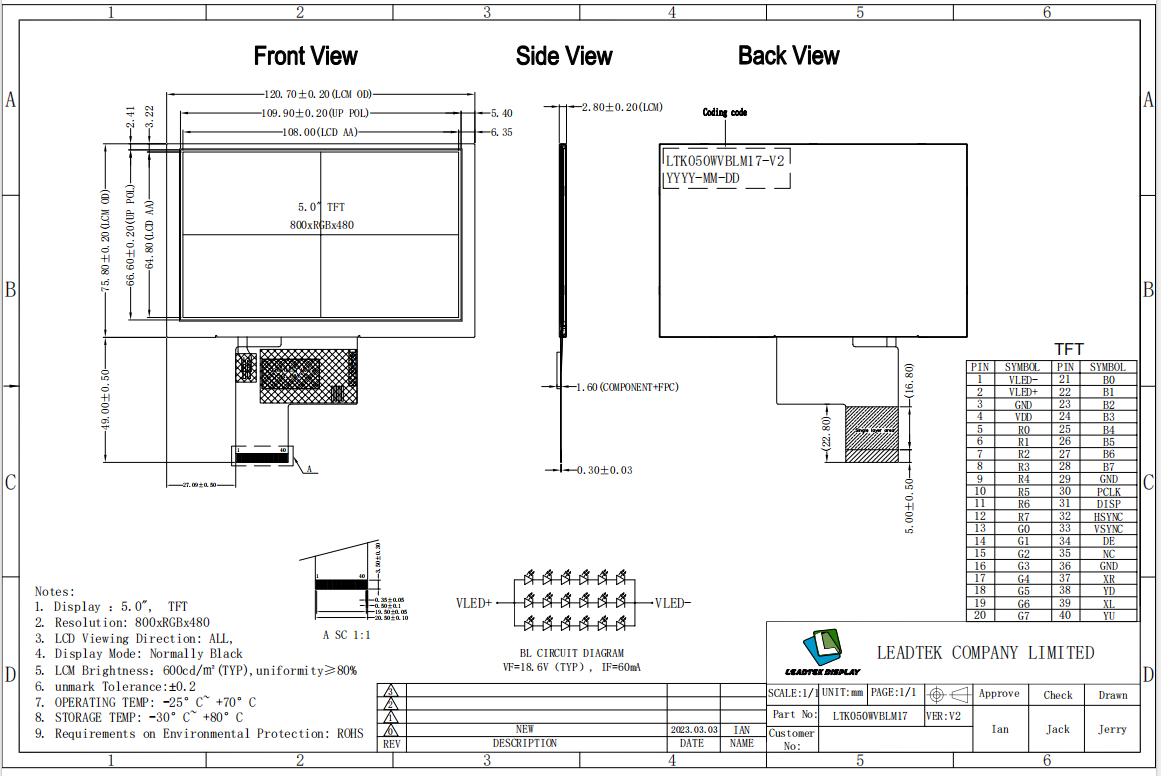

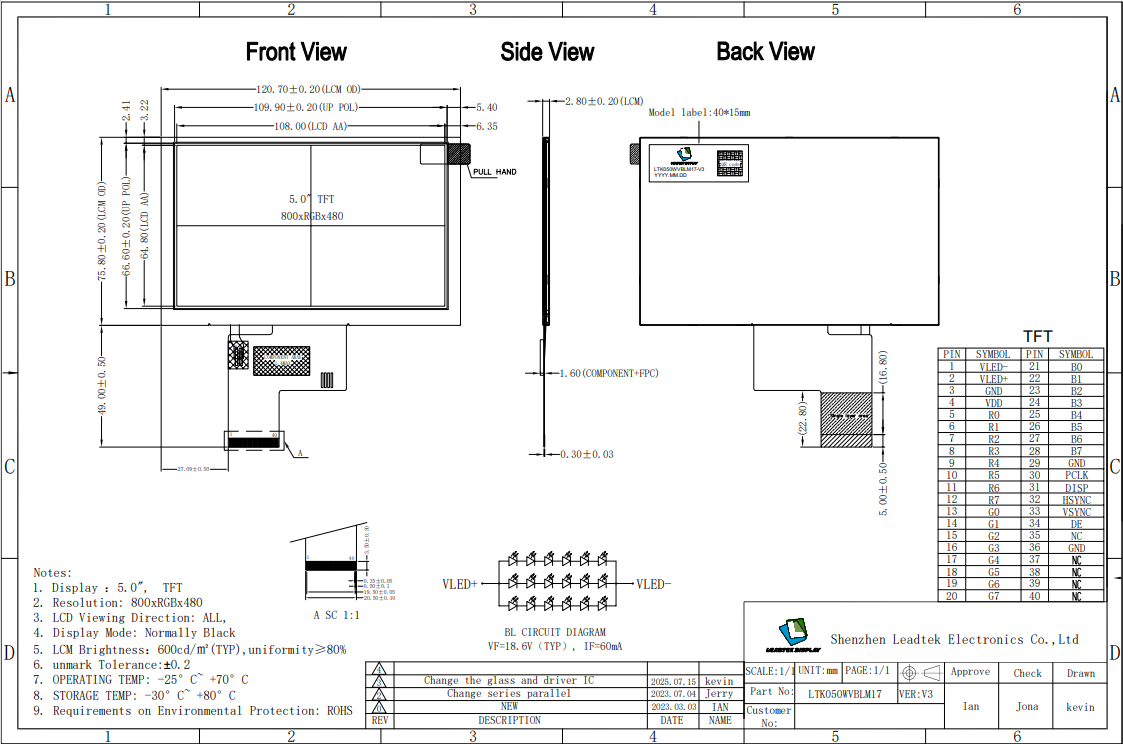

| Active Aera (mm) | 108.00*64.80 |
| Outline Dimension (mm) | 120.70*75.80*2.80 |
| Interface | RGB |
|
Expandable interface |
LVDS |
| Luminance | 600 |
|
Module IC Model |
ST7265 |
| Operating Temp | -25~+70℃ |
| Storage Temp | -30~+80℃ |
