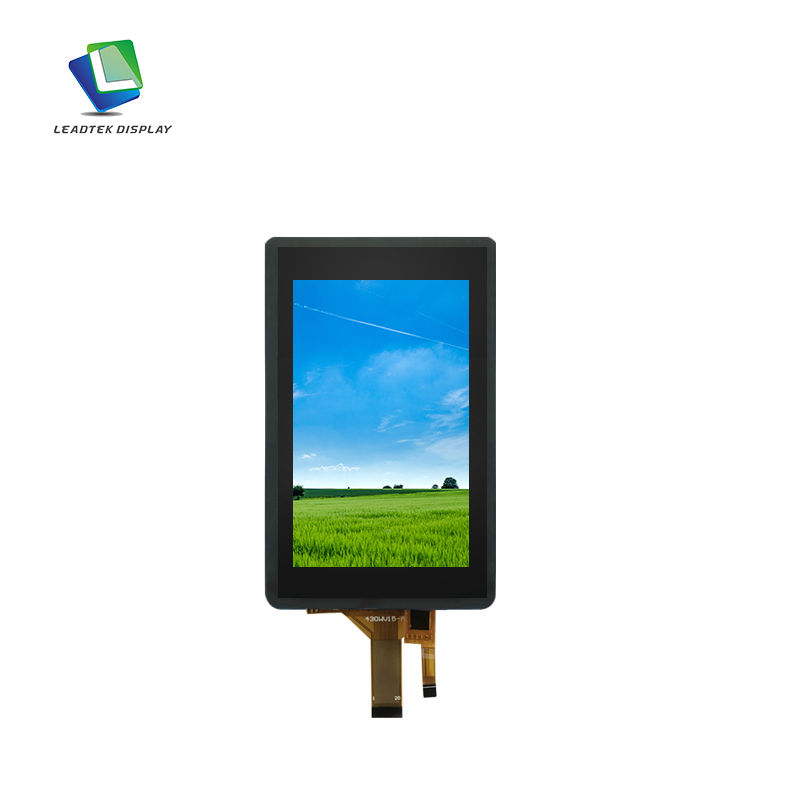

5 inch TFT LCD 480*854 Resolution 2 lane MIPI with Capacitive Touch panel
Designed for smart home systems, this 5.0-inch IPS display delivers crisp 480×854 resolution with 450 cd/m² brightness, ideal for control panels and interactive devices. It features an MIPI interface (expandable to SPI+RGB) and integrates a capacitive touchscreen (G+G structure) with GT1151QM IC (I²C interface) for seamless user input. The compact CTP+LCM module (82.43×140.45×4.25 mm) includes an ST7701S driver IC and operates reliably in -20°C to +70°C, perfect for smart thermostats, security hubs, and home automation interfaces.
- Product Details
|
Part Number. |
LTK050FWHCT10-V0 |
|
Size (inch) |
5.0 |
|
Resolution |
480*854 |
|
Display Mode |
IPS |
|
Luminance (cd/m²) |
450 |
| Interface | MIPI |
|
Expandable Interface |
SPI+RGB |
|
Active Area(mm) |
61.63*109.65 |
|

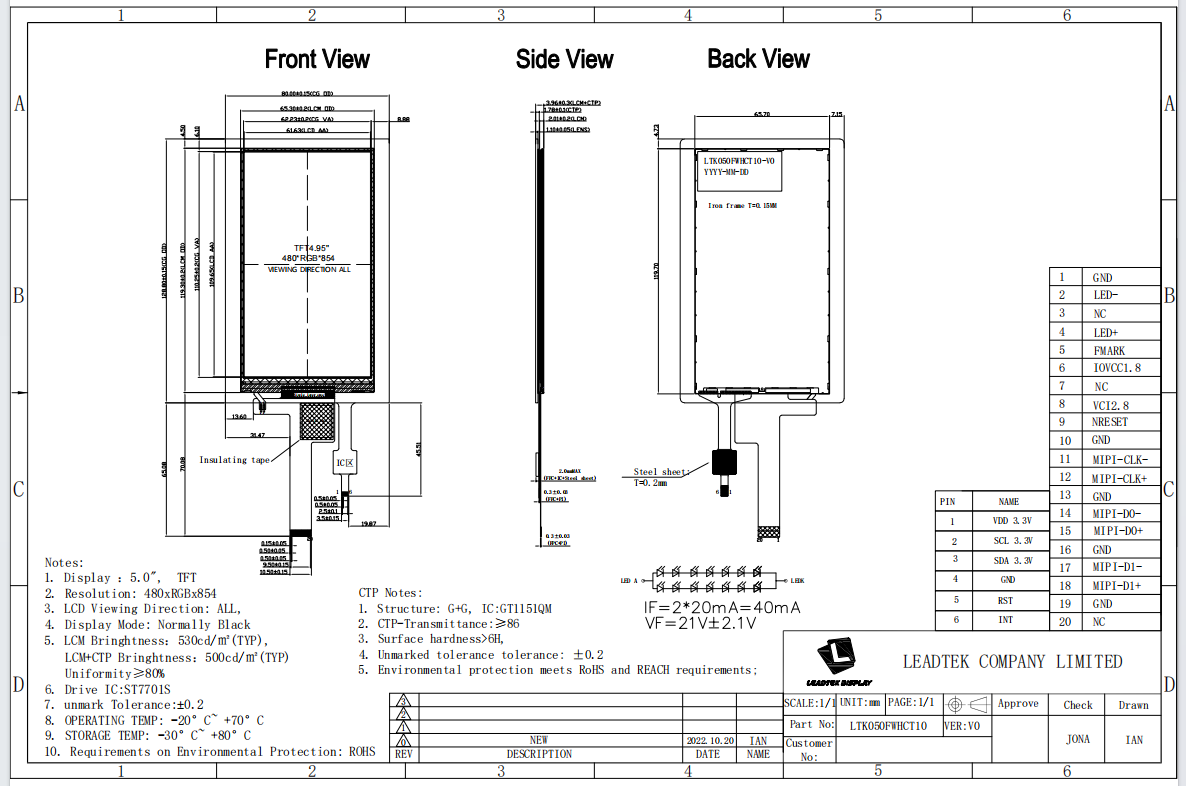

CTP+LCM Module Size（mm) |
82.43*140.45*4.25 |
|
Driver IC |
ST7701S |
| Touch screen | CTP |
|
Touch IC |
GT1151QM |
|
Touch structure |
G+G |
|
TP Interface |
IIC |
|
Operating Temp |
-20℃~ +70℃ |
|
Storage Temp |
-30℃~ +80℃ |
