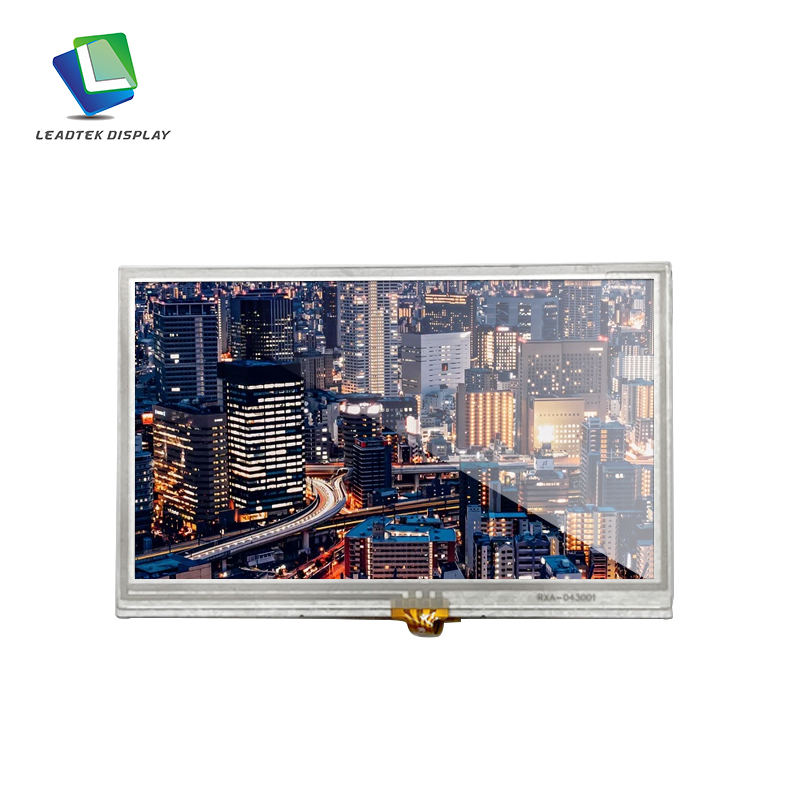

4.3 inch 480*272 TFT LCD display with RTP Touchscreen
The LTK430WQ12B-T-V1 is a 4.3-inch IPS touchscreen display ideal for smart industrial applications. With a resolution of 480x272 and 450 cd/m² brightness, it provides clear visuals in various lighting conditions. Featuring a 4-wire resistive touch panel (RTP) for precise interaction, it operates reliably in environments ranging from -20°C to +70°C. Compact and durable, this display integrates easily with an RGB interface and withstands storage temperatures from -30°C to +80°C, making it perfect for HMI systems and control panels.
- Product Details
Product Parameters:
| Part Number. |
LTK430WQ12B-T-V1 |
| Size | 4.3” |
| Display Mode | IPS |
|
Resolution |
480*272 |
| Interface | RGB |
| Luminance (cd/m²) | 450 |
| Active Area(mm) |
95.04*53.86 |

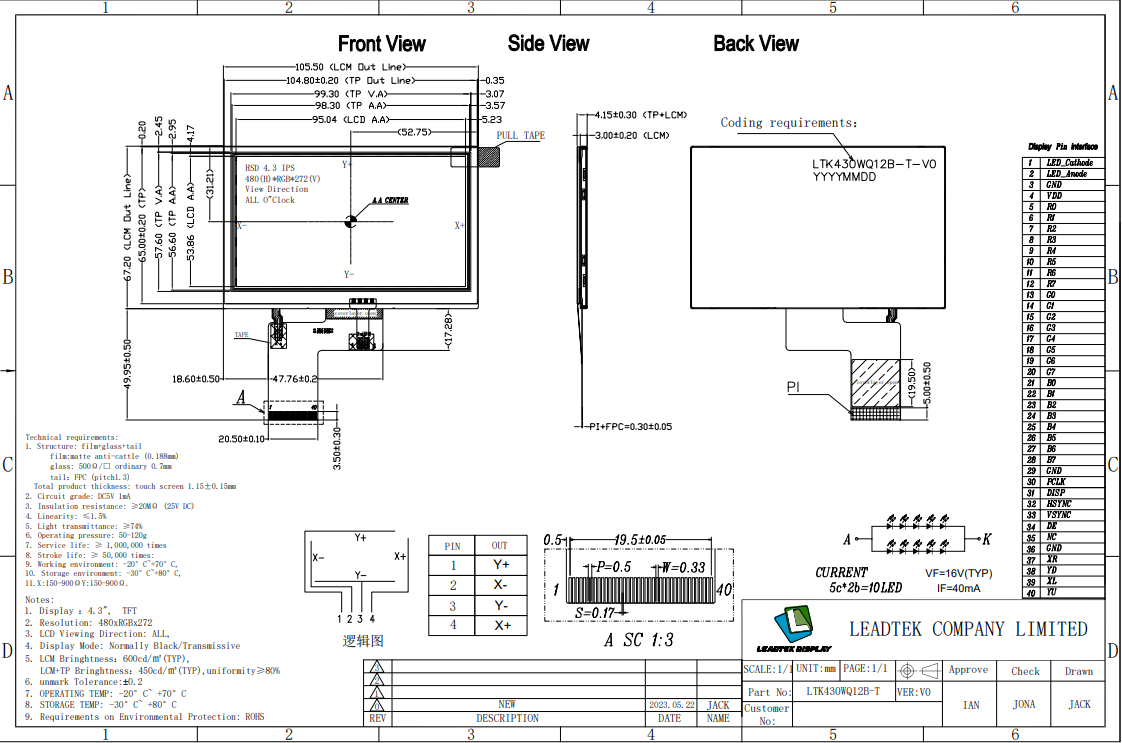

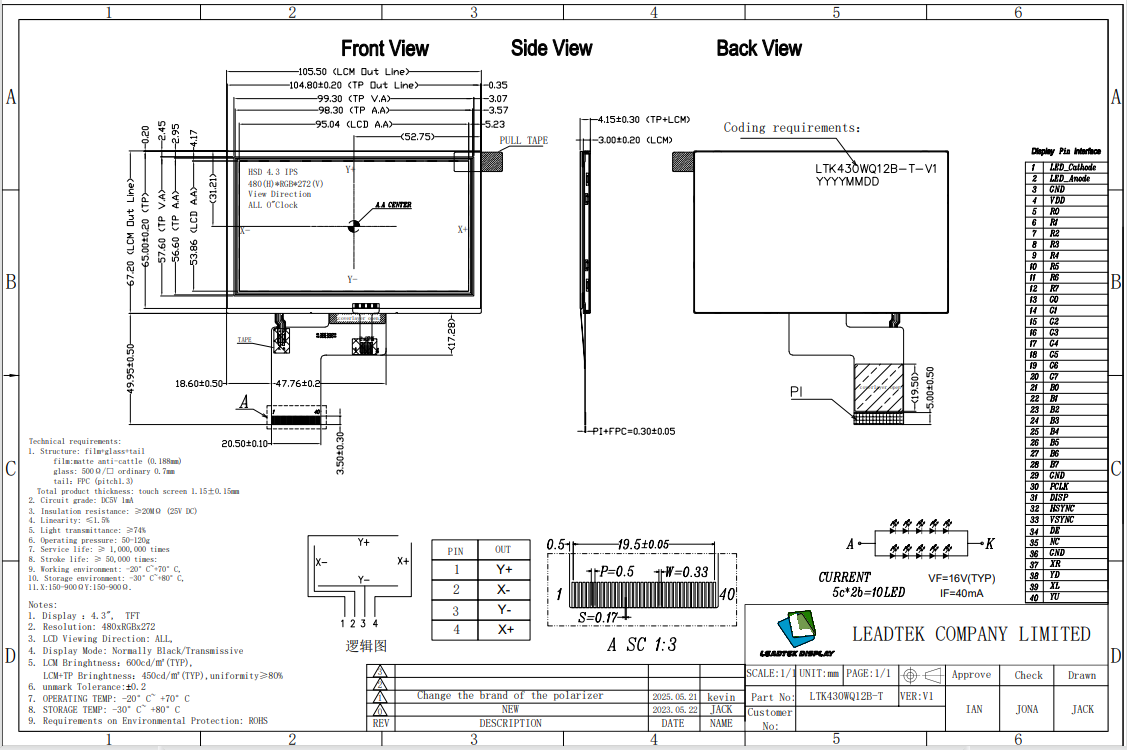

| LCM+RTPOutline Dimension(mm) | 104.80*65.00*4.15 |
| Touch Screen |
RTP |
| TP Structure |
PG |
| TP Interface |
4L |
|
Operating Temp |
-20~+70℃ |
|
Storage Temp |
-30~+80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
