TFT LCD 3.97 Inch IPS Display,480*800 Resolution,MIPI Interface for Laboratory Equipment
LTK040WVBLM10-V0 is a transmissive type color active matrix TFT LCD that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 3.97”contains 480*800 dots. Its Active Area is 51.84*86.40mm, the module brightness is 350nits and it is equipped with a MIPI interface

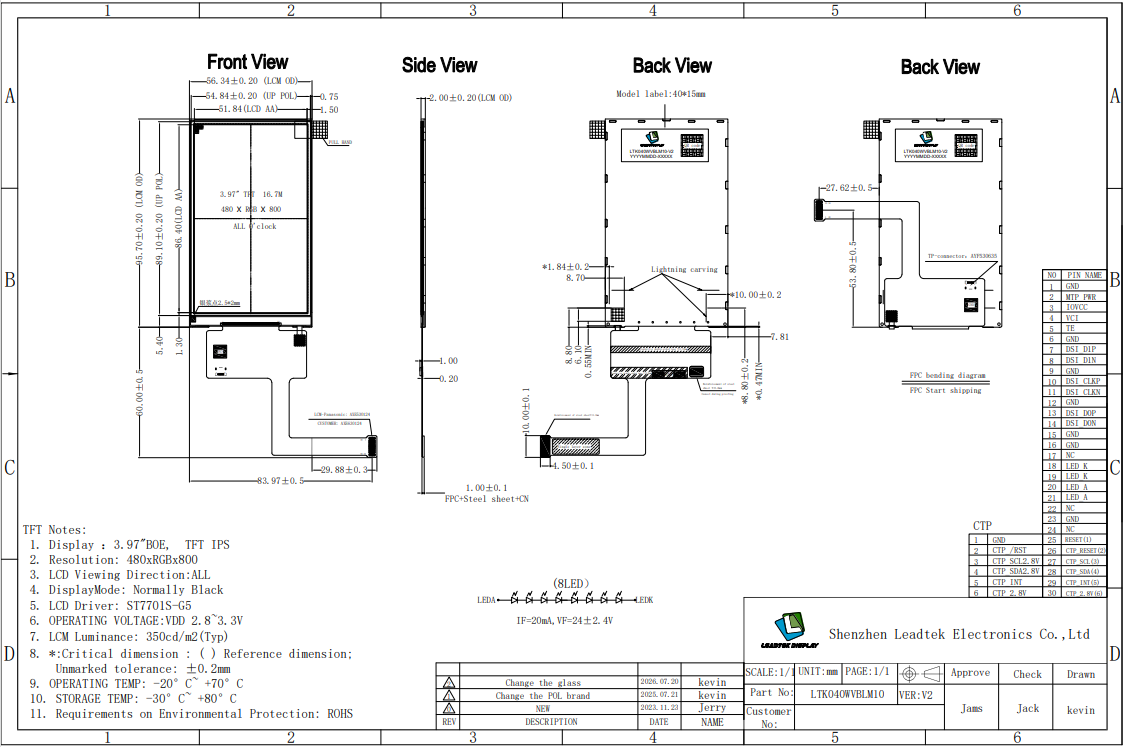

- Product Details
| P/N | LTK040WVBLM10-V0 |
| Type of LCD panel | 3.97" TFT LCM |
| View angle | IPS |
| Cell Type | BOE |
| Interface | MIPI |
| Resolution | 480*800 |
| Brightness | 350 |
| Driver IC | ST7701S |
| LCM Dimension(mm) | 56.34*95.70*2.00 |
| LCM Active Area(mm) | 51.84*86.40 |
| Operating Temperature | -20-70℃ |
| Storage Temperature | -30-80℃ |
| Application | Laboratory Equipment |
| The general tolerance is ±0.2mm | |
| All materials in the figure are RoHS compliant. | |
