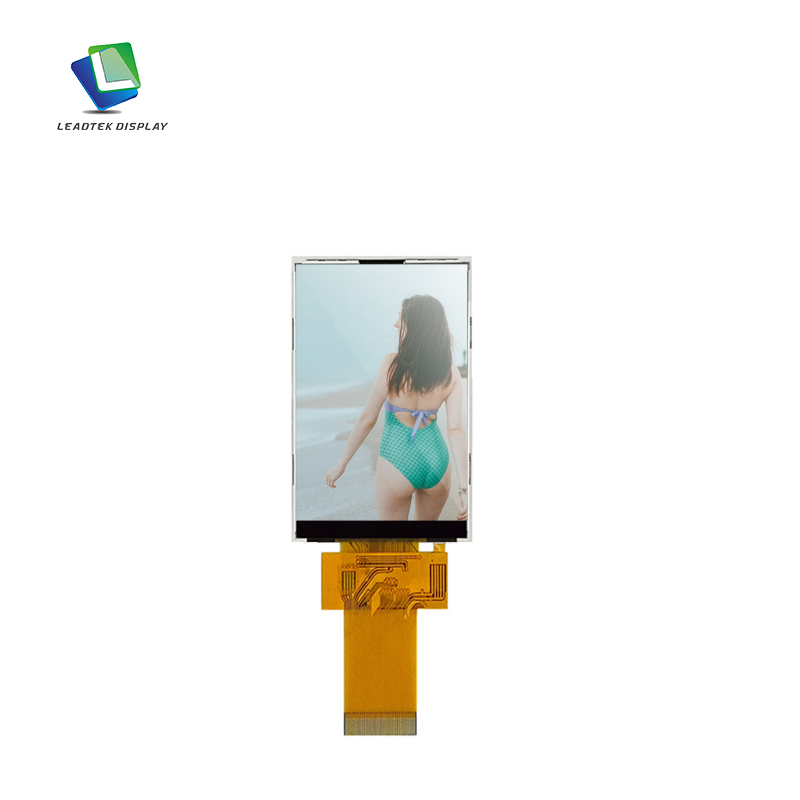

1.77 inch 128*160 TFT LCD Module with SPI interface
This 1.8-inch TN LCD display module is designed for high-performance and energy-efficient applications in smart home systems. With a resolution of 128x160 pixels, it ensures clear and crisp visual output, making it ideal for use in user interfaces, control panels, and status displays within smart home devices.
- Product Details
|
Part Number. |
LTK018FTXLM13-V0 |
|
Size(inch) |
1.8 |
|
Display Mode |
TN |
|
Resolution |
128*160 |
|
Luminance (cd/m²) |
400 |
|
Interface |
SPI |
|
Expandable interface |
MCU |
|
Module IC Model |
ST7735S |
|

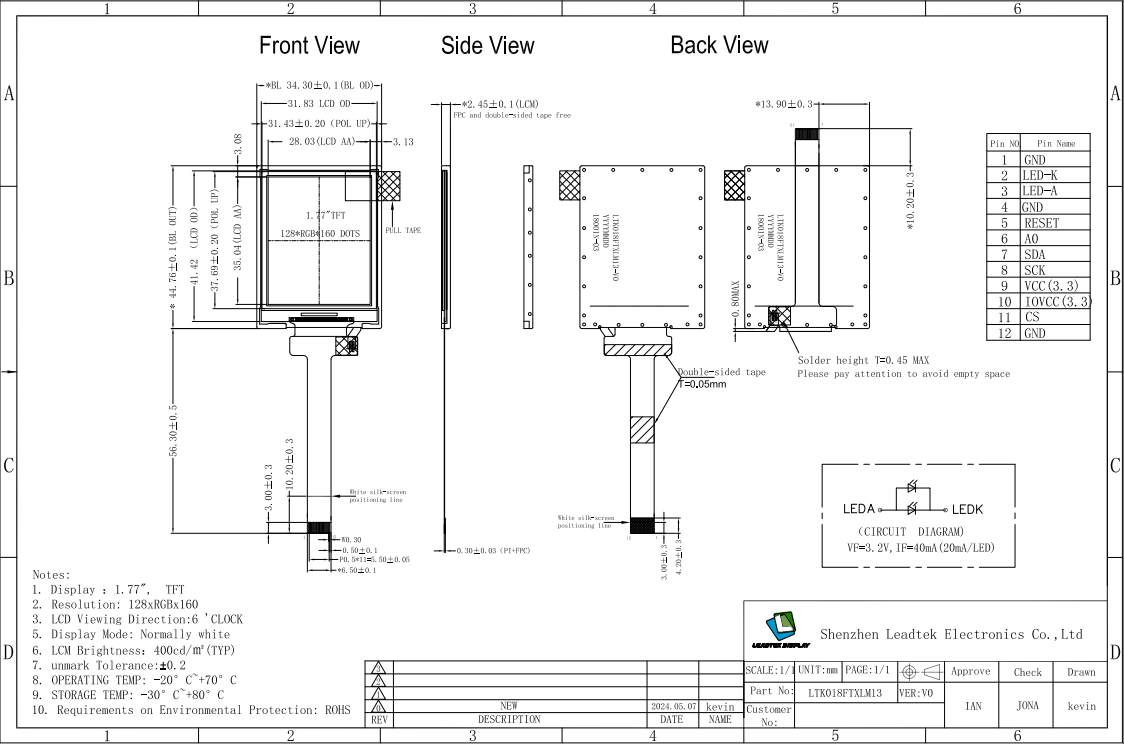

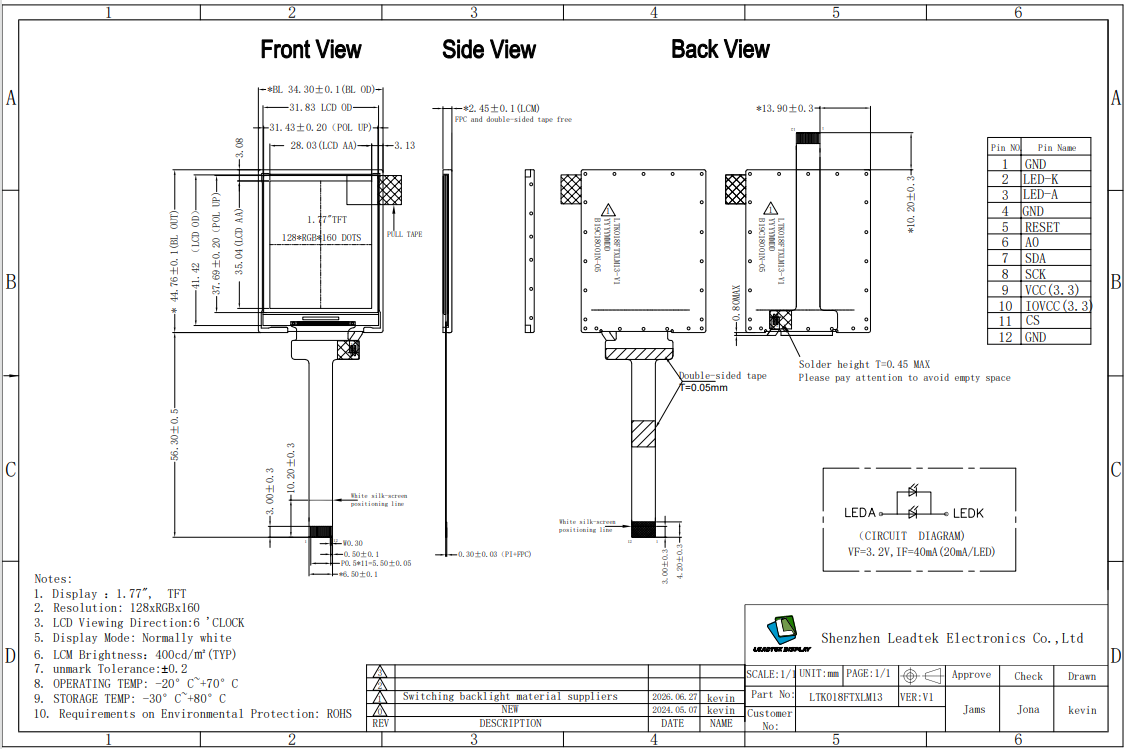

Outline dimension (mm) |
34.3*44.76*2.45 |
|
Active area (mm) |
28.03*35.04 |
|
Operating Temp |
-20~+60℃ |
|
Storage Temp |
-20~+70℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
