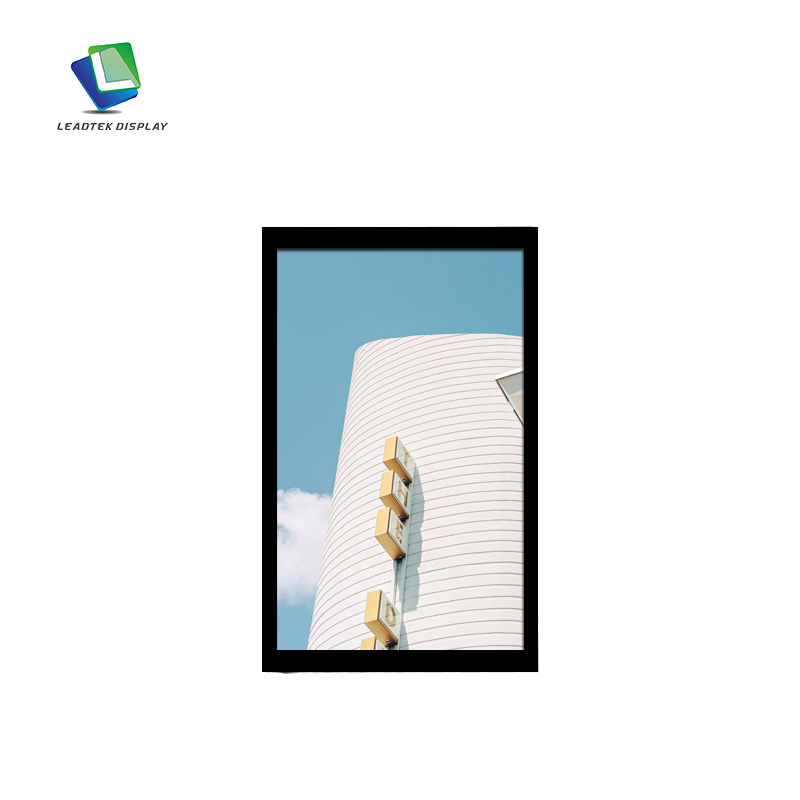

10.1 inch 1200(RGB)*1920 IPS LCD screen for Smart Home application
The LTK101FHNCT19-V0 is a10.1-inch IPS LCD display designed for smart home applications, featuring a 1200x1920 resolution for sharp and vibrant visuals. It offers a 300 cd/m² brightness, ensuring clear visibility in indoor environments. The display supports a4-lane MIPI interface for seamless integration and precise touch control with aG+G capacitive touch panelpowered by the GT9271 driver IC. Built for reliability, it operates in temperatures ranging from-20°C to +60°C, making it ideal for smart home control panels, security systems, and home automation hubs.
- Product Details
Model number | LTK101FHNCT19-V0 |
Size(inch) | 10.1 |
Resolution | 1200*1920 |
Viewing Direction | IPS |
Interface |
MIPI(4lane) |
Luminance (cd/m²) |
300 |
Outline Dimension (mm) |
146.80*239.37*4.23 |
LCDActive Area(mm) |
135.36*216.57 |
Driver IC |
OTA7290B*2 |
Touch Screen | CTP |
CTP Type | G+G |
CTP Driver IC |
GT9271 |
CTP Interface | IIC |
Operating Temperature |
-20~+60℃ |
Storage Temperature | -30~+70℃ |
Get A Quote
Related Products
-
10.1 inch TFT display module, 1200X1920 resolution,MIPI interface,...
-
10.1 inch 1920*1200 TFT LCD Module with high brightless 1000nits
-
RGB Interface 7 inch 1024*600 Resolution TFT LCD Display for...
-
RGB Interface 800*480 Resolution 5 Inch Wide Temperature tft lcd...
-
3.5 Inch 320*240 TFT LCD Modules with RGB Interface
-
12.1'' 1280*800 Resolution TFT LCD display Module with 600 nits
-

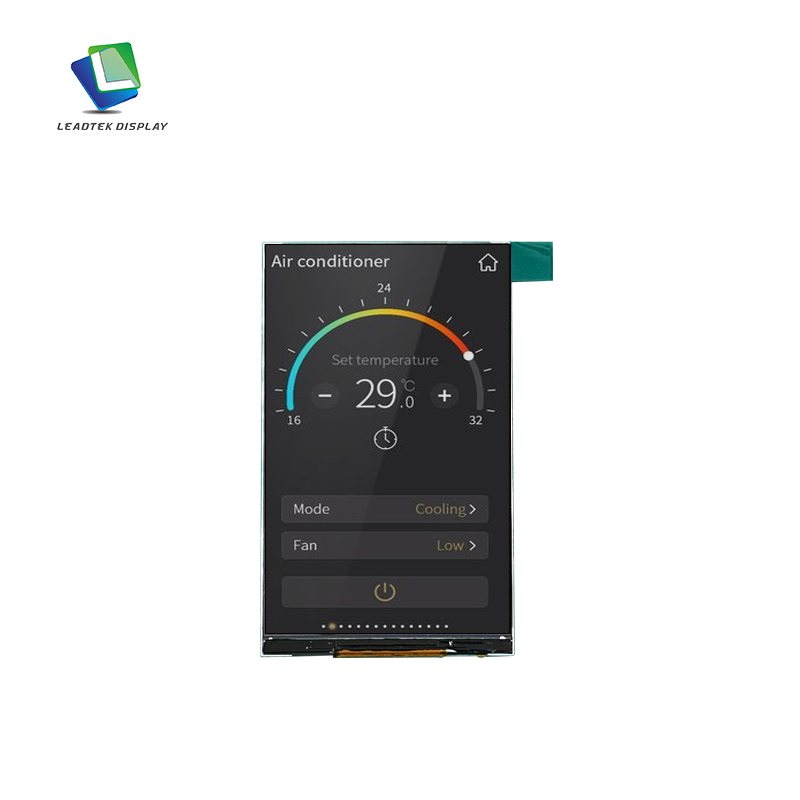

Vertical 4.3-inch TFT LCD, resolution 480*800, MIPI interface,...
-
