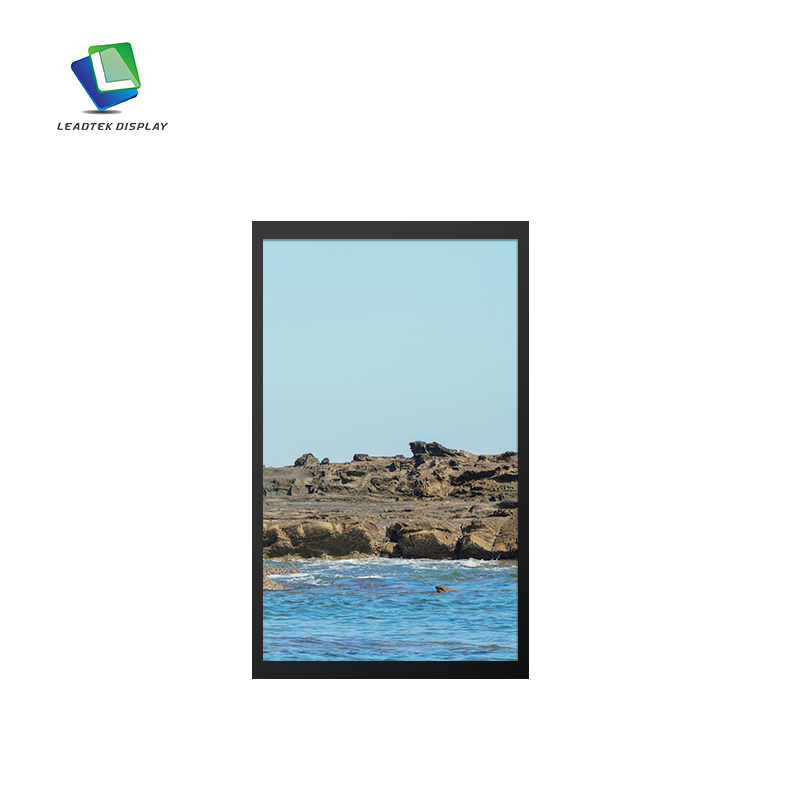

10.1 Inch TFT LCD Touch Screen, 1200*1920 IPS Panel MIPI Interface
The LTK101FHNCT16-V2 is a 10.1-inch IPS display with a 1200×1920 resolution and 520 cd/m² brightness, ensuring clear and vibrant visuals. It features a MIPI interfaceand a GG-structured capacitive touch panel (CTP) with a GT9271 driver IC via IIC interface. With awide operating temperature range (-20℃ to +60℃), it is ideal for smart transportation applications.
- Product Details
| Module No |
LTK101FHNCT16-V2 |
|
Size(inch) |
10.1 |
|
Display Mode |
IPS |
|
Resolution |
1200*1920 |
| Interface | MIPI |
|
Luminance (cd/m²) |
520 |
|

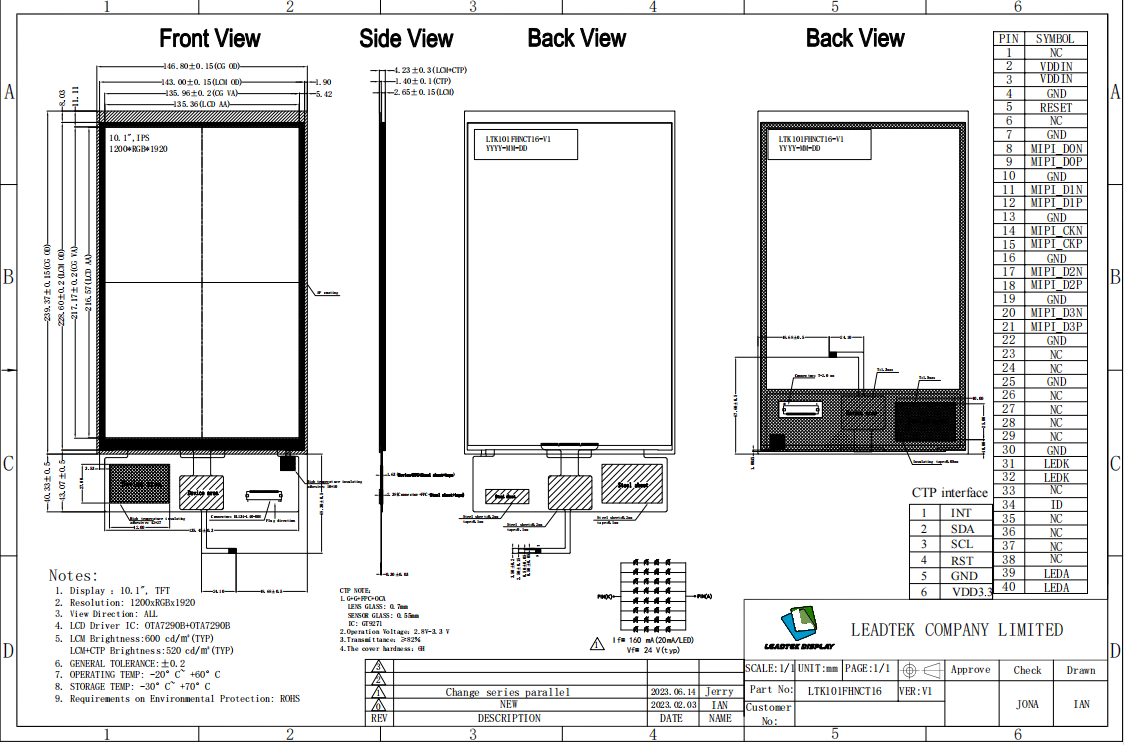

Outline Dimension(mm) |
146.80*239.37*4.23 |
|
Active Area(mm) |
135.36*216.57 |
|
Touch Screen |
CTP |
|
CTP Type |
GG |
|
CTP Driver IC |
GT9271 |
|
CTP Interface |
IIC |
|
Operating Temp |
-20~+60℃ |
|
Storage Temp |
-30~+70℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
