High-Resolution 480x1280 MIPI LCD Display
high-resolution LTK069WXBCT11-V0 LCD display. Featuring a robust 480 RGB (H) x 1280 (V) pixel resolution and MIPI interface, this display ensures precise image reproduction. Its compact design measures 60.22mm (H) x 160.59mm (V) and 6.28mm in depth (67.00mm x 181.40mm overall dimensions). Suitable for industrial and consumer electronics applications, it operates reliably in temperatures from -20℃ to +70℃ (-30℃ to +80℃ storage).
- Product Details
PRODUCT PARAMETER
Size (inch)
7.0
Part Number.
LTK070B40FPD-QC04-V4
Display Mode
IPS
Resolution
1024*RGB*600
Interface
MIPI
Luminance (cd/m²)
700
Active Area (mm)
154.21*85.92
Outline Dimension (mm)
187.60*118.60*5.20
Touch Screen
CTP
Operating Temp
-20℃~ +70℃
Storage Temp
-30℃~ +80℃

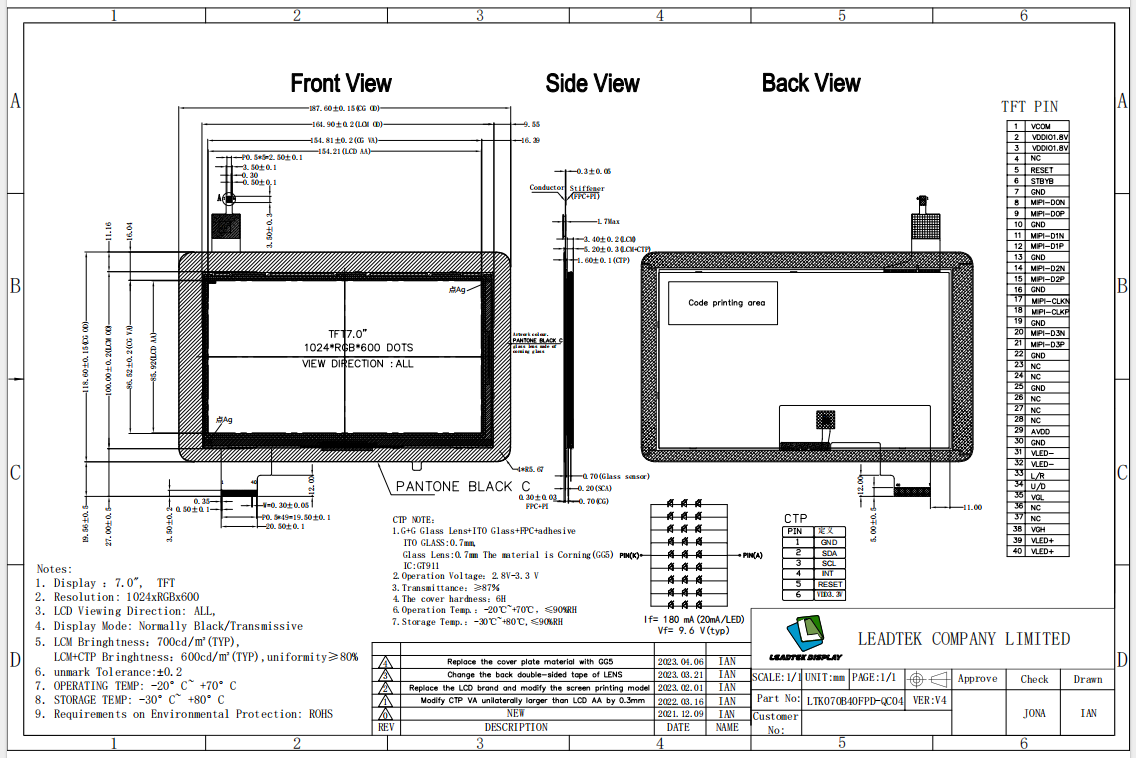

PRODUCT DRAWING
