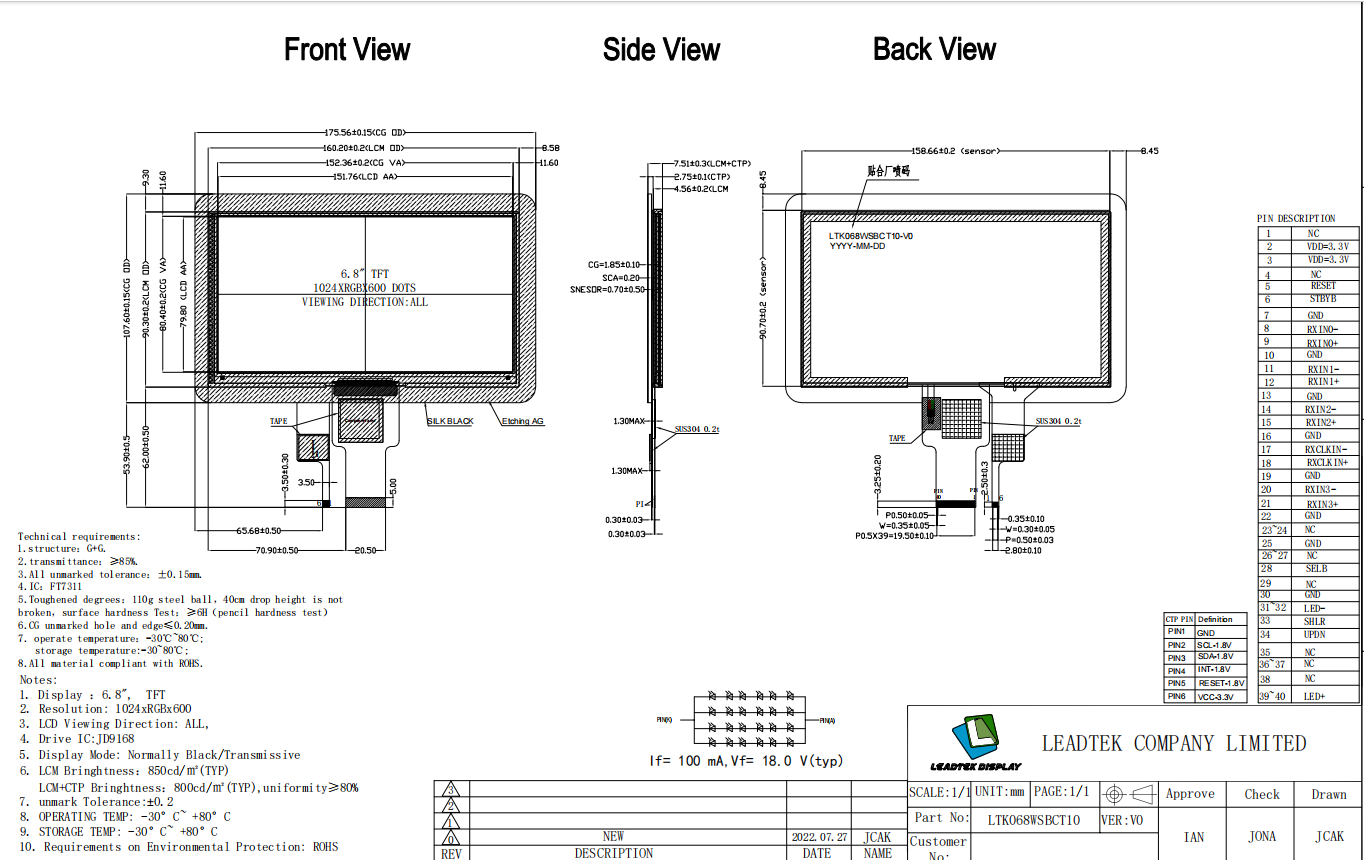

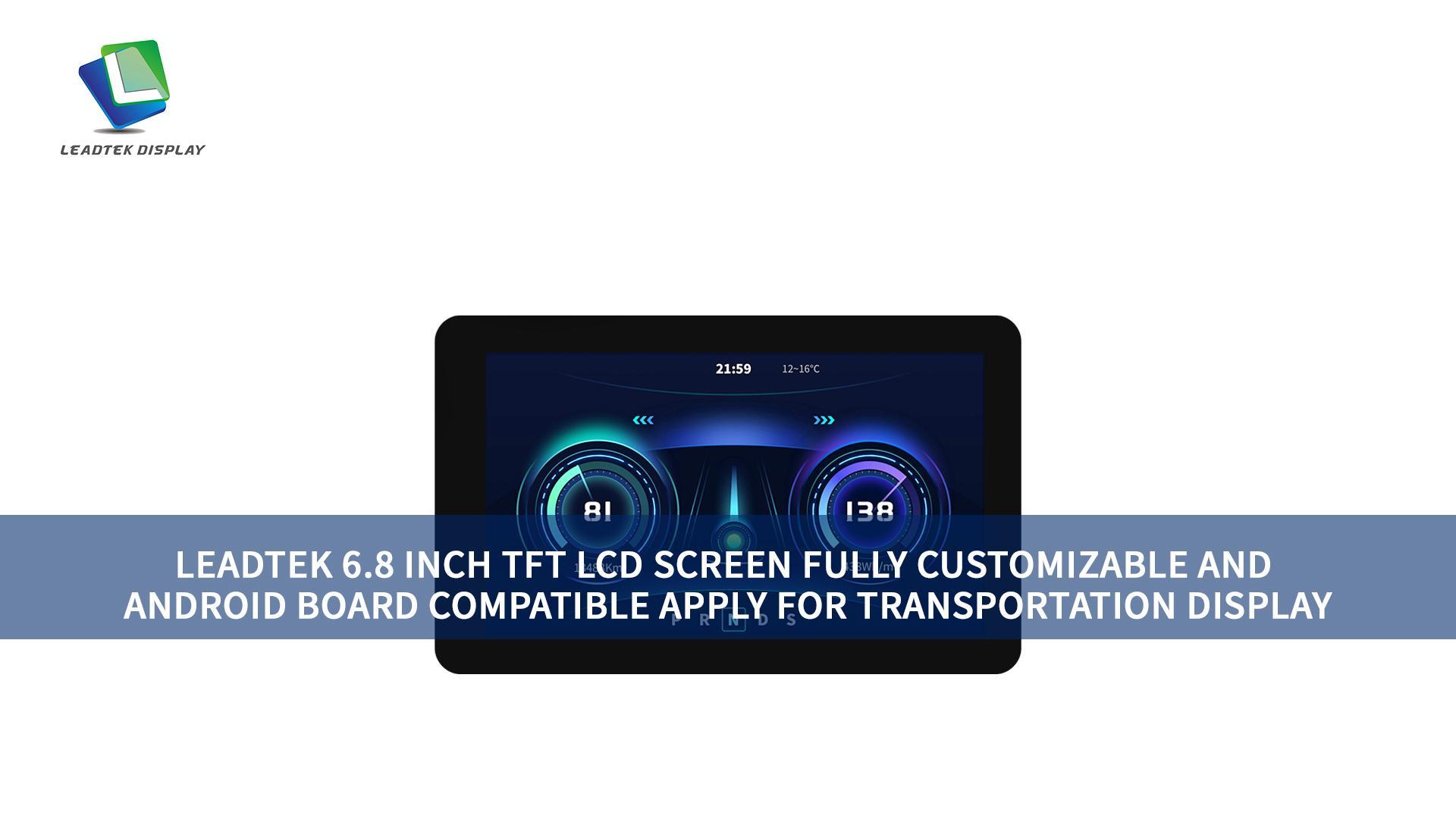

6.8 inch 1024*600 IPS TFT Rugged Touch Display
LTK068WSBCT10-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT LCD and a driving circuit.This TFT LCD has a 6.8 inch diagonally measured active display area with (1024*600 vertical pixel) resolution.(Ju)
This model is composed of a TFT LCD and a driving circuit.This TFT LCD has a 6.8 inch diagonally measured active display area with (1024*600 vertical pixel) resolution.(Ju)
- Product Details
| Module No |
LTK068WSBCT10-V0 |
| Size(inch) | 6.8 |
|
Resolution |
1024*600 |
|
Display Mode |
IPS |
|
Luminance (cd/m²) |
800 |
| Interface |
LVDS |
|
Expandable interface |
MIPI/RGB |
|
Active Area (mm) |
151.76*79.80 |
|
Outline Dimension (mm) |
175.56*107.60*7.51 |
| Touch Screen | CTP |
|
Touch screen structure |
GG |
|
Touch screen IC model |
FT7311 |
|
Touch screen interface |
IIC |
|
Operating Temp |
-30~+80℃ |
|
Storage Temp |
-30~+80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
Related Products
-
15.6" Full HD High Brightness IPS Rugged Display for Smart... -

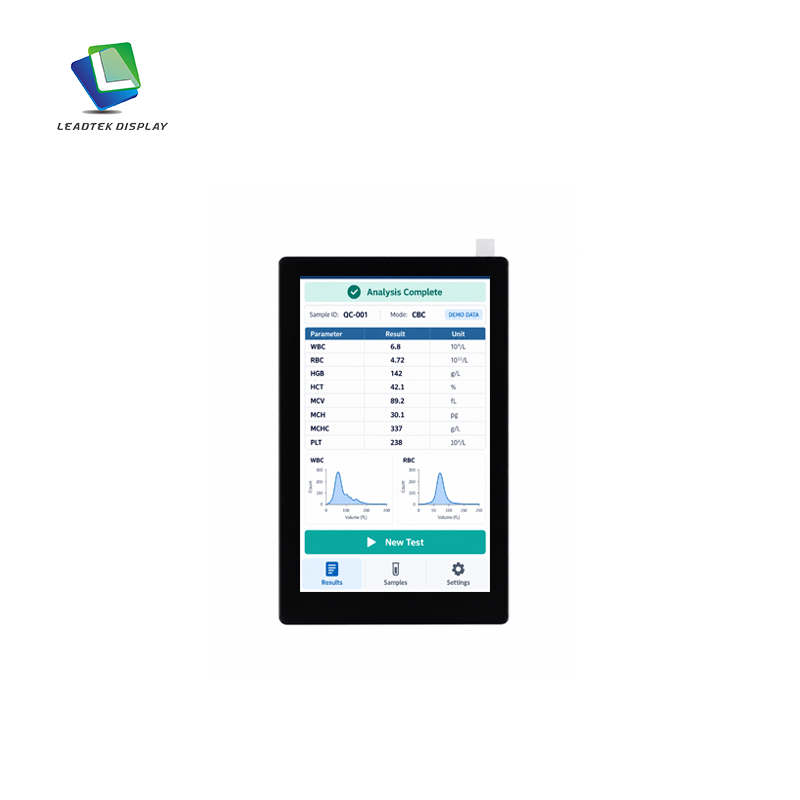

4.3" 480×800 High Brightness IPS TDDI TFT LCD Display -
