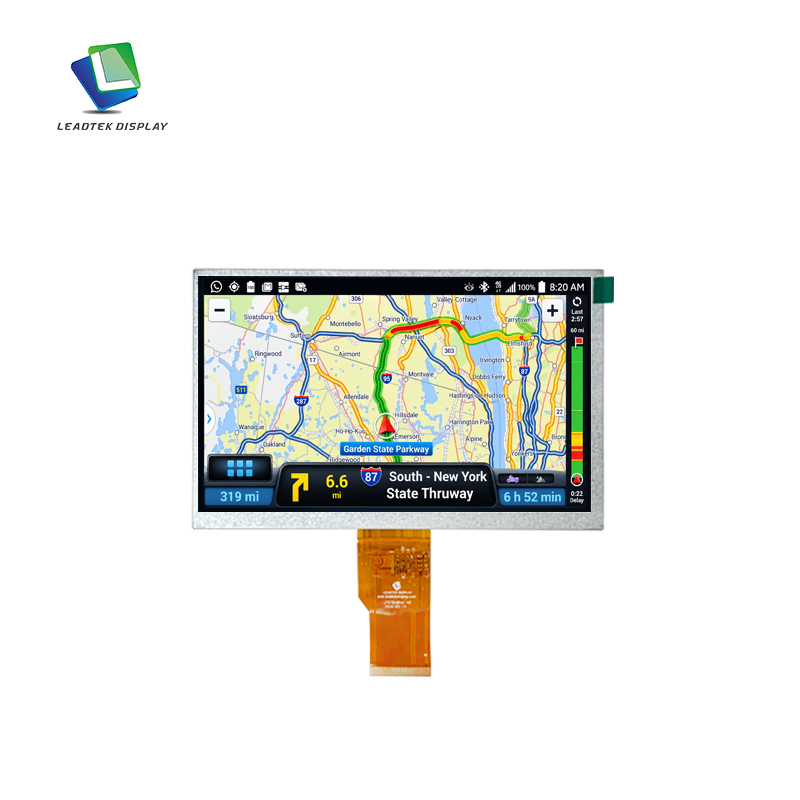

7.0" 1024×600 High Brightness IPS TFT LCD Display with CTP
The LTK070FTNCT91-V0 is a 7.0-inch IPS TFT LCD display featuring 1024×600 resolution, 700 cd/m² brightness, and wide operating temperatures from -30°C to +85°C. Equipped with G+G capacitive touch and an RGB interface, with optional LVDS/MIPI interfaces, it delivers clear visuals, responsive touch performance, and reliable operation in demanding environments. Ideal for smart industrial equipment, intelligent transportation systems, and medical devices.
- Product Details
|
Part Number |
LTK070FTNCT91-V0 |
| Size(inch) | 7.0 |
|
Display Mode |
IPS |
|
Resolution |
1024*600 |
|
Interface |
RGB |
|
Expandable Interfaces |
LVDS/MIPI |
|
Luminance (cd/m²) |
700 |
| Touch Screen | CTP |
| TP Structure | GG |
| TP Interface | IIC |
|
Active Area(mm) |
154.21(H)*85.92(V) |
|
Outline Dimension(mm) |
164.90(H)*100.00(V)*7.56(T) |
|
Operating Temp |
-30~+85℃ |
|
Storage Temp |
-30~+85℃ |

Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
