4.3" 480×800 High Brightness IPS TDDI TFT LCD Display

The LTK043FTNIT44-V0 is a 4.3-inch portrait IPS TFT LCD featuring a 480×800 resolution, 700 cd/m² brightness, and wide viewing angles for clear text, detailed graphics, and vivid image performance. Integrated TDDI technology combines touch and display driving functions, enabling responsive capacitive touch interaction and a compact design. Equipped with a MIPI interface and SPI/RGB expansion options, it offers flexible integration into different systems. Its wide operating temperature range of -30°C to +85°C supports use in varied environments, making it suitable for infusion pumps, blood analyzers, and smart home devices with demanding display requirements.

Inquire Now

BackPrevious Next

Product Details

Part Number	LTK043FTNIT44-V0
Size(inch)	4.30
Display Mode	IPS
Resolution	480*800
Interface	MIPI
Expandable Interface	SPI+RGB
Luminance (cd/m²)	700
Touch Screen	CTP(TDDI)
Active Area(mm)	56.16(H)*93.55(V)

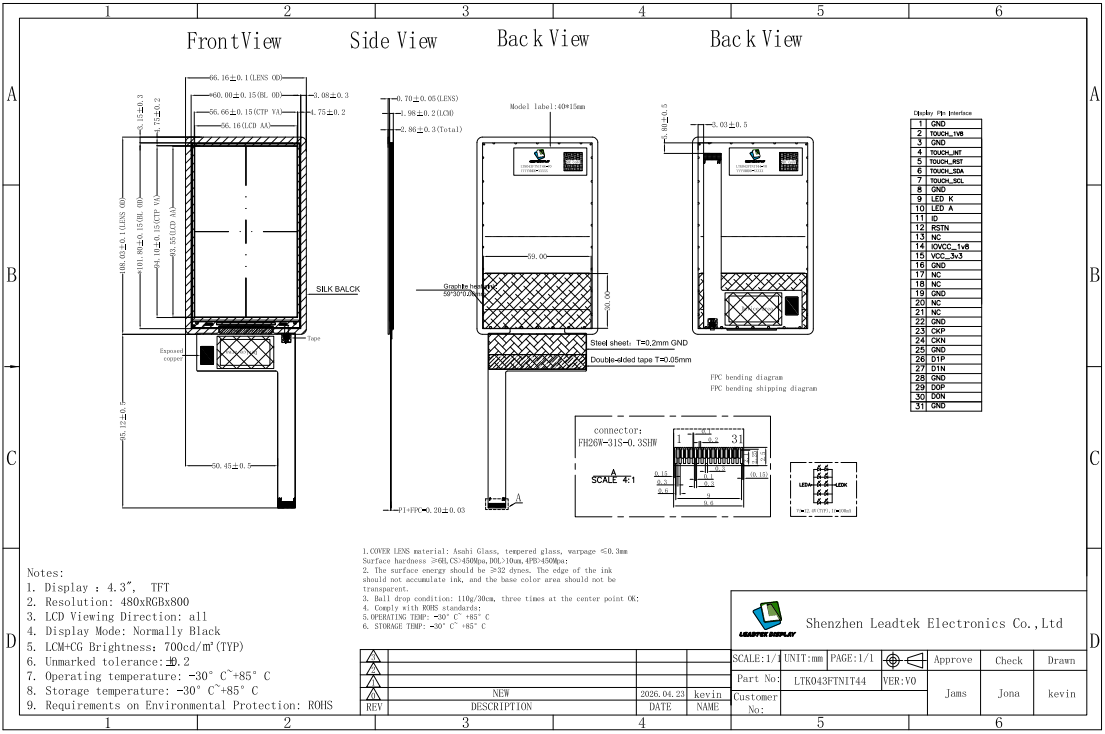

Outline Dimension(mm)	66.16(H)108.03(V)2.86(T)
Operating Temp	-30~+85℃
Storage Temp	-30~+85℃
