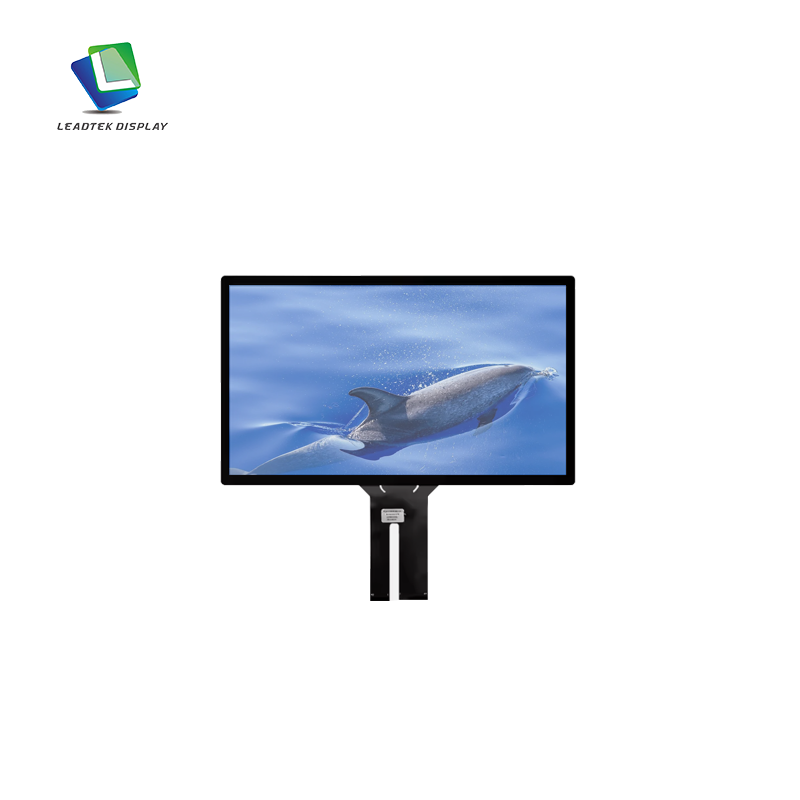

21.5" Transflective Display with LVDS Interface
The LTK215FHHCT15-V0 is a 21.5-inch transflective display designed for industrial applications. It features a full HD resolution of 1920x1080 and utilizes an LVDS interface, supporting 16.7 million colors for vibrant and accurate image reproduction. With a pixel pitch of 0.11 mm and the brightness level of 150 cd/m², it ensures clear visibility in various lighting conditions. The display has an active area of 476.64*268mm.11 mm and an overall size of 520.42*312.17*12.25 mm. Integrated with a capacitive touch panel (CTP), this display offers intuitive and responsive touch control, making it ideal for industrial environments.
- Product Details
PRODUCT PARAMETER

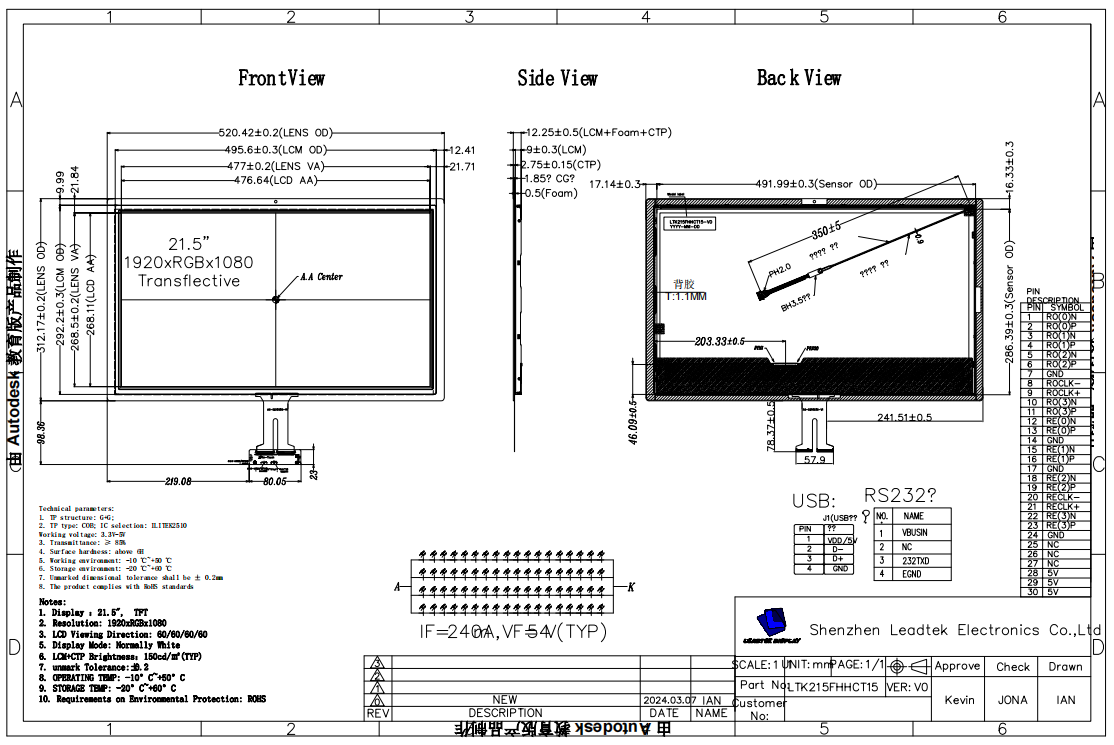

PRODUCT DRAWING
| Size (inch) | 21.5 |
| Part Number. | LTK215FHHCT15-V0 |
| Display Type | Transflective |
| Resolution | 1920*1080 |
| Viewing Angle |
60/60/60/60 |
| Interface | LVDS |
| Color | 16.7M,full color |
| Reflectivity | 11% |
| Power Consumption (mW) | 12960 |
| Active Area (mm) | 476.64*268.11 |
| Outline Dimension (mm) | 520.42*312.17*12.25 |
| Touch Screen | CTP |
| TP Structure |
G+G |
|
TP IC Model |
ILITEK2510 |
| TP Interface |
USB |
|
Operating Temp |
-10~+50℃ |
|
Storage Temp |
-20~+60℃ |
