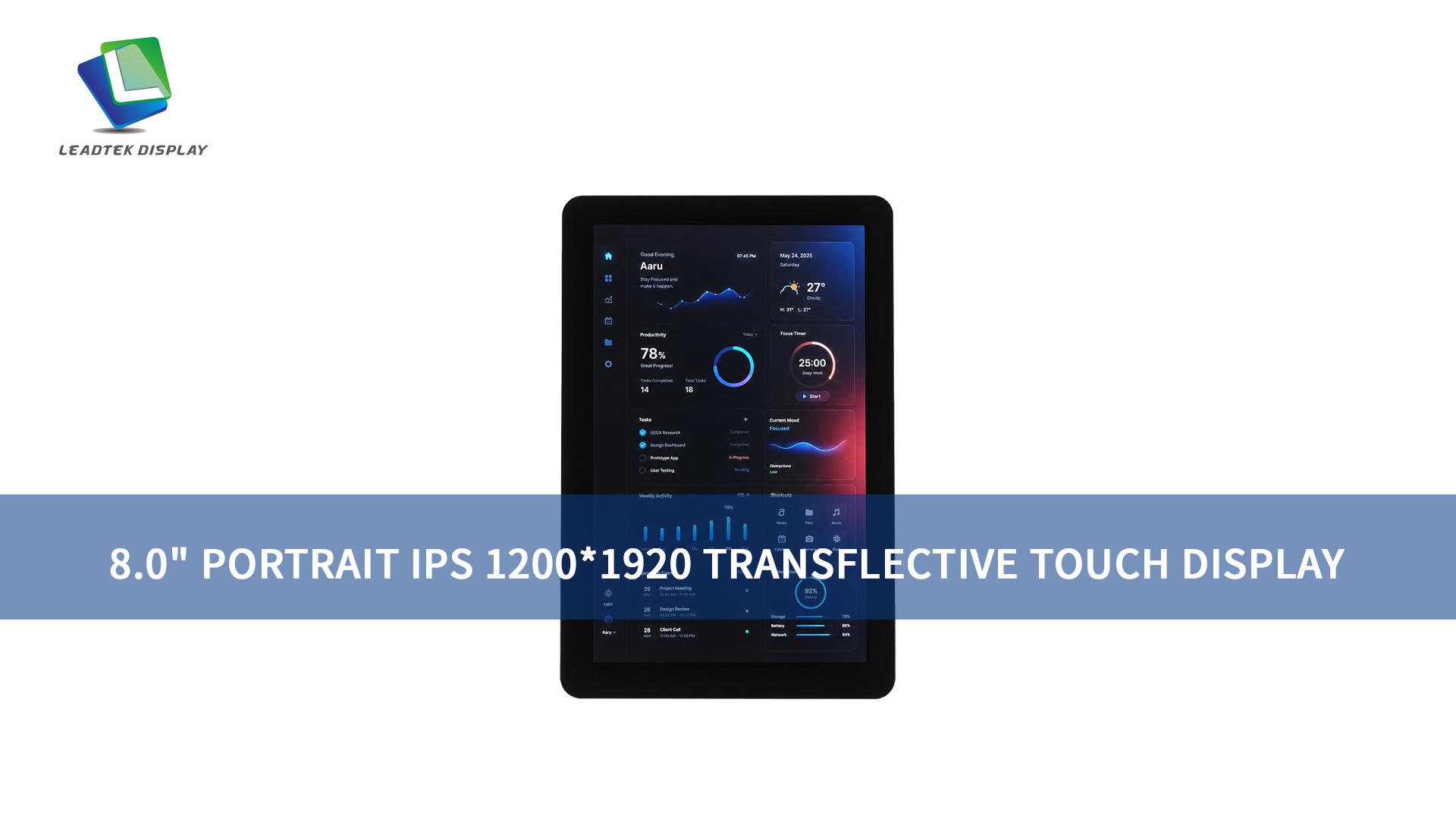

8.0" Transflective IPS TFT Display Module with Capacitive Touch for Industrial Handheld Tablets

LTK080BFXCT36-V0 is an 8.0-inch transflective IPS TFT LCD module with 1200×1920 high resolution, MIPI interface, and GG capacitive touch panel. Featuring excellent sunlight readability and wide viewing angles, it delivers clear and reliable display performance in various lighting conditions. With a slim design and wide operating temperature range from -20°C to +70°C, this module is ideal for industrial handheld tablets, portable equipment, and outdoor industrial applications.

Inquire Now

BackPrevious Next

Product Details

Part Number	LTK080BFXCT36-V0
Size(inch)	8.00
Display Type	Transflective
Resolution	1200*1920
Luminance (cd/m²)	369
Viewing Angle	IPS
Interface	MIPI
Display colors	16.7M,full color
Transmissive CR	15:1
Reflectivity	2.50%
Power Consumption(mW)	3170
Active Area (mm)	108.00(H)*172.80(V)
LCM Module Size (mm)	132.60(H)202.60(V)4.98(T)
Operating Temperature	-20~+70℃
Storage temperature	-30~+80℃
