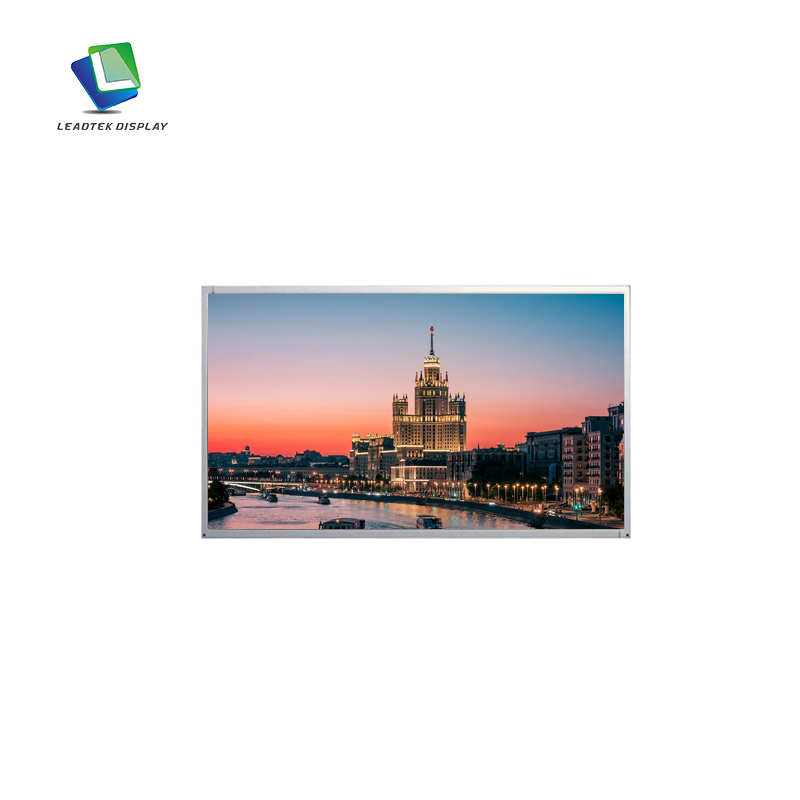

21.5" Transflective Display for Industrial Applications
LTK215FHHLM15-V0 is a 21.5" transflective display designed for industrial applications. It features a high resolution of 1920x1080 and LVDS interface, supporting 16.7 million full-color display capabilities. The display has a viewing angle of 60/60/60/60, providing clear and detailed images. It has a brightness of 200cd/m², an active area size of 476.64*268.11mm, and an overall size of 495.60*292.20*9.00mm. Designed for industrial use, it provides reliable and powerful performance in demanding environments.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 21.5 |
| Part Number. | LTK215FHHLM15-V0 |
| Display Type | Transflective |
| Resolution | 1920*1080 |
| Viewing Angle |
60/60/60/60 |
| Interface | LVDS |
| Color | 16.7M, full color |
| Reflectivity | 11% |
| Power Consumption (mW) | 12960 |
|
Luminance (cd/m²) |
200 |
| Active Area (mm) | 476.64*268.11 |
| Outline Dimension (mm) | 495.60*292.20*9.00 |
|
Operating Temp |
-10~+50℃ |
|
Storage Temp |
-20~+60℃ |

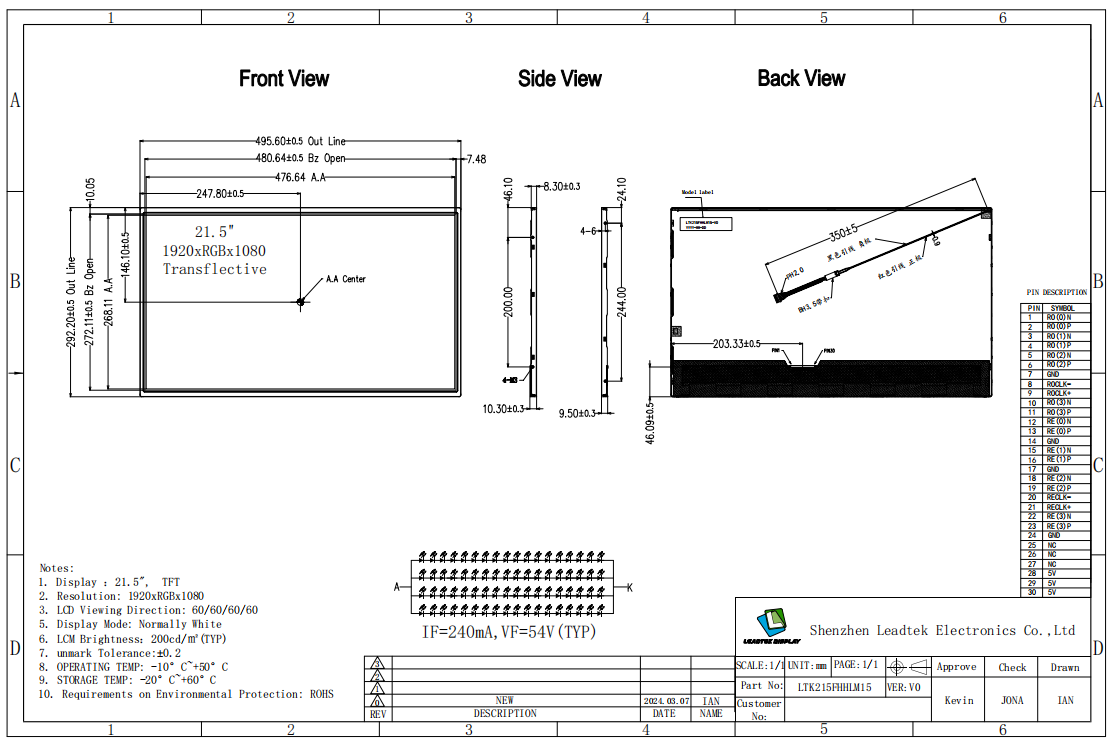

PRODUCT DRAWING
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
