3.5" Transflective IPS TFT Display Module with MCU Interface & CTP

LTK035XFBCT55-V0 is a 3.5-inch transflective IPS TFT LCD module with 320×480 resolution, offering excellent visibility under both sunlight and low-light conditions. Featuring an MCU interface, G+FF capacitive touch panel, and compact design, it provides reliable display performance and easy system integration. With wide operating temperature support from -20°C to +70°C, this module is ideal for smart transportation, outdoor handheld devices, and embedded applications.

Inquire Now

BackPrevious Next

Product Details

Part Number	LTK035XFBCT55-V0
Size(inch)	3.50
Display Type	Transflective
Resolution	320*480
Luminance (cd/m²)	112
Viewing Angle	IPS
Interface	MCU/SPI
Display colors	16.7M,full color
Reflective CR	45:1
Transmissive CR	10:1
Reflectivity	12.00%
Power Consumption(mW)	3674
Active Area (mm)	46.96(H)*73.44(V)

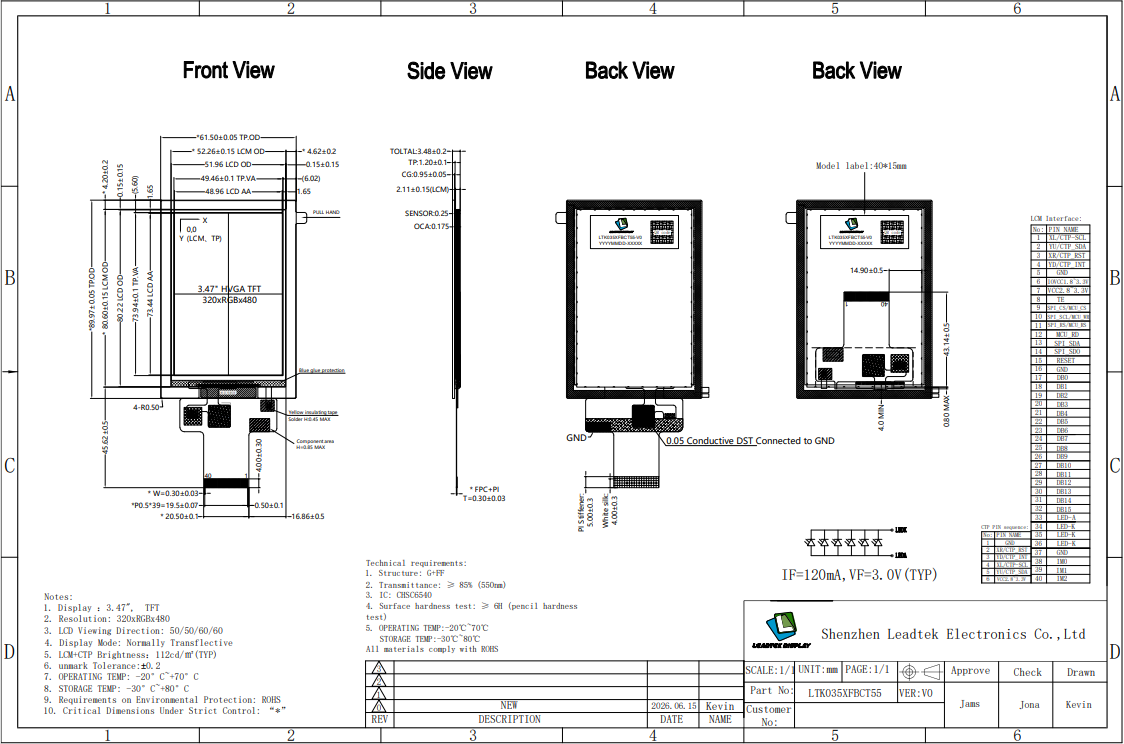

LCM Module Size (mm)	61.50(H)89.97(V)3.48(T)
Operating Temperature	-20~+70℃
Storage temperature	-30~+80℃
