12.3" 1920*720 Rugged Display with high brightness 1200nits, long lifetime and waterproof
Designed for harsh environments, this 12.3-inch IPS display (1920×720) delivers ultra-high 1200-nit brightness for sunlight readability. Featuring an LVDS interface and wide-temperature operation (-30°C to +85°C), it withstands extreme conditions in traffic systems, outdoor signage, and fleet vehicles.
With a slim 6.56mm profile and robust construction, it ensures reliable performance in both freezing winters and scorching summers (storage: -40°C~90°C). Ideal for ITS, EV dashboards, and roadside monitoring.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 12.3 |
| Part Number. | LTK123FHCLM17-V2 |
| Display Mode | IPS |
| Resolution | 1920*720 |
| Interface | LVDS |
| Luminance (cd/m²) | 1200 |
| Active Area (mm) | 292.03*109.51 |
| Outline Dimension (mm) | 302.06*125.46*6.56 |
| Operating Temp | -30~+85℃ |
| Storage Temp | -40~+90℃ |

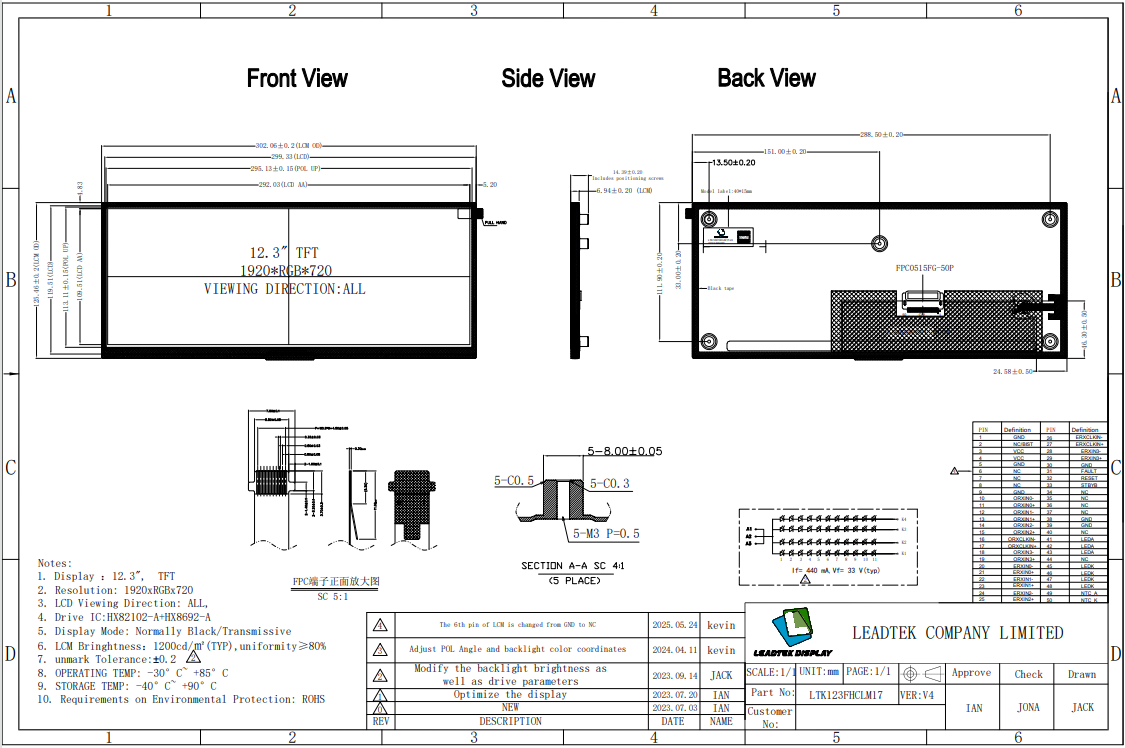

PRODUCT DRAWING
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
