1.54 inch Reflective TFT LCD Module use for handheld devices
This 1.54-inch reflective TFT (200×200, B/W) delivers sunlight-readable performance with 60° viewing angles and 50% reflectivity. Consuming just 0.045mW, it features a 4-line SPI/MCU interface and operates from -20°C to +70°C, making it ideal for industrial HMIs, portable devices, and IoT sensors. The compact 27.7×27.8mm active area and ST7306 driver ensure reliable integration in space-constrained applications.
- Product Details
Part Number. |
LTK015MNHLM15-V0 |
Size(inch) |
1.54'' TFT |
Display Mode |
Normally White/Reflective |
Resolution |
200*200 |
LCD Viewing Direction |
60/60/60/60 |
Color |
B/W, 2 color |
Reflectivity |
50% |
Power Consumption (mW) |
0.045 |
Interface |
4 Line SPI |
Expandable Interface |
MCU |
Active Area (mm) |
27.66 (H) x 27.76 (V) |

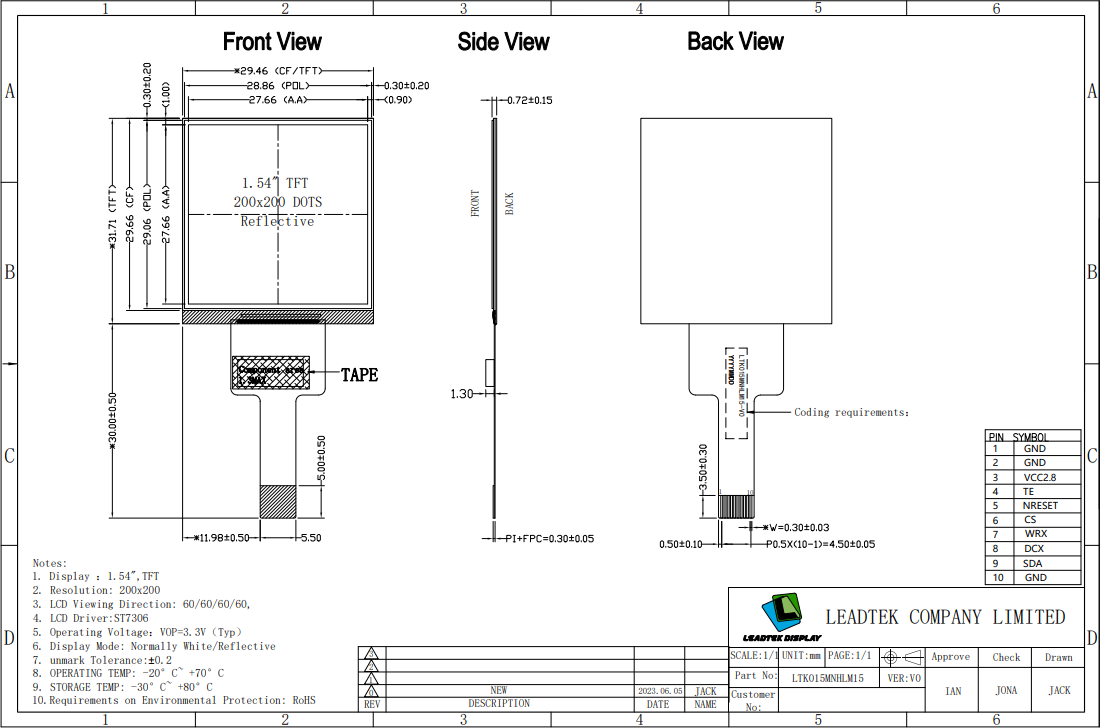

Outline Dimension (mm) |
29.46(H) x 31.71 (V) x0.72(T) |
LCD Driver IC |
ST7306 |
Operating Temp |
-20~+70℃ |
Storage Temp |
-30~+80℃ |
