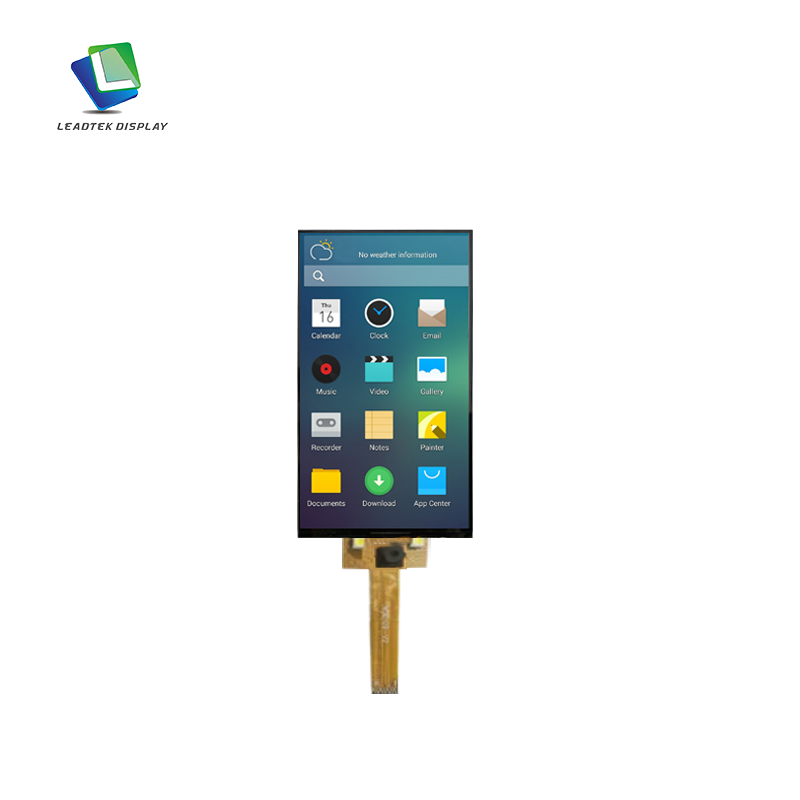

5.6 Inch 720x1440 Transflective Display with MIPI Interface
The LTK056PDHCT10-V0 is a 5.6" transflective display that is ideal for smart industrial applications. It has a resolution of 720x1440, providing crisp, detailed images. The display supports 16.7 million colors, ensuring rich and vivid visuals, and has a brightness of 70cd/m2. The active area is 61.08*121.56mm, and the overall dimensions are 70.24*136.51*3.65mm. It is equipped with a capacitive touch screen (CTP) that provides precise and sensitive touch control,ensuring seamless integration into industrial devices while delivering reliable performance.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 5.6 |
| Part Number. | LTK056PDHCT10-V0 |
| Display Type | Transflective |
| Resolution | 720*1440 |
| Viewing Angle |
60/60/60/60 |
|
Luminance |
70 |
| Interface | MIPI |
| Color | 16.7M, full color |
|
Reflection Contrast |
15:1 |
| Reflectivity | 10% |
| Power Consumption (mW) | 850 |
| Active Area (mm) | 61.08*121.56 |
| Outline Dimension (mm) |
70.24*136.51*3.65 |
| Drive IC |
ST7703 |
| Touch Screen | CTP |
|
TP Structure |
G+G |
|
TP IC model |
GT911 |
|
TP Interface |
IIC |
|
Operating Temp |
-20~+70℃ |
|
Storage Temp |
-30~+80℃ |
