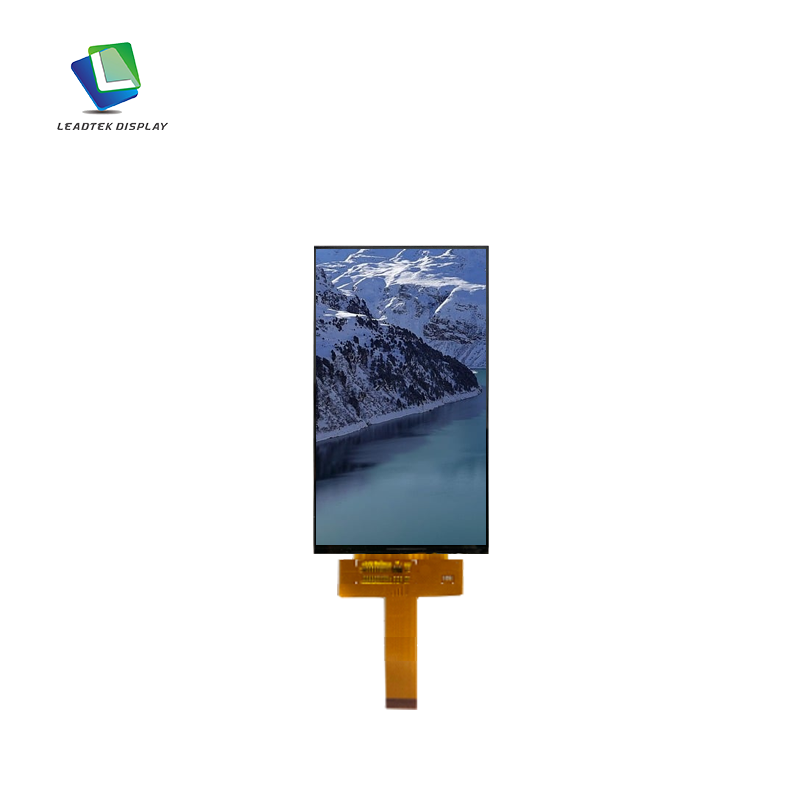

5.6" Transflective LCD TFT Display Module with MIPI Interface
This 5.6-inch Transflective display (LTK056PDHLM10-V0) is an ideal solution for smart industrial applications, offering a high-resolution 720×1440 screen with excellent readability in various lighting conditions. Its robust design supports a wide operating temperature range (-20°C to +70°C), making it suitable for harsh industrial environments. The display features a 16.7M full-color MIPI interface, an active area of 60.48×120.96 mm, and a slim outline dimension of 64.22×130.48×1.62 mm, ensuring seamless integration into industrial devices while delivering reliable performance.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 5.6 |
| Part Number. | LTK056PDHLM10-V0 |
| Display Type | Transflective |
| Resolution | 720*1440 |
| Viewing Angle |
60/60/60/60 |
|
Luminance (cd/m²) |
80 |
| Interface | MIPI |
| Color | 16.7M, full color |
|
Reflection Contrast |
15:1 |
| Reflectivity | 10% |
| Power Consumption (mW) | 850 |
| Active Area (mm) | 60.48*120.96 |
| Outline Dimension (mm) |
64.22*130.48*1.62 |
|
Operating Temp |
-20~+70℃ |
|
Storage Temp |
-30~+80℃ |
