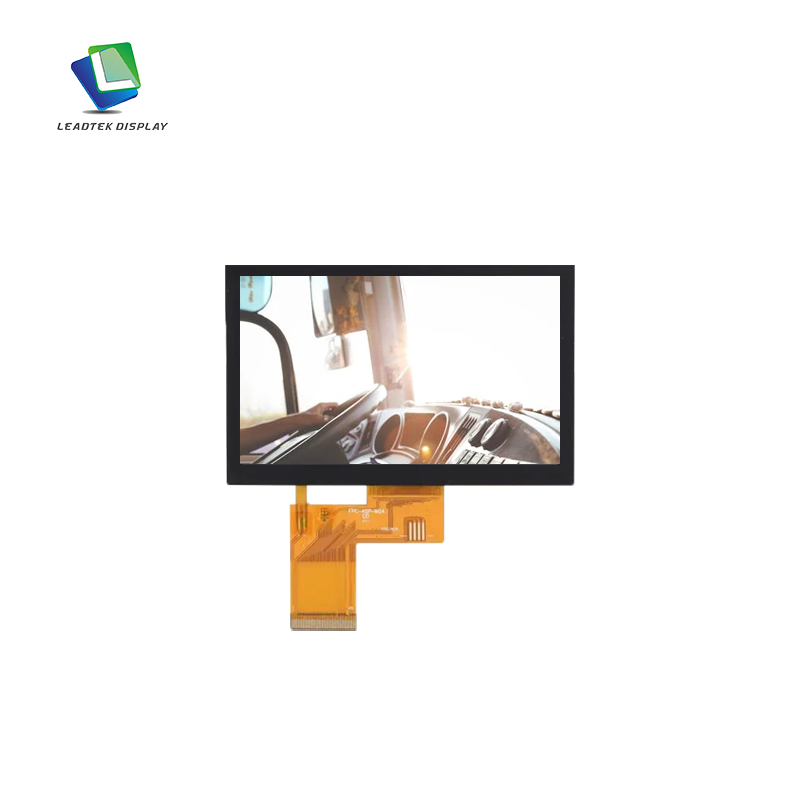

5 inch 800*480 Transflective Display Module

This LTK050PDBLM30-V0 transflective LCD module uses a full-color display with a resolution of 800*480 pixels and works through an RGB interface. It supports 16.7 million colors, a brightness of 200 nits, and a viewing angle of 50/60/60/60. The reflectivity of this display is 5% and the power consumption is 1080mW. The effective display area is 108.00*64.80 mm and the overall size is 120.80*75.80*2.85 mm. It is designed for intelligent transportation applications and can provide clear, high-quality visuals and reliable performance in various environments.

Inquire Now

BackPrevious Next

Product Details

Part Number	LTK050PDBLM30-V0
Display Mode	Transflective
Resolution	800*480
Viewing Angle	50/60/60/60
Color	16.7M, full color
Reflectivity	5%
Power consumption	1080/mW

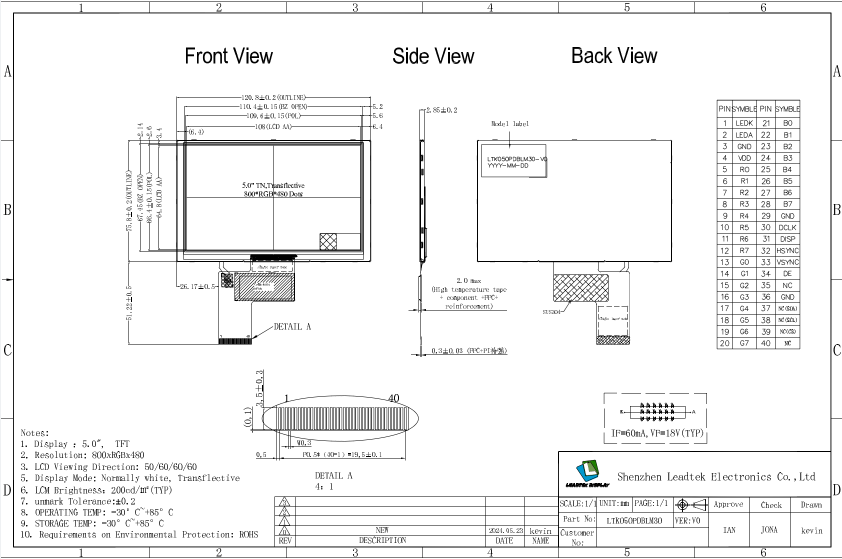

Active Area (mm)	108.00*64.80
Outline Dimension (mm)	120.8075.802.85
Interface	RGB
Luminance (cd/m²)	200
Operating Temperature	-30~+80℃
Storage Temperature	-30~+80℃
