5 inch 800*480 Transflective Display with RGB interface

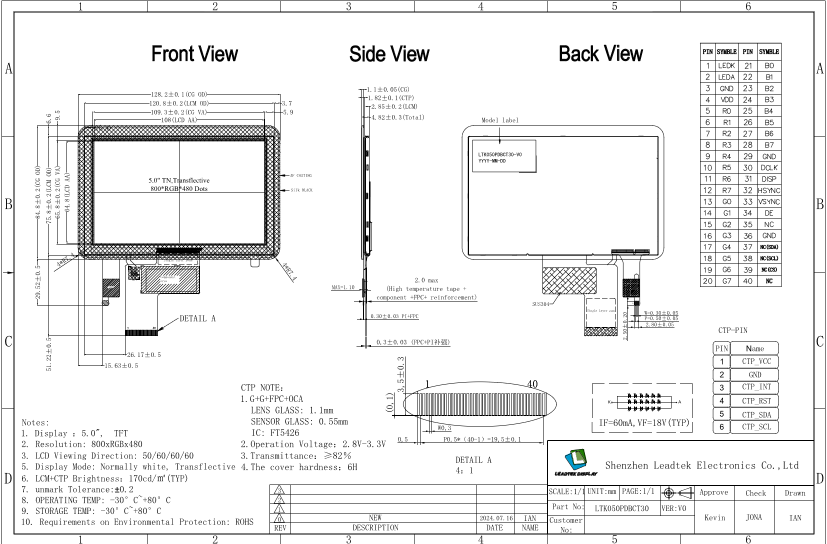

This LTK050PDBCT30-V0 transflective LCD module features a full-color display with a resolution of 800*480 pixels and operates through an RGB interface. It supports 16.7 million colors and a brightness of 170 Nits. The active area is 108.00*64.80 mm and the overall size is 128.20*84.80*4.82 mm. This module is equipped with a capacitive touch screen (CTP) and is designed for smart transportation applications, providing clear, high-quality visuals and reliable performance in a variety of environments.
- Product Details
|
Part Number |
LTK050PDBCT30-V0 |
|
Resolution |
800*480 |
|
Display Mode |
Transflective |
|
Viewing Angle |
50/60/60/60 |
| Color |
16.7M, full color |
|
Reflectivity |
5% |
|
Power consumption |
1080/mW |
|
Active Area (mm) |
108.00*64.80 |
|
Outline Dimension (mm) |
128.20*84.80*4.82 |
| Interface | RGB |
|
Luminance (cd/m²) |
170 |
|
Touch Screen |
CTP |
| CTP Structure |
G+G |
| CTP IC Model |
FT5426 |
| CTP Interface |
IIC |
|
Operating Temperature |
-30~+80℃ |
|
Storage Temperature |
-30~+80℃ |
