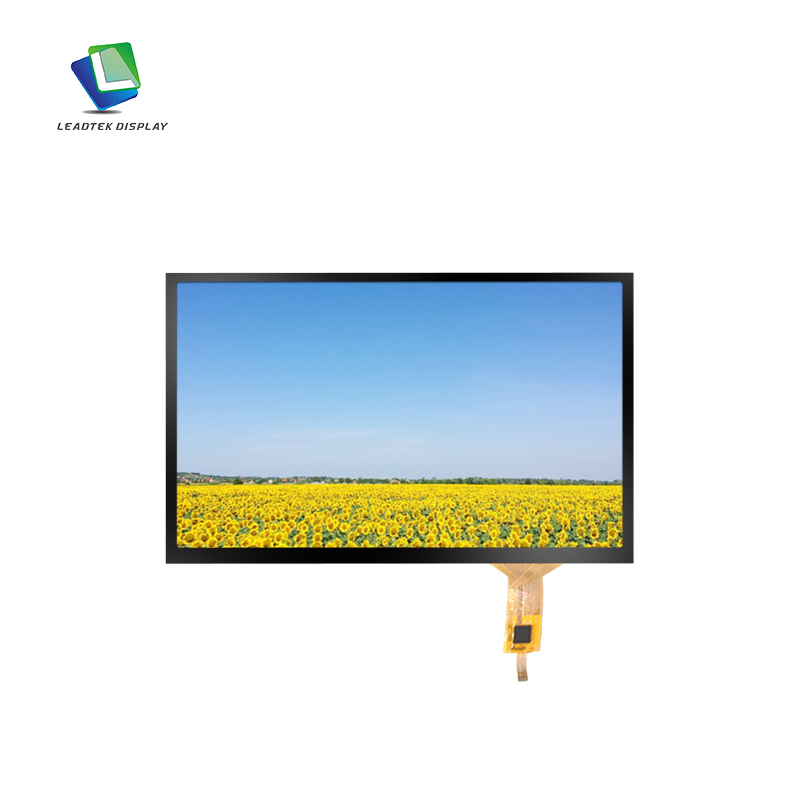

10.1 Inch 1920*1200 LCD Touch Display,High Brightness 800nits
The LTK101WUBCT20-V0 is a robust 10.1-inch IPS display engineered for smart industrial environments. Featuring a high-resolution 1920×1200 screen and ultra-bright 800 cd/m² luminance, it ensures excellent visibility even under strong ambient light. The display supports an LVDS interface and is equipped with a durable capacitive touch panel (CTP) using GG structure and a GT9271 touch IC, offering smooth and accurate multi-touch performance via I²C interface. Designed for demanding applications, it operates reliably within a wide temperature range of -20°C to +70°C, making it ideal for industrial control systems, HMI panels, and other intelligent equipment.
- Product Details
Part Number. |
LTK101WUBCT20-V0 |
Size(inch) | 10.1 |
Resolution |
1920*1200 |
Display Mode |
IPS |
Interface |
LVDS |
Luminance (cd/m²) |
800 |

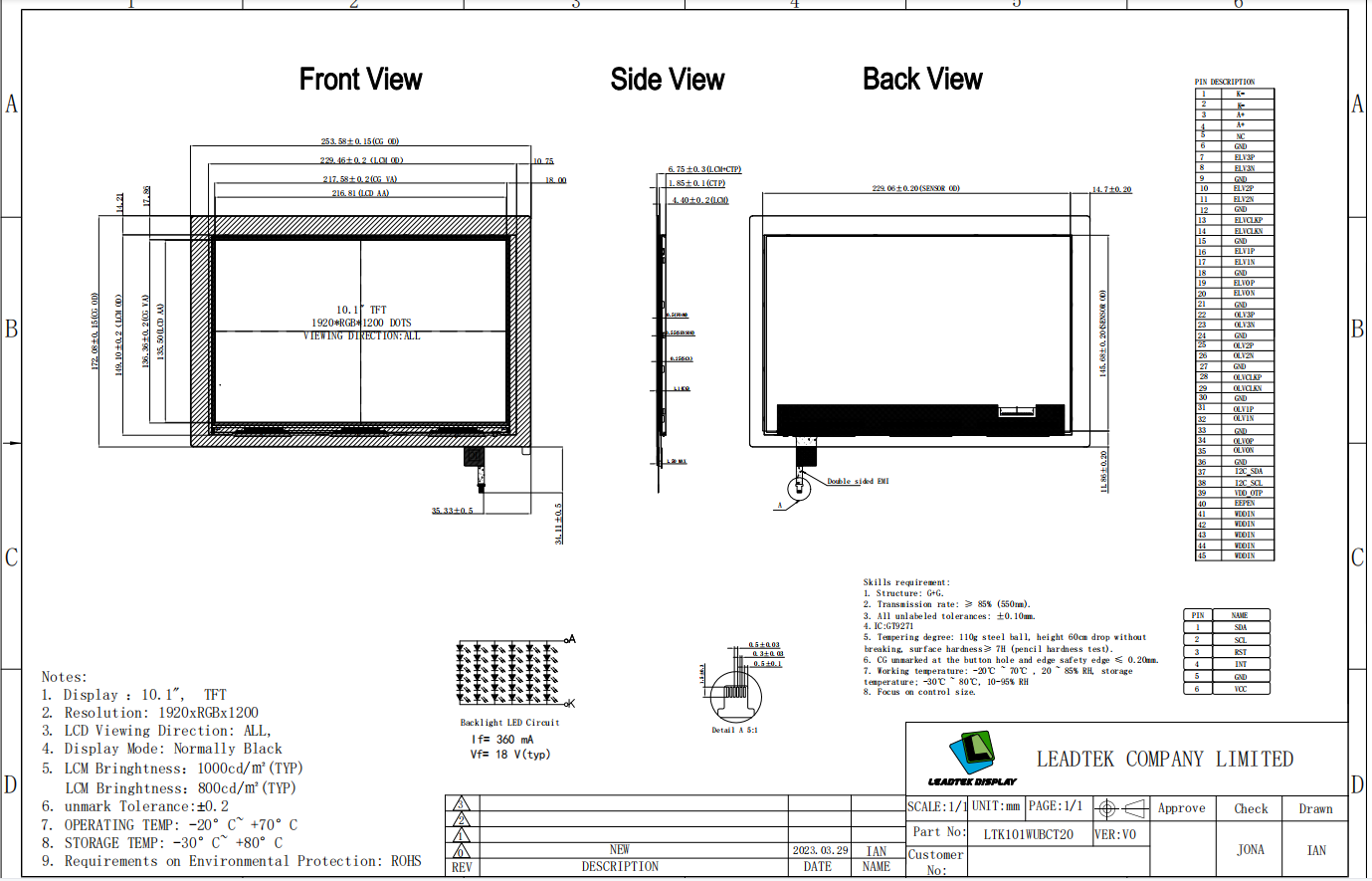

Active Area (mm) |
216.81*135.50 |
Outline Dimension (mm) |
253.58*172.08*6.75 |
Touch Screen |
CTP |
TP Structure |
GG |
TP IC Model |
GT9271 |
TP Interface |
IIC |
Operating Temp |
-20~+70℃ |
Storage Temp |
-30~+80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
