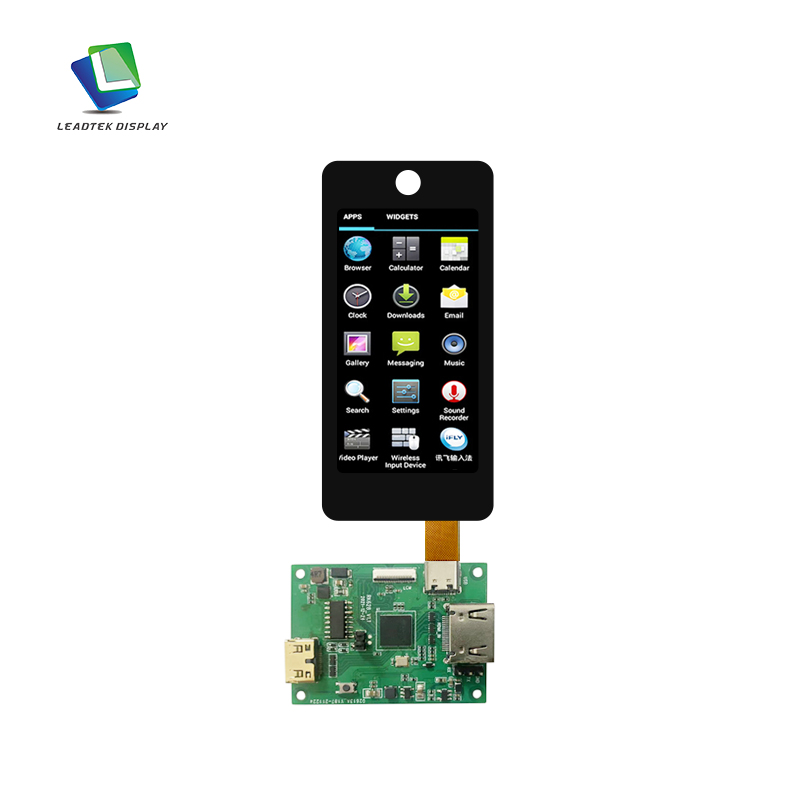

5 inch IPS 800*480 Smart Display with UART TTL interface
This 5.0-inch IPS display is designed for smart home interfaces, offering vivid visuals with a 400 cd/m² LCD brightness and wide viewing angles. Equipped with a capacitive touch panel (CTP), it enables smooth and responsive control for interactive applications. With UART TTL output and RGB signal input, the module supports easy integration with embedded home automation systems. The compact, slim design and 5V/2A power supply make it ideal for wall-mounted panels, smart appliances, and control hubs. Its robust performance in temperatures from -20°C to +70°C ensures reliable operation in varied home environments.
- Product Details
Product Parameters:
| Size(inch) | 5.0 |
| Model number |
LTK050WVBUT18-V1 |
| Viewing Direction | IPS |
| LCM O.D (mm) |
120.30*75.46*2.70 |
| LCD AA(mm) |
108.00*64.80 |
| LCM Luminance |
400 |
| Signal Input | RGB |
| Signal Output | UART TTL&232&485 |
| PCB Outline | 158.70*100.0*15.0 |
| Power |
5V/2A |
| Touch Screen |
CTP |
| TPM V.A (mm) |
108.60*65.40 |
|
TPM O.D (mm) |
143.60*95.70*4.60 |
|
TPM Luminance |
350 |
|
Operating Temp |
-20~+70℃ |
| Storage Temp |
-30~+80℃ |

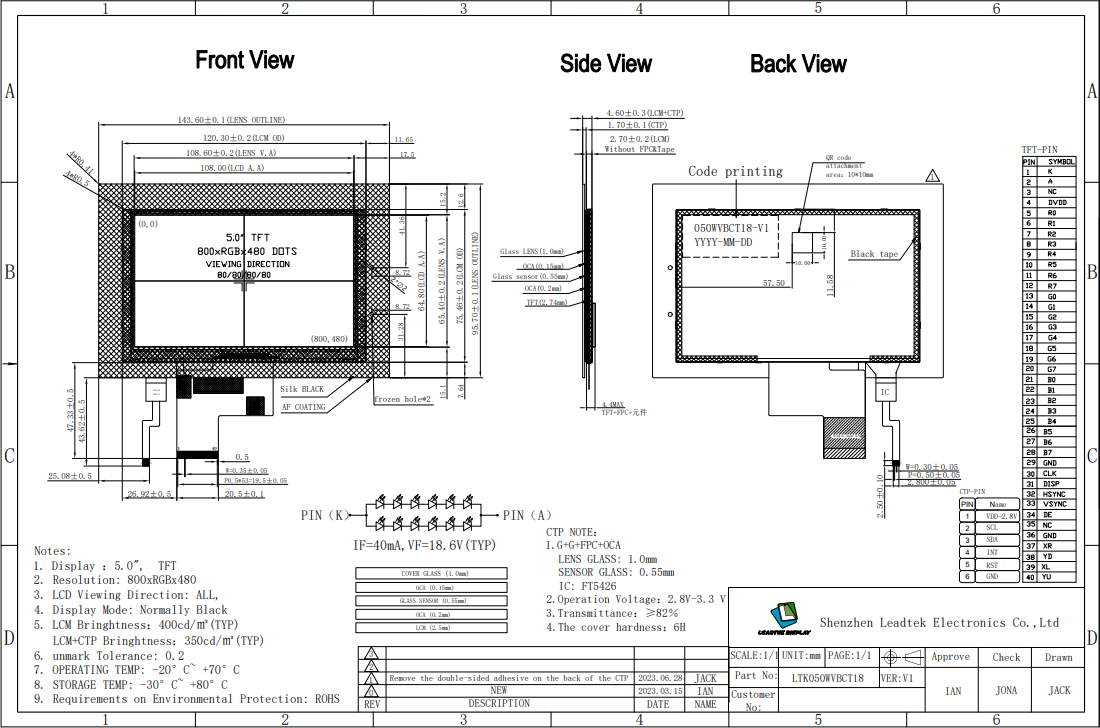

Product Drawing:
