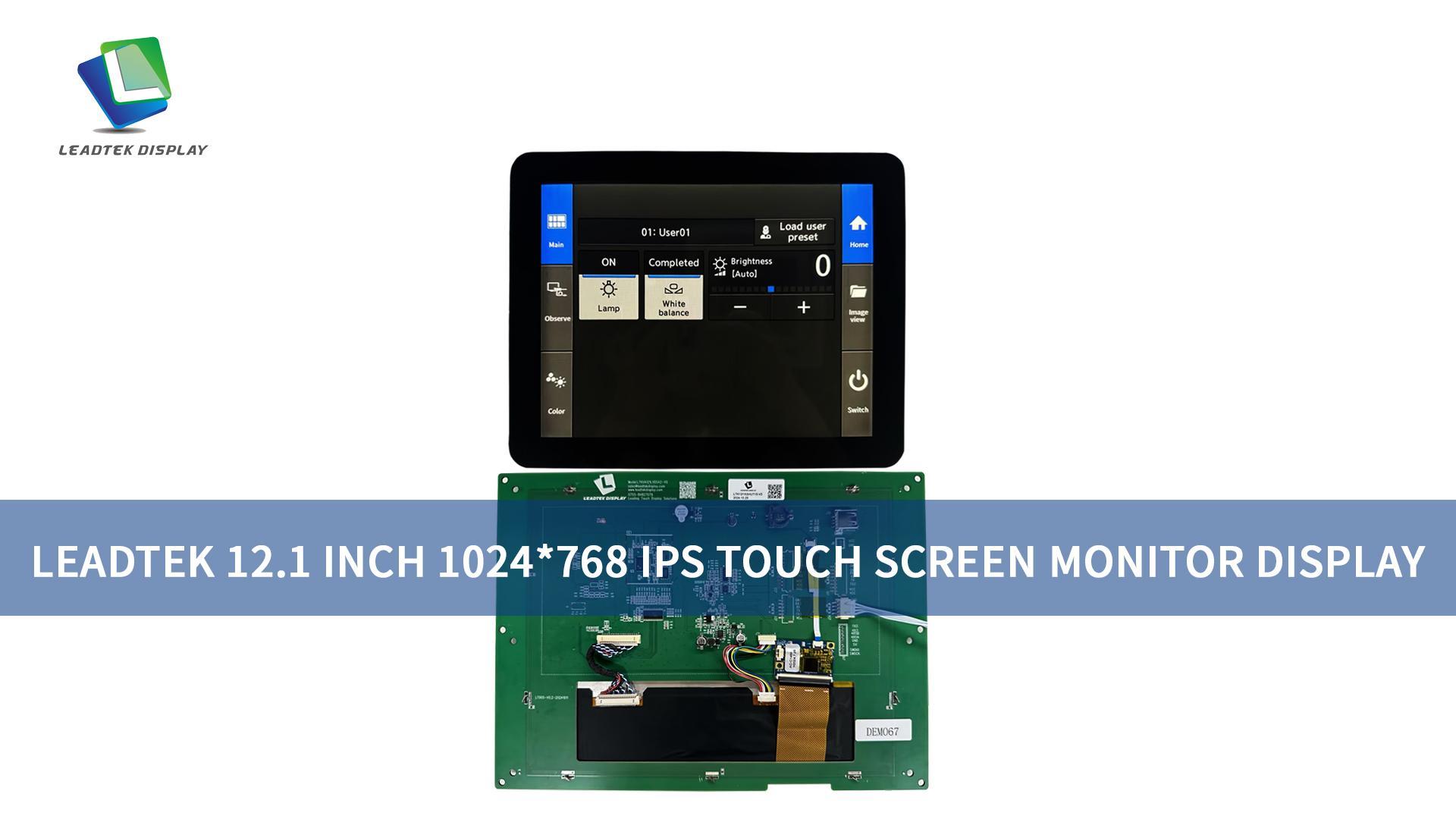

12.1 inch customized 1024*768 TFT display module with touch and TTL interface
LTK121XGHUT15-V0 is a 12.1-inch high-brightness UART display module optimized for smart medical devices. With a 1024x768 IPS panel and 680cd/m² luminance, it provides sharp, vivid visuals and wide viewing angles, ideal for clinical and diagnostic use. The capacitive touch panel (CTP) ensures accurate and smooth user interaction. Supporting UART TTL, RS232, and RS485 communication protocols, the module integrates easily into a range of healthcare equipment. Its wide operating temperature (-30°C to +85°C) and industrial-grade design ensure reliable performance in demanding environments. Equipped with 1GB flash memory (expandable), it is well-suited for medical terminals, imaging systems, and intelligent patient interfaces.
- Product Details
Size(inch) | 12.1 |
Part Number. |
LTK121XGHUT15-V0 |
Resolution |
1024*768 |
Display Mode |
IPS |
LCM A.A (mm) |
245.76*184.32 |
LCM O.D (mm) |
260.50*204.00*7.45 |
LCM Luminance |
800 |
Signal Input |
LVDS |
Signal Output |
UART TTL&232&485 |
PCB Outline |
280.00*224.00 |
Operating Temp |
-30~+85℃ |
Storage Temp |
-30~+85℃ |
Power |
5V/2A |
Touch Screen |
CTP |
TPM V.A (mm) |
246.00*184.50 |
TPM O.D (mm) |
289.30*227.50*10.25 |
TPM Luminance |
680 |
Flash |
1GB (support 128Mbit~2*1GB) |
