15 Inch UART TFT LCD 1024*768 Display with 750 nits

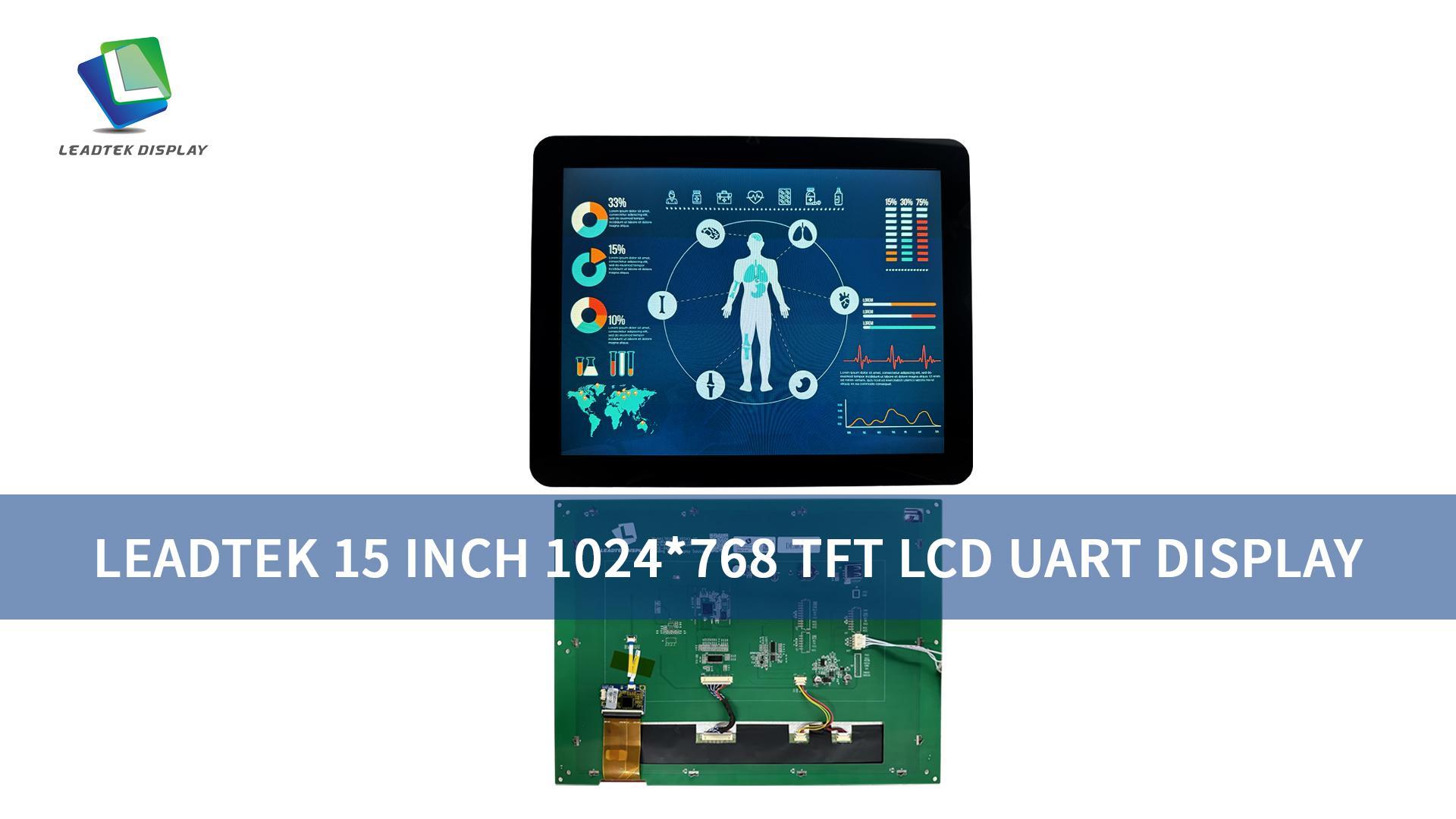

LTK150FTFUT17-V0 is a 15-inch high-brightness UART display module designed for smart healthcare systems.Featuring a 1024x768 IPS screen with 850 cd/m² luminance and wide viewing angles, it ensures clear visibility in clinical environments. The integrated capacitive touch panel (CTP) offers smooth and responsive user interaction. It supports UART TTL, RS232, and RS485 interfaces, making it compatible with a variety of medical equipment. Built-in 1GB flash (expandable) allows local data processing and display control. Operating reliably between -20°C and +70°C, this module is ideal for hospital terminals, diagnostic devices, and patient monitoring systems. Its robust structure and industrial-grade performance make it a dependable solution for medical applications.

Inquire Now

BackPrevious Next

Product Details

Part Number.	LTK150FTFUT17-V0
Resolution	1024*768
Display Mode	IPS
LCM A.A (mm)	304.13*228.10
LCM O.D (mm)	326.50253.508.70
LCM Luminance	850
Signal Input	LVDS
Signal Output	UART TTL&232&485
PCB Outline	346.00*273.00
Operating Temp	-20~+70℃
Storage Temp	-30~+80℃
Power	5V/2A
Touch Screen	CTP
TPM V.A (mm)	302.40*226.90
TPM O.D (mm)	335.50275.5012.30
TPM Luminance	750
Flash	1GB (support 128Mbit~2*1GB)
