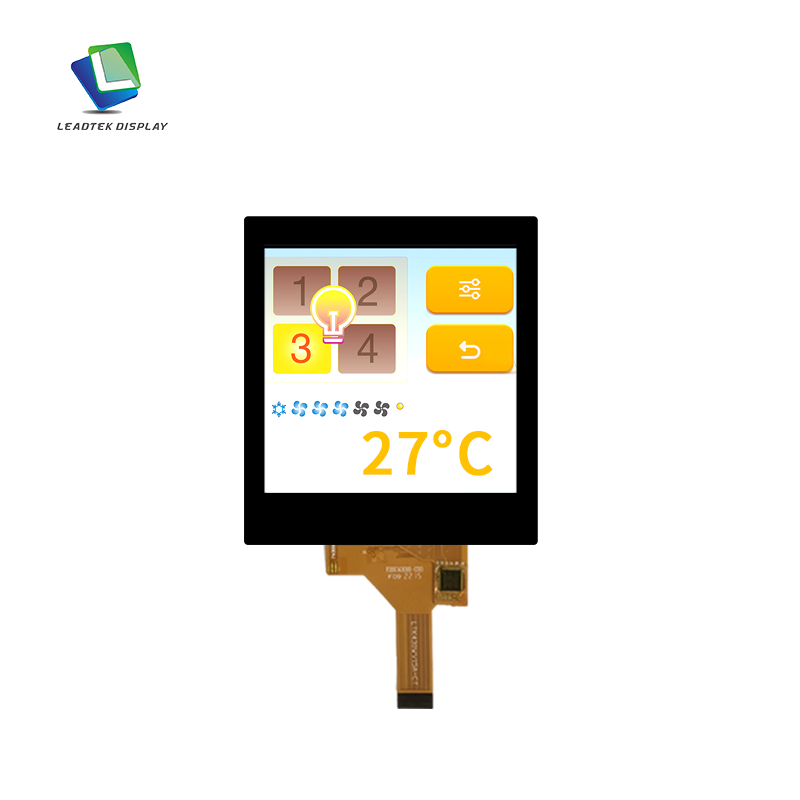

High-Brightness 4.0" 480*480 IPS Rugged LCD Screen
This LTK040WVHCT29-V1 IPS LCD module features a square 480*480 resolution and operates via MIPI interface with an impressive 900 cd/m² luminance. It includes a capacitive touch panel (CTP) and is designed to operate reliably in temperatures ranging from -20℃ to +85℃, with storage conditions extending from -30℃ to +85℃. Tailored for smart industrial environments, it provides clear, high-quality visuals and robust performance in various operational temperatures.

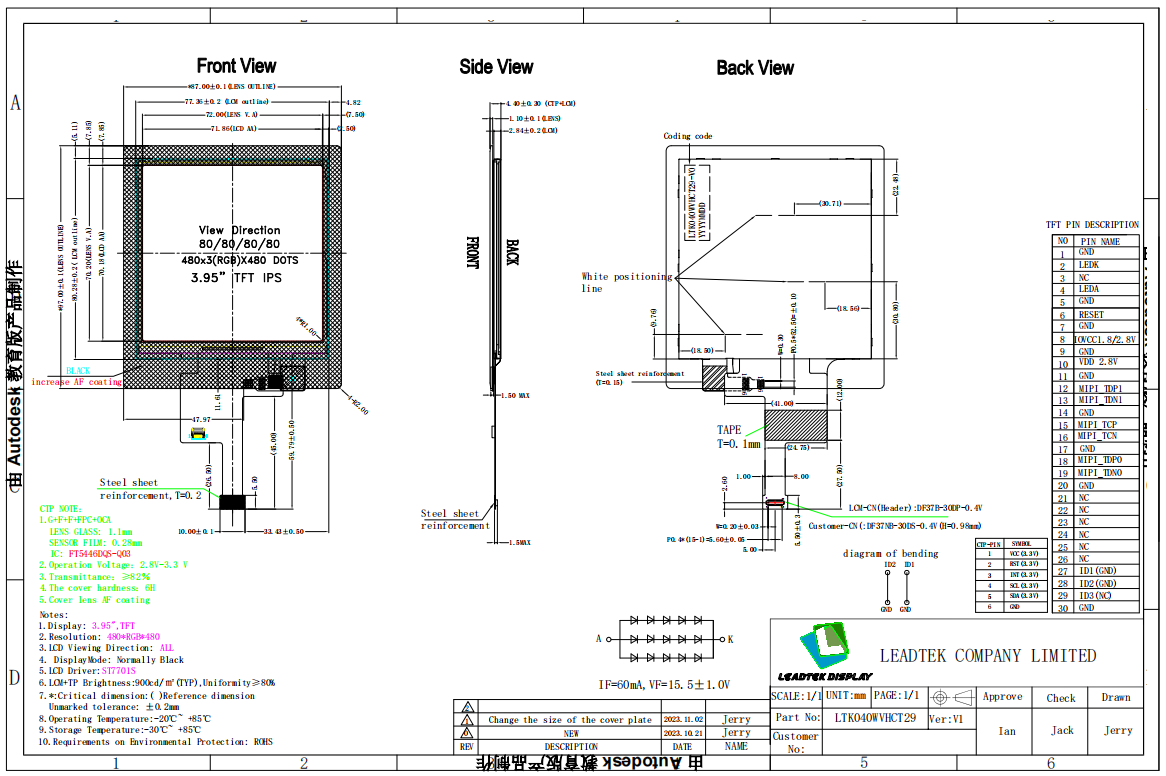

- Product Details
| Size (inch) | 4.0 |
| Part Number. | LTK040WVHCT29-V1 |
| Display Mode | IPS |
| Resolution | 480*480 |
| Interface | MIPI |
|
Expandable interface |
SPI+RGB |
| Luminance (cd/m²) | 900 |
| Active Area (mm) | 71.86*70.18 |
| Outline Dimension (mm) | 87.00*97.00*4.40 |
| Touch Screen | CTP |
| TP structure |
GFF |
| TP IC Model |
FT5446DQS-Q03 |
| TP Interface |
IIC |
| Operating Temp | -20~+85℃ |
| Storage Temp | -30~+85℃ |
