New 15.6 Inch High Brightness TFT Display Module with 1920*1080 Resolution

The LTK156FTILM29-V0 is a high-performance 15.6-inch IPS LCD display designed for a wide range of industrial applications. Featuring a Full HD resolution of 1920×1080 and an ultra-high brightness of 1000 cd/m², it ensures crisp, clear visuals even in bright environments. With a transmissive, normally black panel and all-direction viewing, it delivers consistent image quality from any angle.This display supports LVDS interface and operates reliably in extreme temperatures from -30°C to +85°C, making it ideal for demanding industrial conditions. Its compact design, with an active area of 344.16 × 193.59 mm and overall dimensions of 363.80 × 215.90 × 10.32 mm, allows easy integration into various systems.

Inquire Now

BackPrevious Next

Product Details

Size(inch)	15.6
Part Number.	LTK156FTILM29-V0
Display Mode	Transmissive/Normally Black/IPS
Viewing Direction	All
Resolution	1920*1080
Interface	LVDS
Luminance (cd/m²)	1000
Active Area (mm)	344.16(W)×193.59(H)

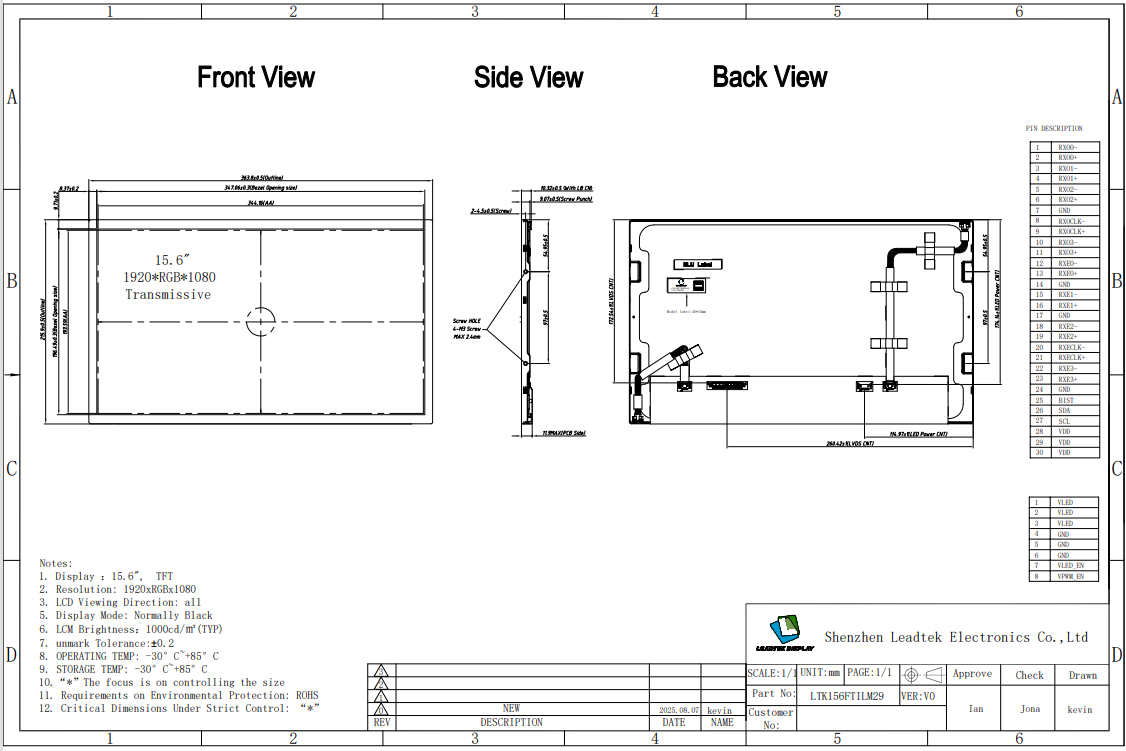

Outline Dimension (mm)	363.80(W)×215.90(H)×10.32(T)
Operating Temp	-30~+85℃
Storage Temp	-30~+85℃
