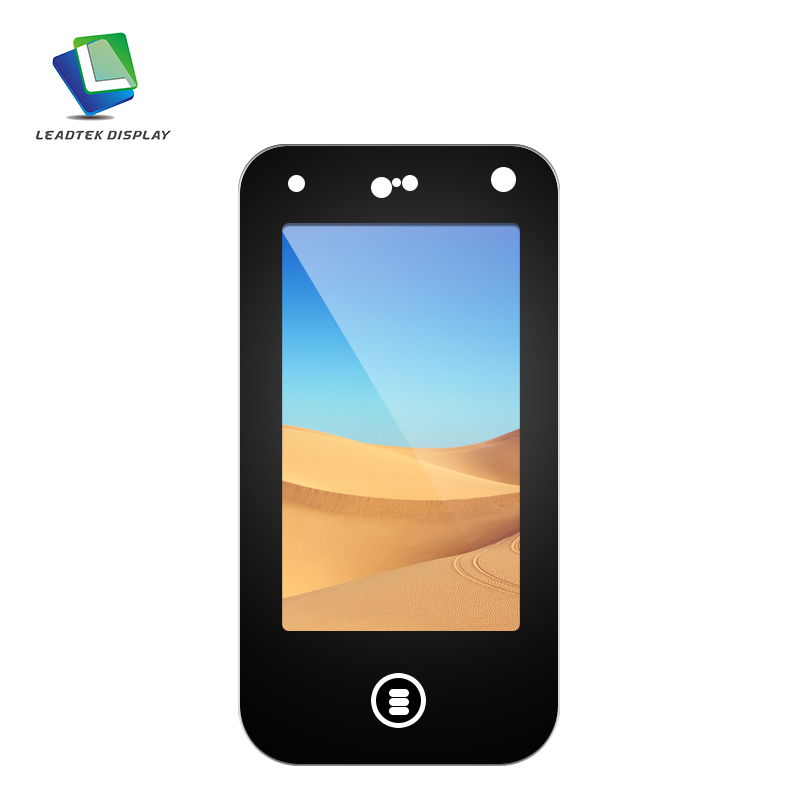

6.95 Inch Touch Screen TFT LCD Display 600*1024 IPS MIPI 300 Nits
LTK0695I4018W-QC-V2 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a Touch Panel Module and a driving circuit. This TFT LCD has a 6.95 inch diagonally measured active display area with (600*1024 Portrait pixel) resolution.(J)
- Product Details
Specification of 6.95 Inch Touch Screen TFT LCD Display 600*1024 IPS MIPI 300 Nits
Mode |
LTK0695I4018W-QC-V2 |
Display Mode |
IPS |
Resolution |
600*1024 |
Interface |
MIPI |
Brightness |
300cd/m2 |
Active Area(mm) |
89.28*152.37mm |
Outline Dimension(mm) |
118.46*230.82*5.92mm |
Structure |
G+G |
TP Interface |
IIC 6PIN |
LENS VA(mm) |
88.88*151.97mm |
LENS OD(mm) |
118.46*230.82mm |

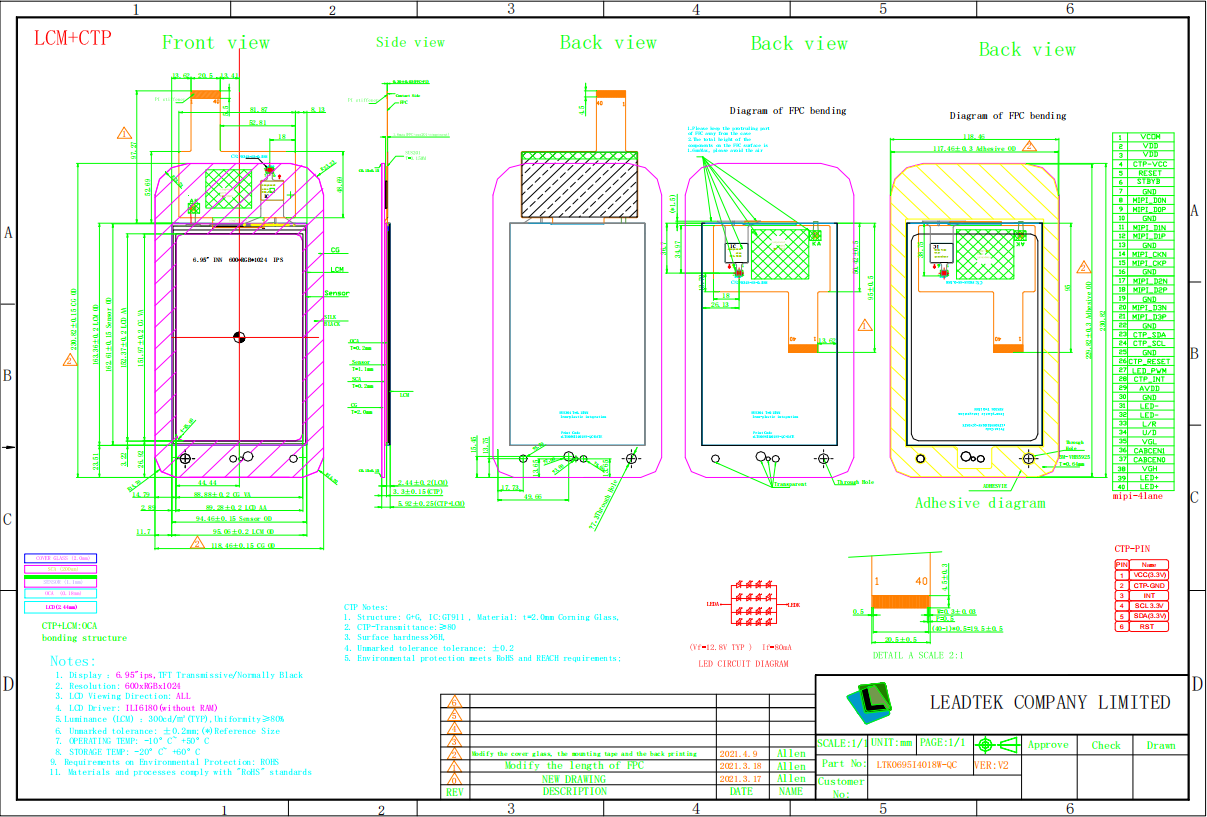

Dimension of 6.95 Inch Touch Screen TFT LCD Display 600*1024 IPS MIPI 300 Nits
