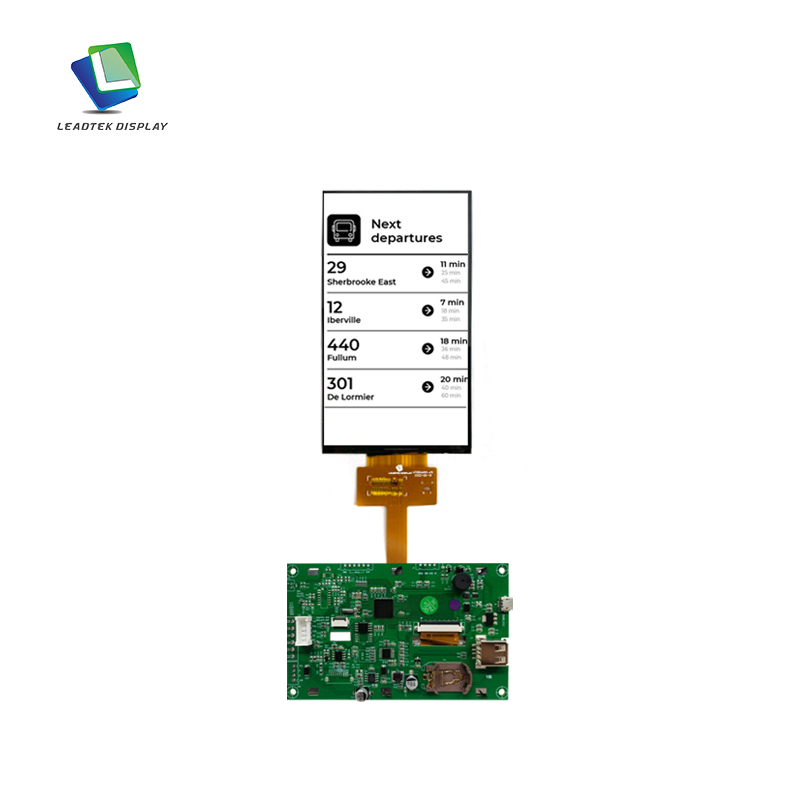

5.5 '' 720*1280 UART Display for Smartr Transportation
The LTK055HDHUM15-V0 is a 5.5-inch TN display designed for smart transportation systems, featuring a 720×1280 resolution for clear and efficient data visualization. With MIPI input and versatile UART output (TTL/RS232/RS485), it enables seamless communication with vehicle terminals, ticketing systems, and on-board controllers. The ultra-thin design and 5V/2A power input allow easy integration into compact environments. Equipped with 1GB flash (expandable), it supports dynamic UI and data storage needs. Built to perform in harsh conditions, it operates reliably across -20°C to +70°C, making it ideal for transport control panels and smart kiosks.
- Product Details
| Size (inch) | 5.5 |
| Part Number. | LTK055HDHUM15-V0 |
| Display Mode | TN |
| Resolution | 720*1280 |
|
Viewing Angle |
TN |
|
LCM A.A (mm) |
68.04*120.96 |
|
LCM O.D (mm) |
70.64*126.44*0.72 |
|
Signal Input |
MIPI |
|
Signal Output |
UART TTL&232&485 |
|
PCB Outline |
130.00*80.00mm |
| Power Supply | 5V/2A |
| Operating Temp | -20~+70℃ |
| Storage Temp |
-30~+80℃ |
| Flash |
1GB（support 128Mbit~2*1GB) |
