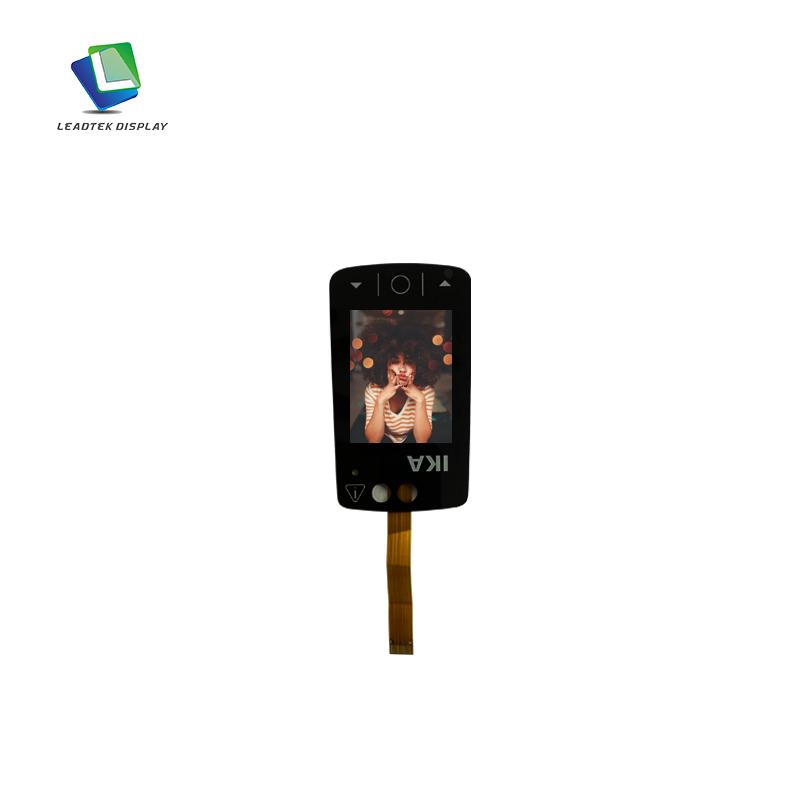

2.0" Display for Smart Industrial Applications
This 2.0" display features a resolution of 240 x 320, perfect for smart industrial applications. With an SPI interface and 440 cd/m² brightness, it delivers sharp and vibrant visuals. The active area is 30.60(H) x 40.80(V) mm, while the overall dimensions are 44.82(W) x 78.18(H) x 3.55(T) mm, making it compact and robust. The CG (Cover Glass) provides extra durability, and it operates reliably in temperatures ranging from -20°C to +70°C.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 2.0 |
| Part Number. | LTK020QVHGT20-V0 |
| Display Mode | IPS |
| Resolution | 240*320 |
| Interface | SPI |
|
Expandable interface |
MCU/RGB |
| Luminance (cd/m²) | 440 |
| Active Area (mm) | 30.60*40.80 |
| LCM Outline Dimension (mm) |
34.60*47.80*2.23 |
| LCM+CG Outline Dimension (mm) | 44.82*78.18*3.55 |
| Touch Screen | CG |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+70℃ |

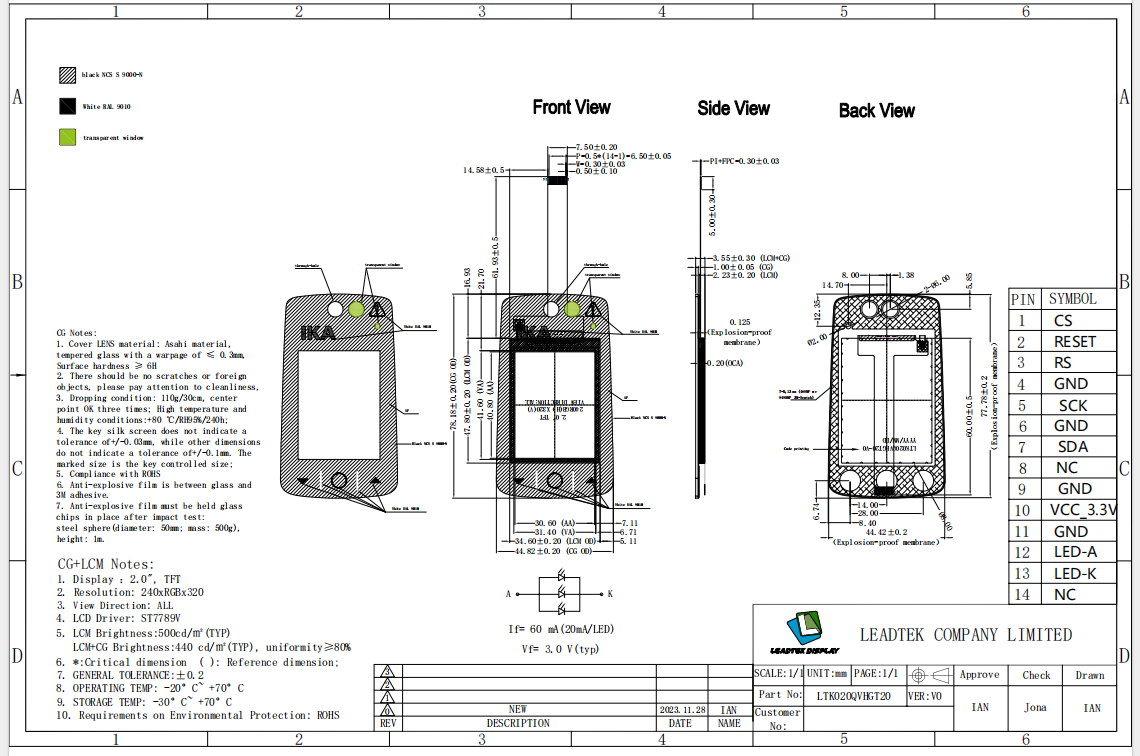

PRODUCT DRAWING
