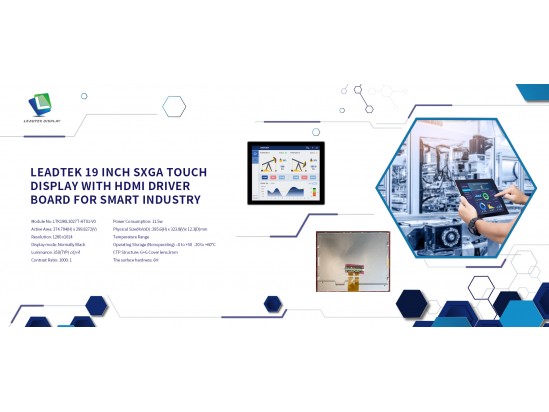

Leadtek 19 inch SXGA Touch Display with HDMI Driver Board for Smart Industry

LTK190L3027T-HT01 is a Color Active Matrix Liquid Crystal Display composed of a TFTLCD panel, driver circuit, and a backlight system. The screen format is intended to support the SXGA 1280x1024 screen and 16.7M colors (RGB 6-bits + HiFRC data). All input signals are 2-channel LVDS interface. ...

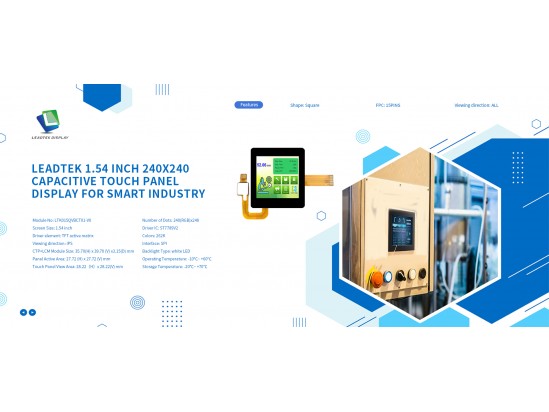

Leadtek 1.54 inch 240x240 Capacitive Touch Panel Display for Smart Industry

Features： Shape: Square 1.54 inch TFT with 240x240 Resolution FPC: 15PINS SPI Interface Viewing direction: ALL LCM Brightness:400cd/㎡(TYP) TP Structure: G+F, single point touch, IC:CST716, material 0.7mm Asahi...

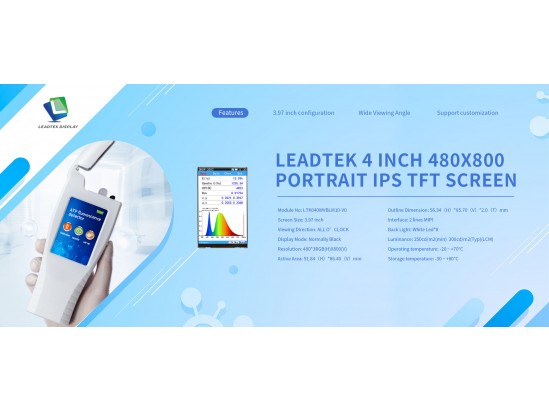

Leadtek 4 inch 480x800 Portrait IPS TFT Screen

LTK040WVBLM10-V0 is a color active matrix TFT-LCD (Thin Film Transistor Liquid Crystal Display) module that uses amorphous silicon TFT as a switching device. This module is composed of LCD panel, driver IC and LED backlight. Features： 3.97 inch configuration Wide Viewing Angle...

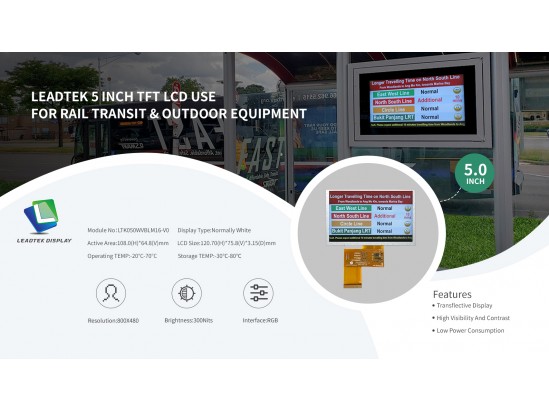

Leadtek 5'' 800x480 Transflective Display Use For Outdoor Equipment

Basic Parameters： Module No：LTK050WVBLM16-V0 Display Type:Normally White Interface:RGB Resolution: 800x480 Active Area:108.0(H)*64.8(V)mm LCD Size:120.70(H)*75.8(V)*3.15(D)mm Luminance: 330nits Operating TEMP:-20℃~70℃ Storage TEMP :-30℃~80℃ Features: Transflective Display、High Visibility And Contrast、Low Power...

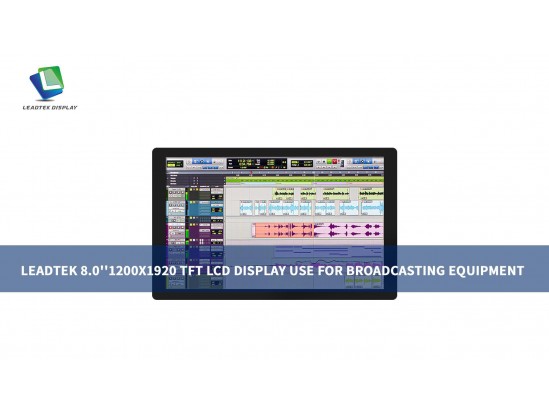

LEADTEK 8.0’’ 1200X1920 TFT LCD DISPLAY USE FOR BROADCASTING EQUIPMENT

Basic Parameters： Module No：LTK080FHACT13-V0 Display Type: NormallyBlack Interface: MIPI(4lane) Resolution: 1200x1920 Active Area: 107.64(W)×172.22(H)mm Outline Dimension: 120.20(W)x194.80(H)x4.97(T)mm Luminance: 520nits CTP type：G+F+F. Operating TEMP: -10℃~50℃ Storage TEMP :...

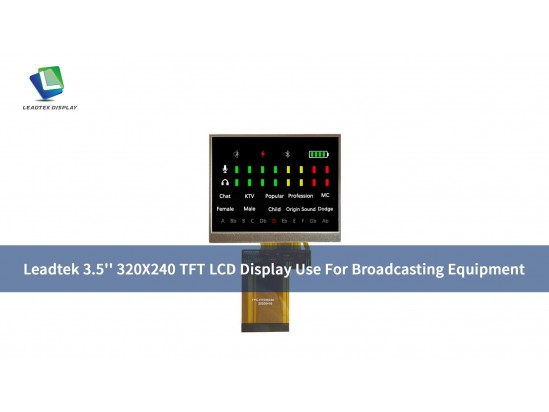

Leadtek 3.5’’ 320X240 TFT LCD Display Use For Broadcasting Equipment

Basic Parameters： Module No：LTK035QC54HYL Display Type:NormallyBlack Interface:RGB Resolution: 320X240 Active Area:108.0(H)*64.8(V)mm LCD Size:76.9(H)*63.9(V)*3.2(D)mm Luminance: 320nits Operating TEMP:-20℃~70℃ Storage TEMP :-30℃~80℃ If you want to know more...

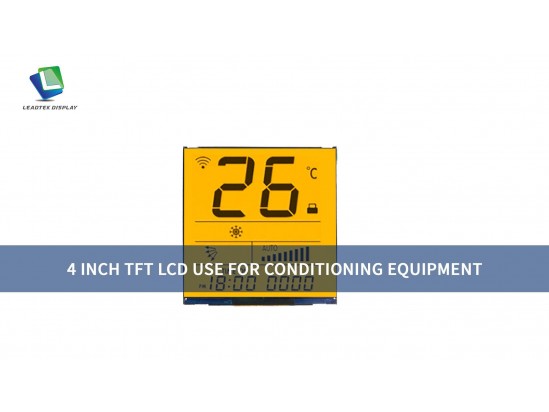

4 INCH TFT LCD USE FOR CONDITIONING EQUIPMENT

Basic Parameters： Module No：LTK040H5020C-V0 Display Mode:Normally Black Interface:RGB Resolution: 480*480 LCD Size:74.83 (H)*78.98 (V)*2.06(D)mm Active Area:71.86 (H)* 70.18 (V)mm LCM Brightness: 400nits Driver IC:ST7701S Application:Conditioning Equipment Operating Temperature:-20°C ~70°C Storage Temperature :-30°C ~80°C If you are...

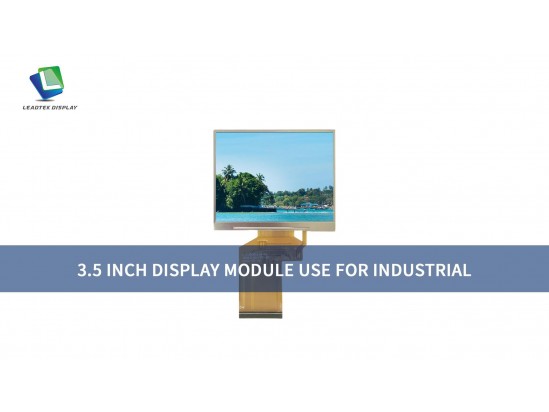

3.5 INCH DISPLAY MODULE USE FOR INDUSTRIAL

Basic Parameters: Model Number :LTK035QV54BYL-KR02 LCD Size:76.6(H)×63.9(V)×3.2(T) Active Area:70.08(H)×52.56(V) Resolution:320(H)×240(V) Display Mode: Normally Black Interface:RGB Brightness: 350nits LCD Drive IC:ST7272A Operating Temperature:-20~70 Degree Storage Temperature:-30~80 Degree Application：Industrial If you...

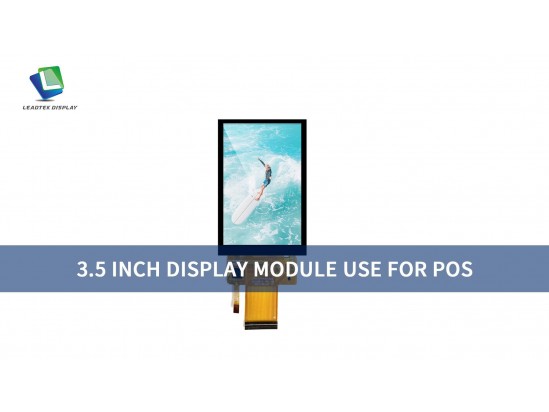

3.5 INCH DISPLAY MODULE USE FOR POS

Basic Parameters: Model Number :LTK035HV40CTA03-V0 LCD Size:54.5(W)X83.00(H)X2.20(T) Active Area:48.96(H)X73.44(V) Resolution:320(H)X480(V) Display Mode: Normally White Viewing Direction:12 O’CLOCK Interface:MCU/SPI Brightness: 230 nits LCD Drive IC:ILI9488 Application：POS Operating Temperature:-20~60 Degree If you are interested in this...

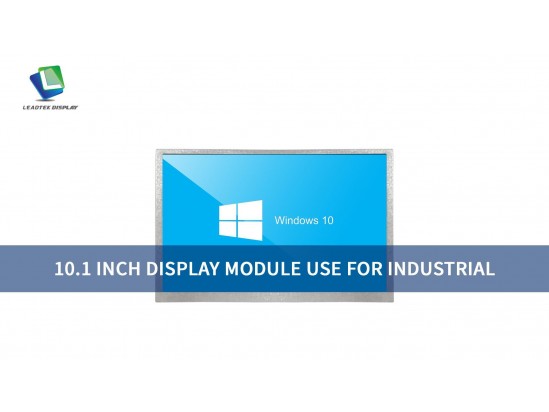

10.1 INCH DISPLAY MODULE USE FOR INDUSTRIAL

Basic Parameters: Model Number :LTK101B4551K-V1 LCD Size:233.20(H)×152.90(V)×7.6(T) Active Area:216.8(H)×135.5(V) Resolution:1920(H)×1200(V) Display Mode: Normally Black Interface:LVDS Brightness: 1000 nits LCD Drive IC:HX8290-B Application：Industrial Operating Temperature:-10~50 Degree If you are interested in this model, please leave a...

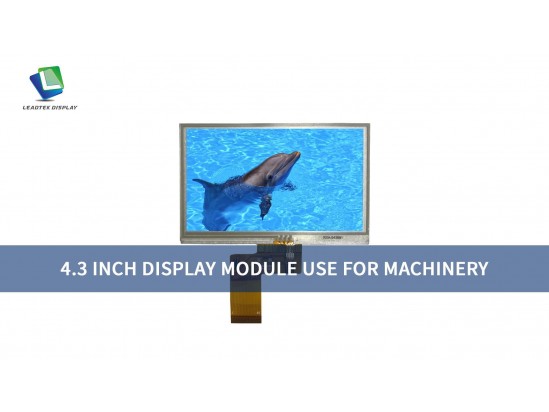

4.3 INCH DISPLAY MODULE USE FOR MACHINERY

Basic Parameters: Model Number :LTK430WQ12B-T LCD Size:105.5(W)×67.2(H)×4.15(T) Active Area:95.04(W)×53.856(H) Resolution:480(RGB)×272 Display Mode: Normally white Interface:24-bit RGB LCD Drive IC:ST7282 Application：Machinery Operating Temperature:-20~70 Degree Storage temperature:-30~80 Degree Brightness: 600 nits If you are...

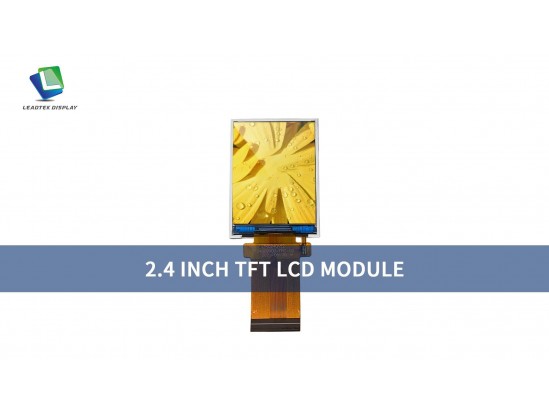

2.4 INCH TFT LCD MODULE

Product Parameters： LCD Type：2.4 TFT LCD Size:42.72 (W)x59.46(H) x2.50(D) mm TFT Active Area:110.4(W) x 62.10(H) mm Resolution: 240X320 Display Mode:IPS Interface:MCU 16BIT Driver IC：ST7789V2 LCM Brightness: 700 nits Application：Industrial Handheld Devices Operating Temperature:-20~70 Degree Storage Temperature :-30~80 Degree ...
