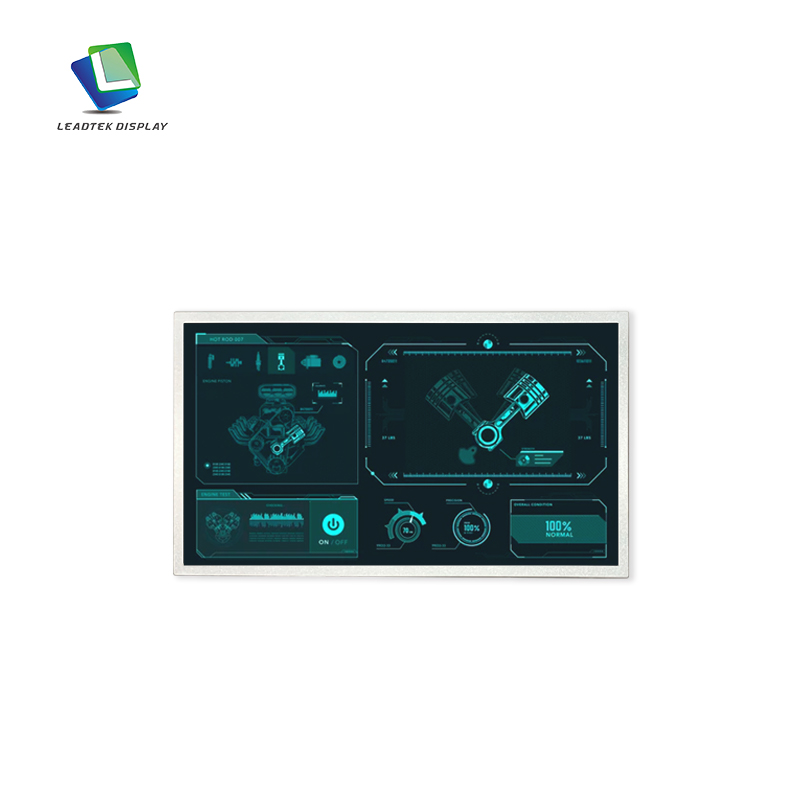

New 15.6 Inch 1920*1080 High Brightness Touch Screen TFT LCD Module

The LTK156FTICT29-V0 is a 15.6-inch Full HD IPS LCD module with a resolution of 1920×1080, delivering sharp images and wide viewing angles. It offers 800 cd/m² high brightness, ensuring excellent visibility in various lighting conditions. The module features an LVDS interface, a G+G capacitive touch panel with WD8730A driver IC, and an active area of 344.16 × 193.59 mm. With an extended operating temperature range of -30~+85°C, it is designed for reliable use in smart transportation systems.

Inquire Now

BackPrevious

Product Details

Size(inch)	15.6
Mode	LTK156FTICT29-V0
Display Mode	IPS
Resolution	1920*1080
Interface	LVDS
Luminance (cd/m²)	800
Active Area(mm)	344.16 x 193.59
Outline Dimension(mm)	386.80 x236.07 x13.42
Touch Screen	CTP
CTP Type	G+G
CTP Driver IC	WD8730A
Operating Temp	-30~+85℃
Storage Temp	-30~+85℃
