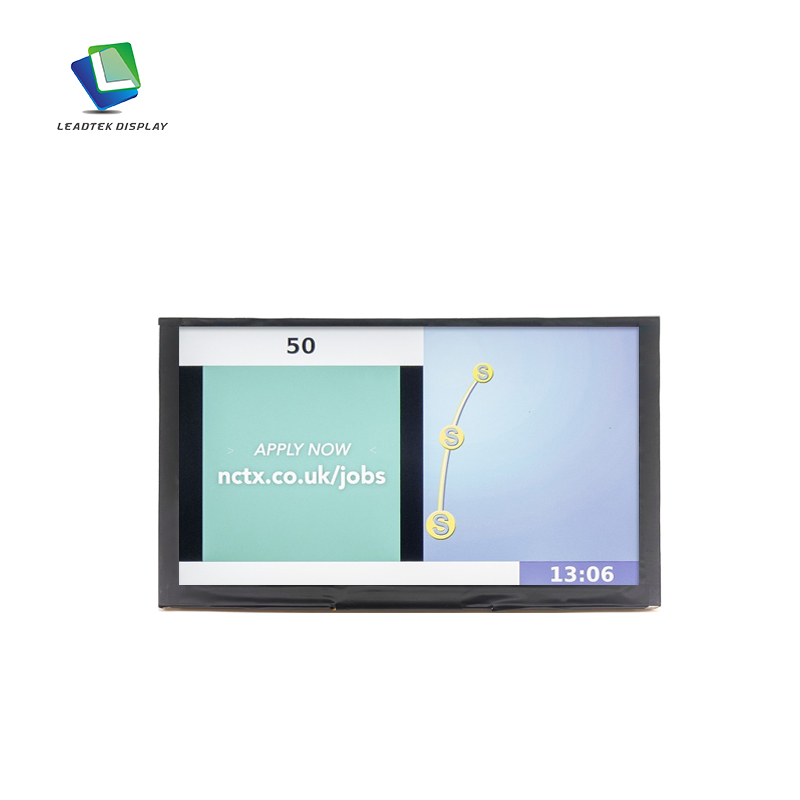

5.0 inch 800*480 RGB-24bit IPS Transflective Display
The LTK050WVHLM20-V1 is a 5.0-inch transflective display with 800×480 resolution and 16.7M full-color output, ideal for smart transportation systems. It offers excellent visibility in various lighting conditions with 12.5% reflectivity and 80 cd/m² brightness. Featuring RGB interface and JD9165BA driver IC, it ensures smooth integration. Designed for reliable operation from -20℃ to +70℃, this display balances performance and durability for demanding environments.
- Product Details
| Size(inch） | 5.0 |
| Part Number. | LTK050WVHLM20-V1 |
| Resolution | 800*480 |
| Display Type | Transflective |
|
Viewing Angle |
60/60/55/55 |
| Color | 16.7M, full color |
| Reflectivity | 12.5% |
| Power Consumption | 1080 |
| Active Area (mm) | 108.0*64.8 |
| LCM Outline Dimension (mm) | 120.90*76.00*3.21 |
| Drive IC | JD9165BA |
| Interface | RGB |
| Luminance (cd/m²) | 80 |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |
