5.0-inch Portrait HDMI Smart Display for Medical Devices

The LTK050FTHHT44-V0 is a 5.0-inch HDMI Smart Display.Featuring an IPS TFT LCD, responsive capacitive touch, and plug-and-play HDMI connectivity, it delivers a reliable and intuitive HMI solution while reducing development time. With support for up to 1920 × 1080 HDMI input, this smart display offers excellent compatibility with embedded systems, industrial PCs, and medical controllers. Its wide viewing angle, stable performance, and operating temperature range of -20°C to +70°C make it ideal for applications such as portable diagnostic devices, medical analyzers, patient monitoring systems, and laboratory equipment.

Inquire Now

BackPrevious

Product Details

Model number	LTK050FTHHT44-V0
Size(inch)	5.0
Resolution	480*854
Viewing Angle	IPS
Luminance (cd/m²)	350
Signal Input	HDMI
SignalOutput	MIPI

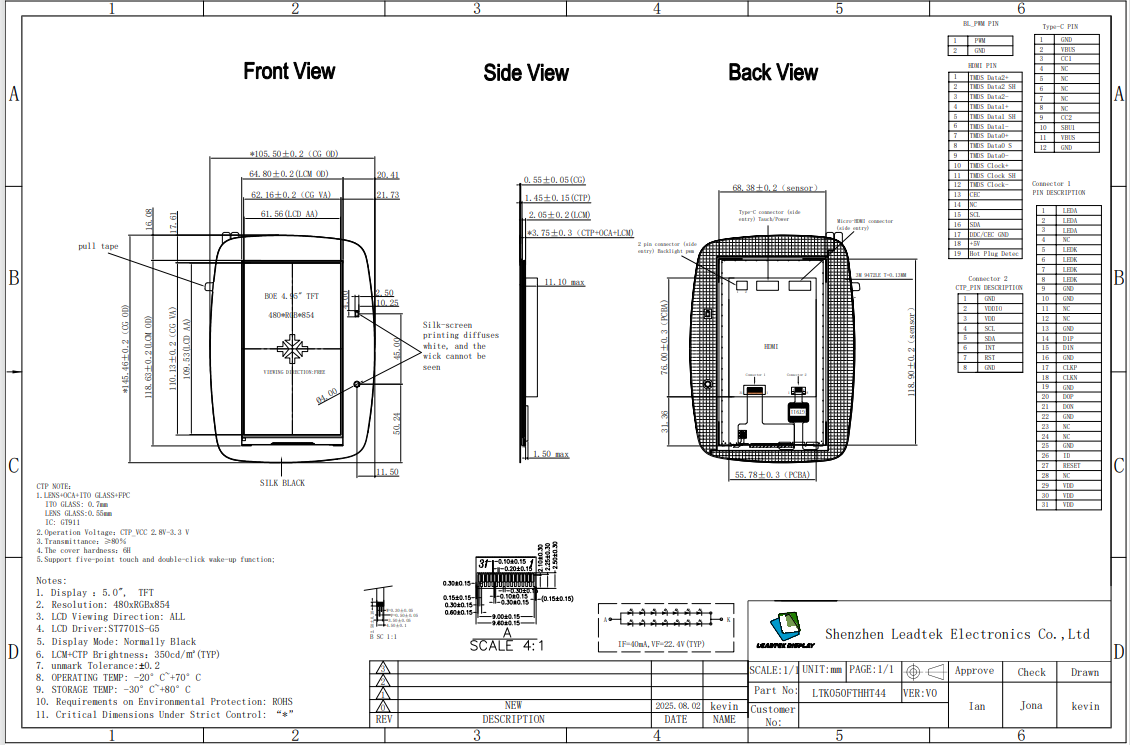

Active Area(mm)	61.56*109.53
Outline Dimension(mm)	145.46105.503.75
Touch Screen	CTP
PCB Outline	90.0062.0015.00
Operating Temp	-20~+70℃
Storage Temp	-30~+80℃
Power Supply	5V/3A
