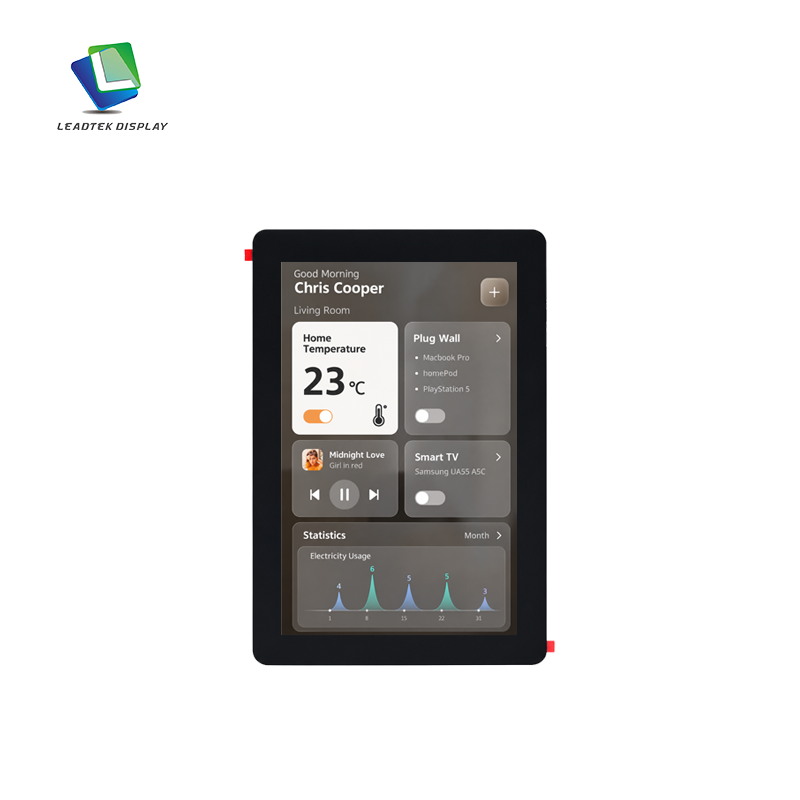

10.1" 800*1280 IPS Portrait HDMI Display Module with Touch Screen

The LTK101FTNHT66-V0 is a 10.1-inch portrait HDMI smart display designed for smart home control panels and intelligent terminal applications. Featuring an 800×1280 resolution IPS display, 420 cd/m² brightness, and capacitive touch functionality, it delivers clear visuals and smooth interactive experiences. With HDMI input, MIPI output, and integrated backlight interface, this smart display provides a flexible solution for easy system integration.Its slim design, wide operating temperature range, and reliable performance make it ideal for smart home panels, wall-mounted controllers, and interactive IoT devices.

Inquire Now

BackPrevious

Product Details

Model number	LTK101FTNHT66-V0
Size(inch)	10.10
Resolution	800*1280
Viewing Angle	IPS
Luminance (cd/m²)	420
Signal Input	HDMI
SignalOutput	MIPI

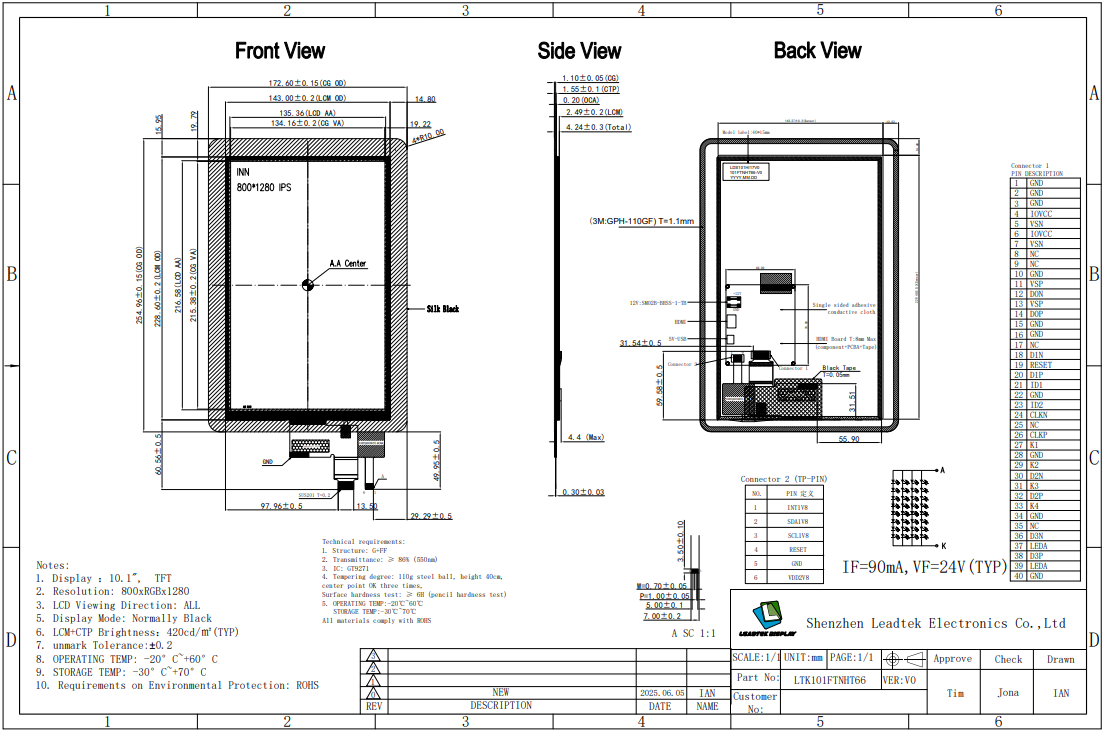

Active Area(mm)	135.36*216.58
Outline Dimension(mm)	172.60254.964.24
Touch Screen	CTP
Operating Temp	-20~+60℃
Storage Temp	-30~+70℃
Power Supply	12V/2A (with Backlight Interface)
