15.6" HDTV [16:9]Transflective LCD Module for Industrial Applications
This LTK156PDHLM24-V0 transflective LCD module features a full-color display with a resolution of 1920*1080 pixels and operates through an EDP interface. It supports 16.7 million colors and has a brightness of 200 cd/m2. The active area size is 344.16*193.59 mm and the overall size is 363.80*215.90*10.00 mm. Designed for smart industrial applications, it provides clear, high-quality visuals and reliable performance in a variety of environments.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 15.6 |
| Part Number. | LTK156PDHLM24-V0 |
| Display Type | Transflective |
| Resolution | 1920*1080 |
| Viewing Angle |
60/60/60/60 |
| Interface | EDP |
|
Luminance (cd/m²) |
200 |
| Color | 16.7M,full color |
| Reflectivity | 13.98% |
| Power Consumption(mW) | 7800 |
| Active Area (mm) | 344.16*193.59 |
| Outline Dimension (mm) | 363.80*215.90*10.00 |
|
Operating Temp |
-10~+50℃ |
|
Storage Temp |
-20~+60℃ |

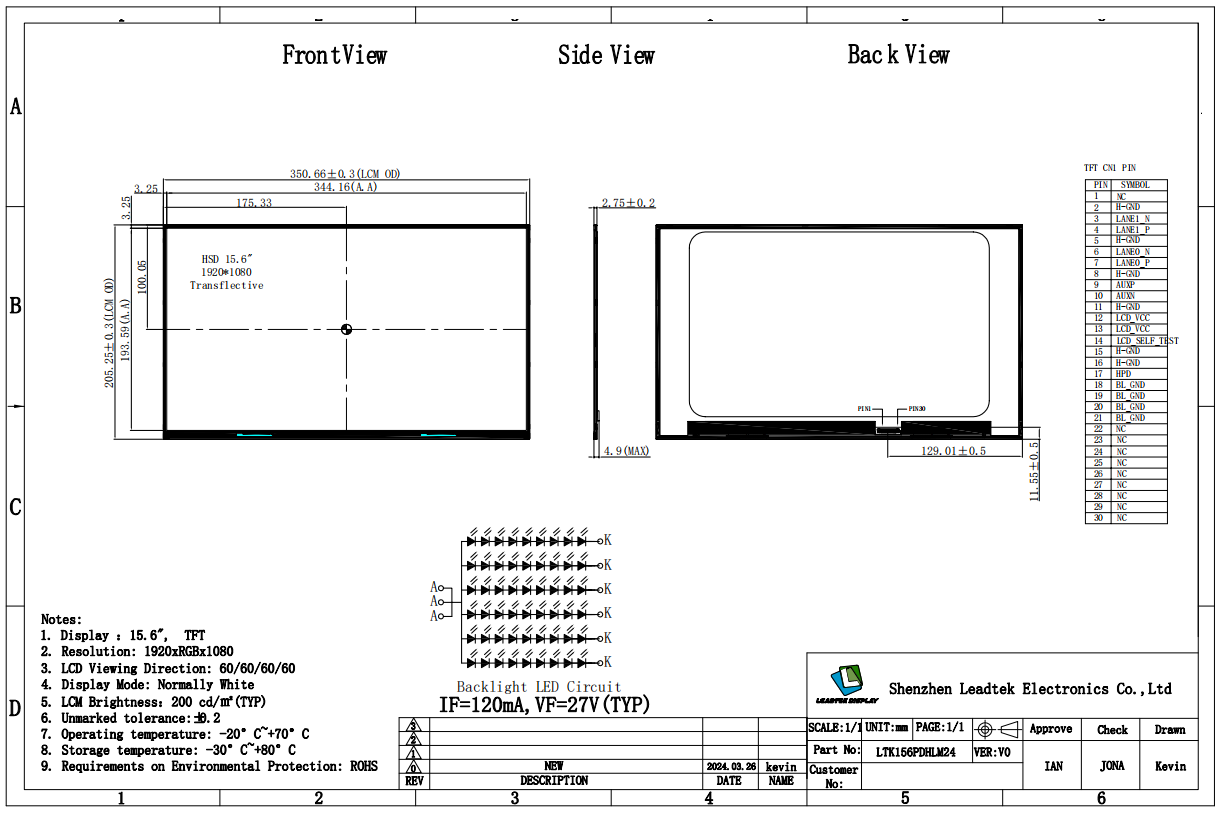

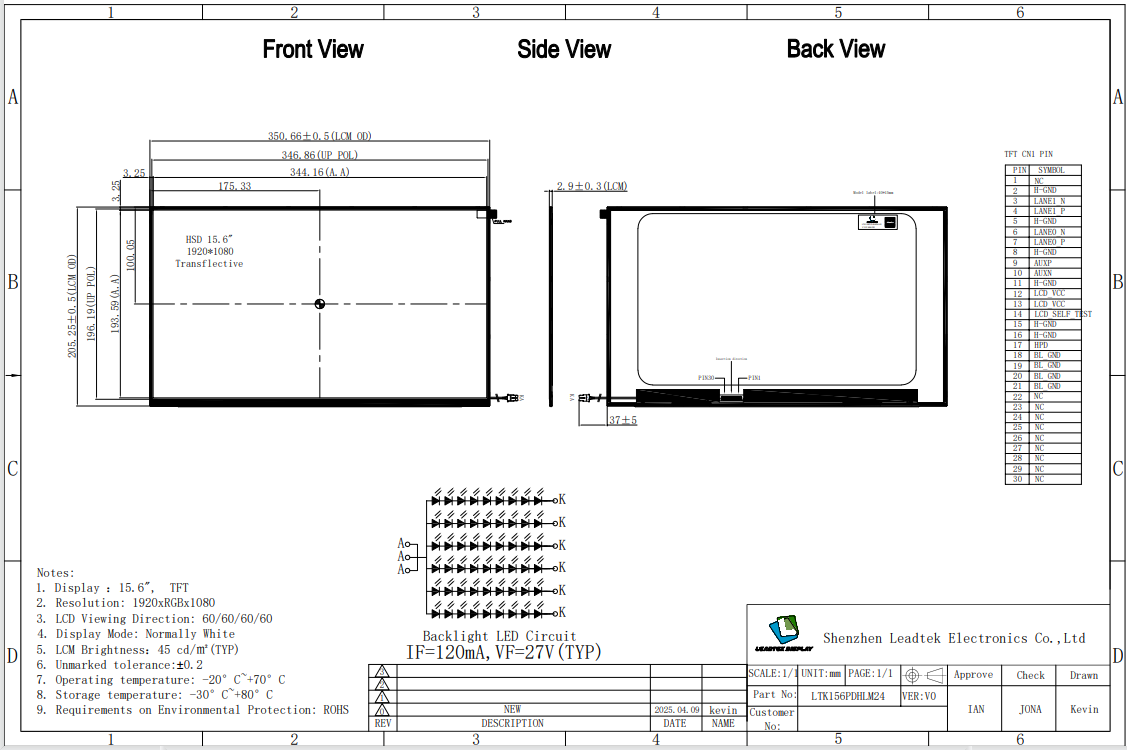

PRODUCT DRAWING
