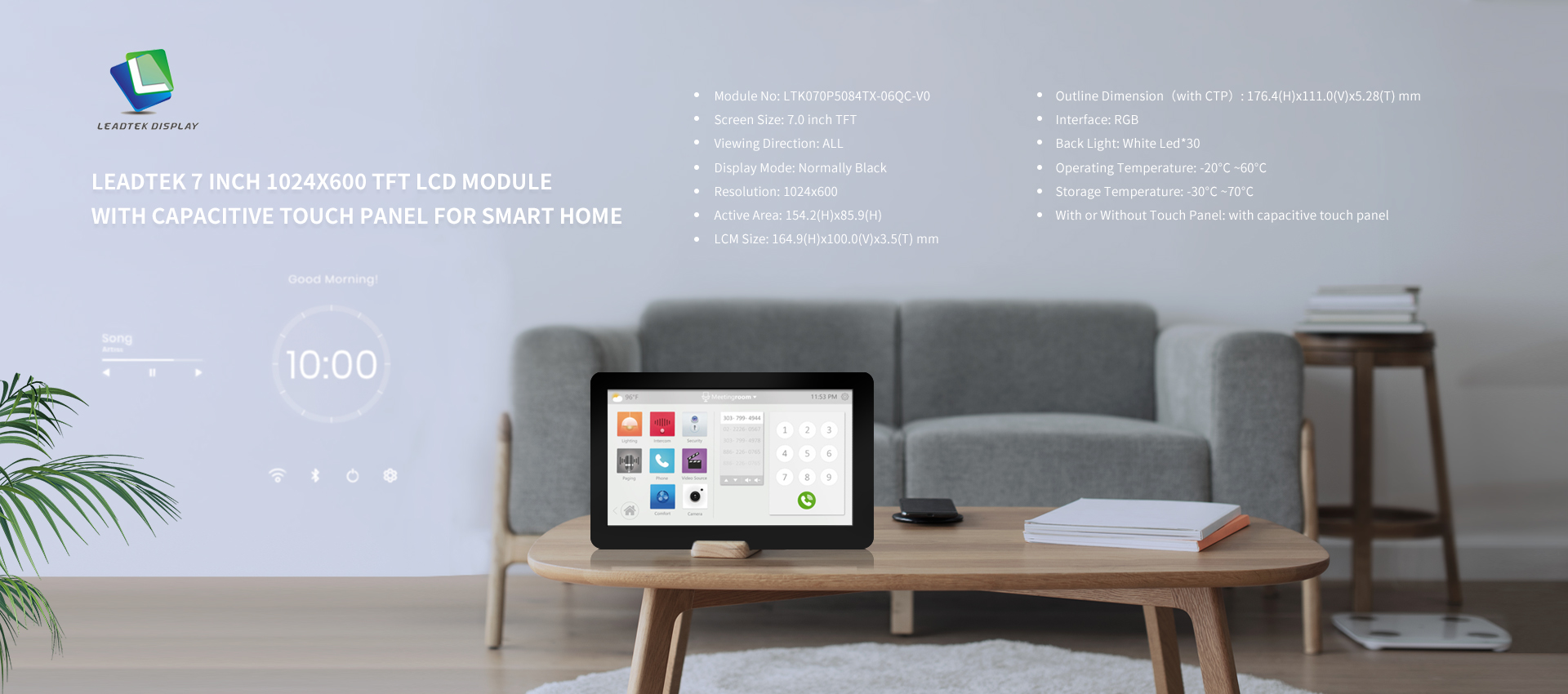

Leadtek Product Introducing - 7.0 inch 1024x600 TFT LCD Module with Capacitive Touch Panel for Smart Home


LTK070P5084TX-06QC-V0 is a color active matrix TFT-LCD (Thin Film Transistor Liquid Crystal Display) module that uses amorphous silicon TFT as a switching device. This module is composed of LCD panel, driver IC, LED backlight and Capacitive touch screen.


Features:
  • 7.0 inch configuration
  • Wide Viewing Angle
  • RoHS Compliance
  • Support customized FPC, Backlight, CTP, Surface Treatment and etc.

Application


Smart Home

BASIC PARAMETERS
Item Specification Unit
LCD Size 7.0 inch
Panel Type TFT -
Resolution 1024 x RGB x600 pixel
Display Mode Normally Black -
Number of Colors 16.7M -
Viewing Direction ALL -
Contrast Ratio 800 nits
Luminance 350 nits
CTP+LCM Module Size 176.40 (W) x111.00(L) x5.28(H) mm
Panel Active Area 154.21 (W) x 85.92(L)  mm
Pixel Pitch 0.1506 (H) x 0.1432(V)  mm
Driver IC HX8282A -
Light Source 30 white LED in 3S10P -
Interface RGB-24bit -
Operating Temperature -20~+60
Storage Temperature -30~+70


To learn more about the product, please click on the video https://youtu.be/n3_zrjpJpl8
