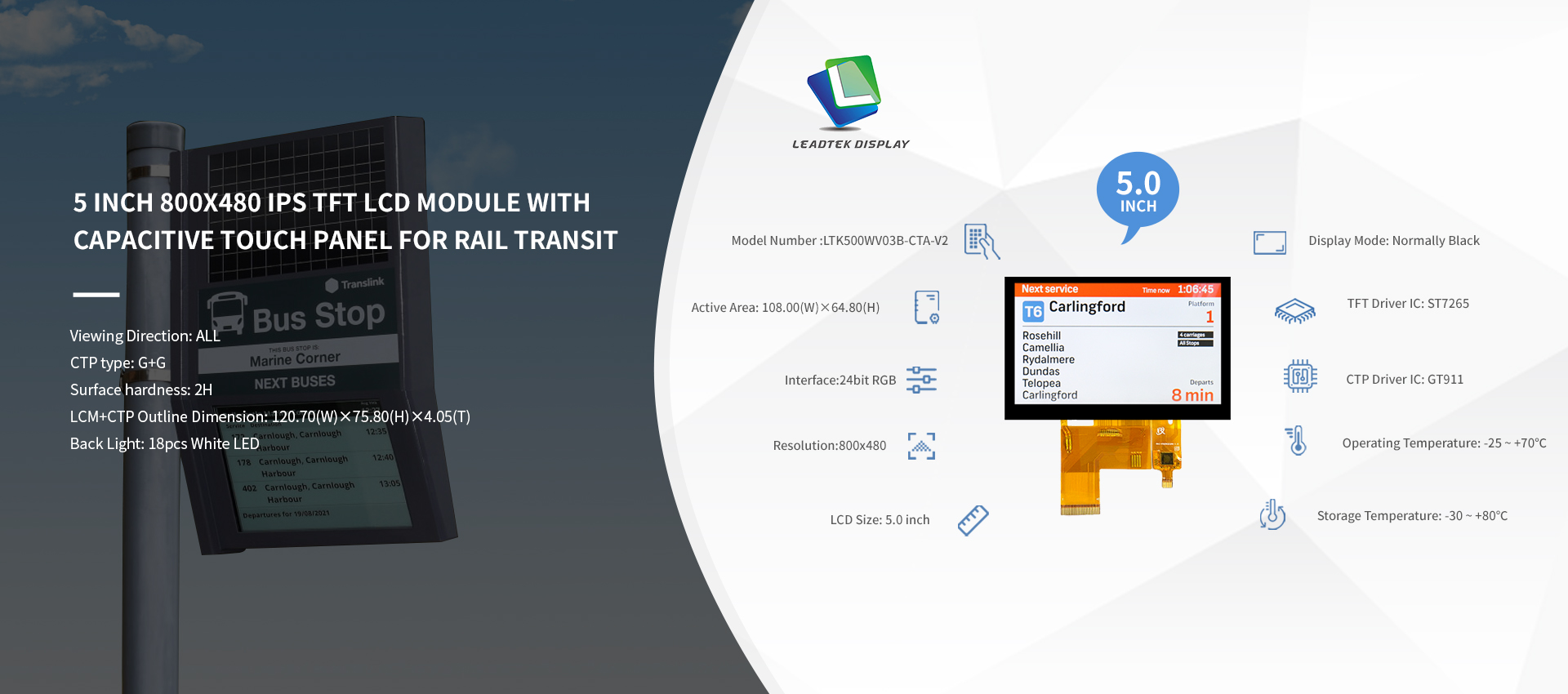

5 inch 800x480 IPS TFT LCD MODULE WITH CAPACITIVE TOUCH PANEL FOR RAIL TRANSIT

Prev Update date: Dec 15,2023 Next

Today we are going to introduce our 5 inch 800x480 IPS TFT LCD MODULE WITH CAPACITIVE TOUCH PANEL FOR RAIL TRANSIT


P/N# LTK500WV03B-CTA-V2


Features:

  • Wide Viewing Angle
  • Fast Display Speed
  • Good Display Effect
  • Support customized FPC, Backlight, CTP, Surface Treatment and etc.


Application:

Rail Transit


General Information

ITEM  STANDARD VALUES UNITS
LCD type 5.0’’TFT --
Dot arrangement  800(RGB)×480 dots
Color filter array RGB vertical stripe  --
Display mode Normally Black --
Viewing Direction  ALL --
TFT Driver IC ST7265  --
CTP type  G+G --
 Surface hardness  2H --
CTP Driver IC  GT911 mm
LCM+CTP Outline Dimension 120.70(W)×75.80(H)×4.05(T)  mm
Active area 108.00(W)×64.80(H)  mm
Dot pitch 0.08625(H) x 0.08625(V)  mm
Interface 24bit RGB --
Operating temperature -25 ~ +70  ℃
Storage temperature -30 ~ +80 ℃
Back Light  18pcs White LED  --


Introductory Video of LTK500WV03B-CTA-V2:  https://youtu.be/5re5B2BtDoQ


If you are interested in this model, pls don't hesitate to contact us. The attachment is the specification of the product.
