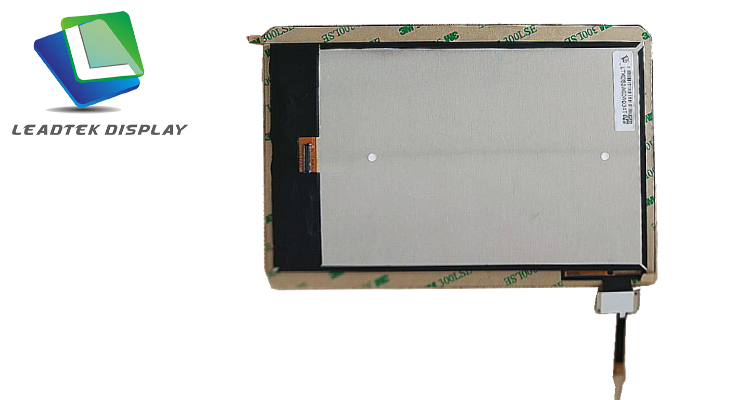

8.0" IPS Display with 1200x1920 Resolution
This 8.0" IPS display features a high resolution of 1200x1920 with a MIPI interface, delivering crisp and detailed visuals. The display area measures 107.64(W) x 172.22(H) mm, and the overall dimensions are 132.6(W) x 193.6(H) x 3.6(T) mm. It operates within a temperature range of 0°C to 50°C, with a storage range of -10°C to 60°C. Ideal for high-resolution applications requiring superior image quality.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 8.0 |
| Part Number. | LTK080A60A004T-V0 |
| Display Mode | IPS |
| Resolution | 1200*1920 |
| Interface | MIPI |
| Luminance (cd/m²) | 400 |
| Active Area (mm) | 107.64*172.22 |
| Outline Dimension (mm) | 132.6*193.6*3.6 |
| Touch Screen | NA |
| Operating Temp | -0°C TO 50°C |
| Storage Temp | -10°C TO 60°C |

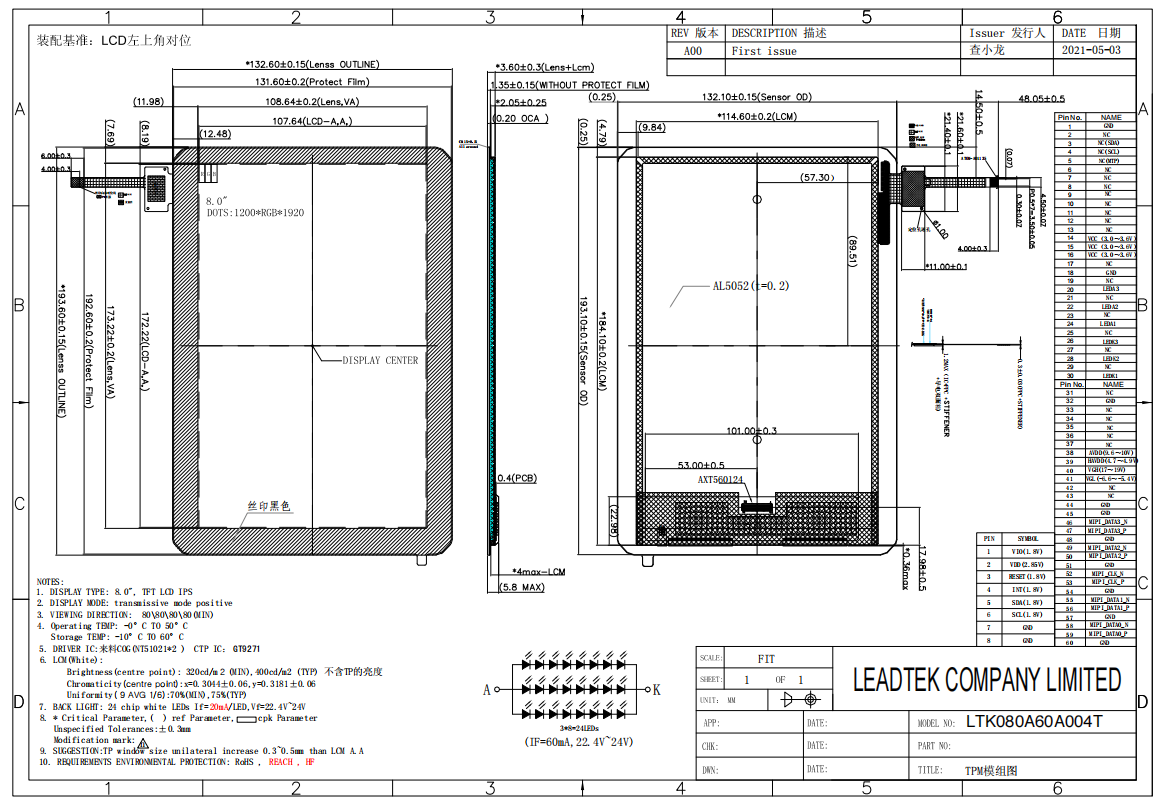

PRODUCT DRAWING
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
