What is the difference between AMOLED and transflective display?

Prev Views: 81 Update date: Nov 05,2024 Next

AMOLED and transflective displays are two different types of display technologies, each with its own characteristics and advantages. Here are the key differences between them:

AMOLED (Active-Matrix Organic Light-Emitting Diode):

1. Technology: Uses organic compounds that emit light when an electric current is applied.
2. Backlight: Does not require a backlight; each pixel produces its own light.
3. Contrast: Offers very high contrast ratios, with deep blacks and vibrant colors.
4. Power consumption: Generally more power-efficient, especially when displaying darker content.
5. Viewing angles: Excellent viewing angles with minimal color shift.
6. Refresh rate: Can achieve high refresh rates, good for smooth motion.
7. Sunlight readability: Can be challenging to read in direct sunlight.
8. Longevity: May be susceptible to screen burn-in over time.

Transflective Display:

1. Technology: Combines both transmissive and reflective display elements.
2. Backlight: Uses a backlight for low-light conditions but can also reflect ambient light.
3. Contrast: Generally lower contrast than AMOLED, especially in low light.
4. Power consumption: Can be very efficient in bright light conditions when using reflected light.
5. Viewing angles: Typically narrower viewing angles compared to AMOLED.
6. Refresh rate: Generally lower refresh rates than AMOLED.
7. Sunlight readability: Excellent readability in direct sunlight due to its reflective properties.

8. Longevity: Less prone to burn-in issues.

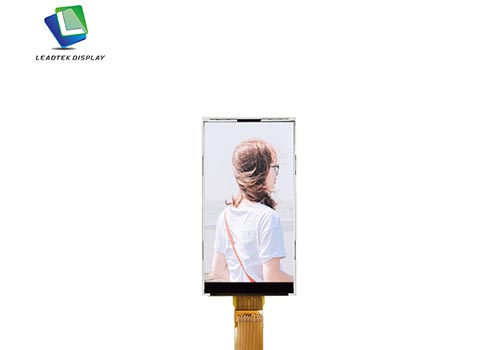

transflective lcd


Main differences:

1. Sunlight visibility: Transflective displays excel in bright outdoor conditions, while AMOLEDs can struggle.
2. Power efficiency: AMOLEDs are more efficient in low-light conditions, while transflective displays are more efficient in bright light.
3. Image quality: AMOLEDs generally offer better color reproduction and contrast.
4. Use cases: Transflective displays are often used in outdoor devices like smartwatches and GPS units, while AMOLEDs are common in smartphones and high-end displays.

Each technology has its strengths, and the choice between them depends on the specific application and usage conditions.
