Leadtek’s Deep Customization Capabilities in Display Solutions - Part 4: FPC Customization
Leadtek’s FPC offerings combine cutting-edge engineering with military-grade durability to enable seamless signal transmission and robust performance in even the most challenging environments.
Precision Engineering for Every Application

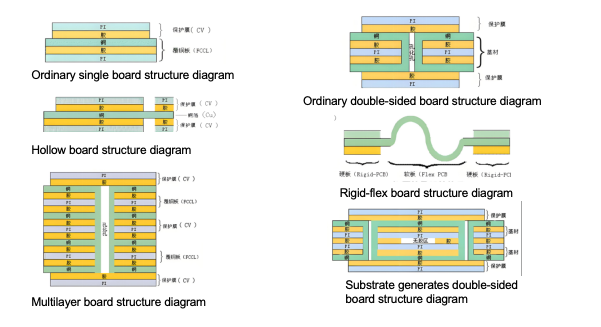

Leadtek’s FPC solutions are tailored to support a wide range of complexities and requirements:
• Single-Layer FPC: A lightweight, cost-effective solution for basic signal transmission needs.• Double-Layer FPC: Optimized wiring density for balanced performance and affordability.
• Multi-Layer FPC (4L/6L/8L+): Advanced high-frequency, high-speed transmission for complex circuits and miniaturized designs.
Superior Materials and Surface Treatments
To ensure optimal flexibility, signal integrity, and longevity, Leadtek utilizes premium materials and state-of-the-art finishes:
Copper Foil Substrates:
• Rolled Copper (RA): Ultra-thin, high-flex endurance (100,000+ bends).• Adhesive vs. Adhesive-Free: Customized for flexibility or enhanced adhesion.
• Electrolytic Copper (ED): An economical choice for general-purpose applications.
Surface Treatments:
• ENIG (Electroless Nickel Immersion Gold): High oxidation resistance for precision pads.• Immersion Silver: Superior solderability for high-speed signals.
• OSP (Organic Solderability Preservative): Eco-friendly and cost-efficient for standard needs.
Advanced Connectivity and Protection
Leadtek’s FPC solutions integrate sophisticated connection technologies and protective features:
• Board-to-Board (BTB) Connectors: High-density interconnects with precision pitches as fine as 0.35mm.• Zero Insertion Force (ZIF) Connectors: Simplified assembly with reduced mechanical wear.
• EMI Shielding: Combined copper foil and absorbing materials to suppress interference by over 30dB.
• Sensor Fusion Cables: Integrated impedance control for light, pressure, and temperature sensing.
• IPC-Certified Protection: Triple-proof coating (moisture, salt spray, mildew) per IPC-CC-830 standards.
Key Advantages
• Military-Grade Reliability: Tested under extreme conditions (bend, salt spray, temperature cycles).• Ultra-Thin Profile: As thin as 0.1mm for space-constrained applications.
• Full Customization: Tailored line width, spacing, layer count, and materials.
Leadership Insight
In today’s interconnected world, flexibility and reliability are non-negotiable. Our FPC solutions are engineered to exceed industry standards, providing our clients with the precision and durability needed to power next-generation technologies—from wearable devices to industrial automation systems.
Why Partner with Leadtek?
• End-to-End Customization: From conceptual design to final production.• Rigorous Testing: Ensured performance under real-world conditions.
• Scalable Solutions: Prototyping to high-volume manufacturing.
Explore Our FPC Capabilities
To learn more about Leadtek’s FPC customization services or to discuss your project requirements, contact our team today:
[ Sales Email: sales@leadtekdisplay.com ]
[ Website URL: www.leadtekdisplay.com ]
Leadtek – Engineering Connectivity, Defining Reliability.
About Leadtek
Leadtek specializes in advanced display and connectivity solutions, serving global clients in smart home, medical, industrial automation, and transportation with a commitment to innovation, quality, and customization.
