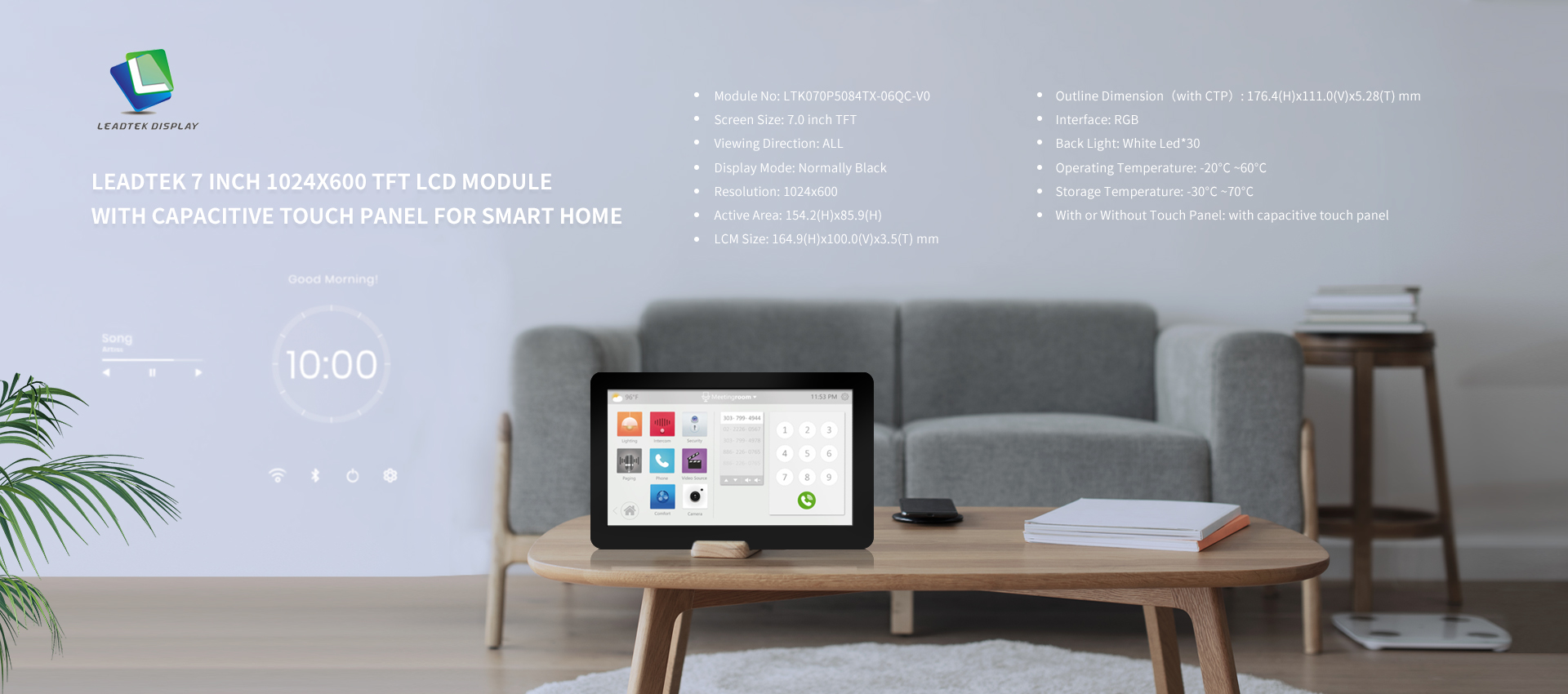

Leadtek 7 inch 1024x600 TFT LCD Module with Capacitive Touch Panel for Smart Home
Leadtek Product Introducing - 7.0 inch 1024x600 TFT LCD Module with Capacitive Touch Panel for Smart Home
LTK070P5084TX-06QC-V0 is a color active matrix TFT-LCD (Thin Film Transistor Liquid Crystal Display) module that uses amorphous silicon
TFT as a switching device. This module is composed of LCD panel, driver IC, LED backlight and Capacitive touch screen.
- 7.0 inch configuration
- Wide Viewing Angle
- RoHS Compliance
- Support customized FPC, Backlight, CTP, Surface Treatment and etc.
Application
Smart Home
BASIC PARAMETERS
| Item | Specification | Unit |
| LCD Size | 7.0 | inch |
| Panel Type | TFT | - |
| Resolution | 1024 x RGB x600 | pixel |
| Display Mode | Normally Black | - |
| Number of Colors | 16.7M | - |
| Viewing Direction | ALL | - |
| Contrast Ratio | 800 | nits |
| Luminance | 350 | nits |
| CTP+LCM Module Size | 176.40 (W) x111.00(L) x5.28(H) | mm |
| Panel Active Area | 154.21 (W) x 85.92(L) | mm |
| Pixel Pitch | 0.1506 (H) x 0.1432(V) | mm |
| Driver IC | HX8282A | - |
| Light Source | 30 white LED in 3S10P | - |
| Interface | RGB-24bit | - |
| Operating Temperature | -20~+60 | ℃ |
| Storage Temperature | -30~+70 | ℃ |
