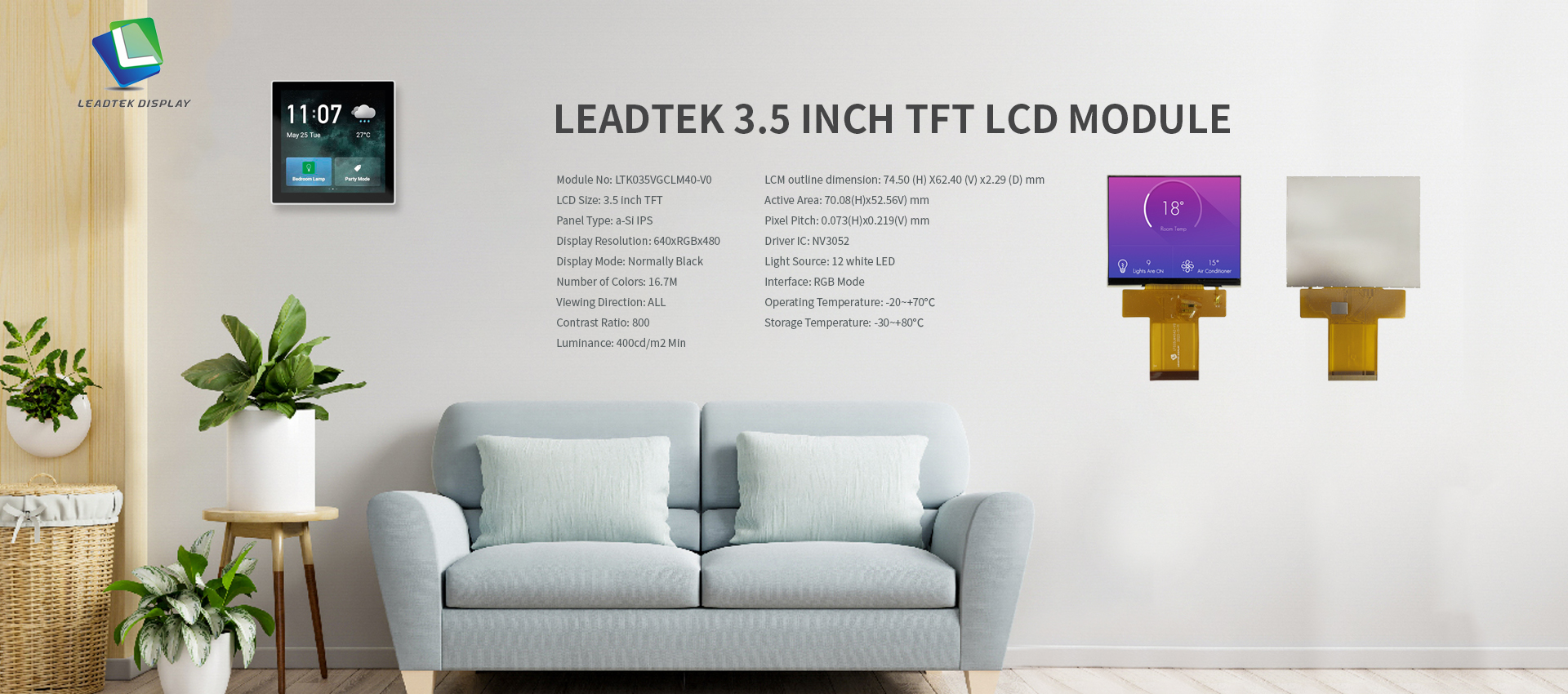

Leadtek 3.5 inch TFT LCD Module

Features：

• Size: 3.5 inch TFT LCD Module

• Display Resolution: 640x480

• Interface: 54pins RGB

• Display Mode: Normally Black / Transmissive

• Viewing Direction: ALL

• Luminance: 400cd/㎡(TYP)

• Driver IC: NV3052

• OPERATING TEMP: -20°C~ +70°C

• STORAGE TEMP: -30°C~ +80°C

Application：

Smart Home

BASIC PARAMETERS：

• Module No: LTK035VGCLM40-V0

• LCD Size: 3.5 inch TFT

• Panel Type: a-Si IPS

• Display Resolution: 640xRGBx480

• Number of Colors: 16.7M

• Contrast Ratio: 800

• LCM outline dimension: 74.50 (H) X62.40 (V) x2.29 (D) mm

• Active Area: 70.08(H)x52.56V) mm

• Pixel Pitch: 0.073(H)x0.219(V) mm

• Light Source: 12 white LED

• Interface: RGB Mode
