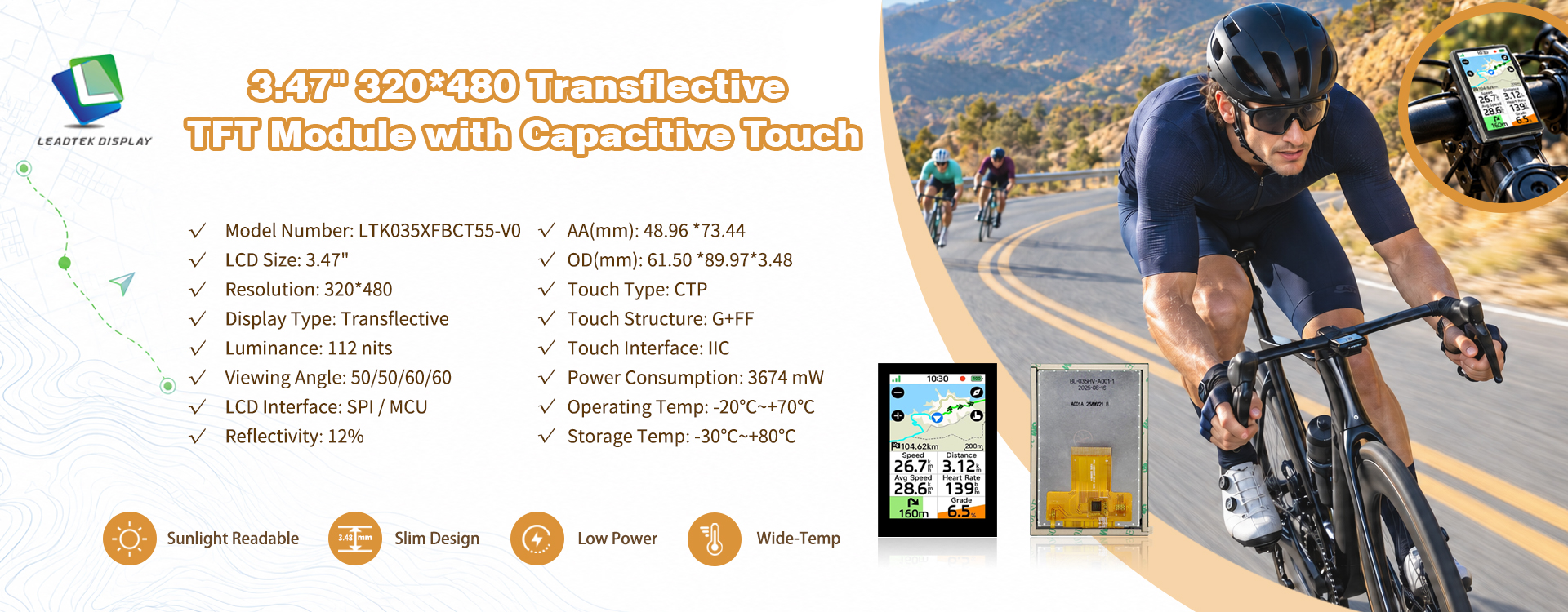

Leadtek 3.47″ 320*480 Transflective Display for Bicycle Computers
Welcome to Leadtek Display!
From checking directions on sunlit roads to monitoring performance along shaded trails, cyclists rely on their bicycle computers for essential information throughout every ride. For device developers, this means balancing outdoor readability, battery demands, intuitive interaction, and compact design.
Leadtek’s LTK035XFBCT55-V0 brings these considerations together in a 3.47″ transflective touch display. Combining a 320 × 480 full-color screen, capacitive touch, and SPI/MCU interface options, it provides a practical display solution for bicycle computers and cycling navigation devices.
Why Choose It for Your Next Bicycle Computer?
Transflective technology uses ambient light to help keep displayed information readable outdoors. With 12% reflectivity, the module supports sunlight-readable interfaces for route guidance and ride data, while its 112-nit backlight provides illumination in lower-light conditions.
✓ Support Your Power Strategy
Battery endurance matters on longer rides. By using reflected ambient light during daytime operation, the display offers opportunities to reduce reliance on backlight illumination. Developers can adapt backlight settings to their product’s visibility and power requirements.
✓ Color That Organizes Ride Data
With 320 × 480 resolution and 16.7 million colors, the portrait display provides room for navigation maps, speed, distance, elevation, and training metrics. Color can help distinguish route markings, data fields, and alerts for easier reading at a glance.
✓ Convenient Touch Interaction
The integrated G+FF capacitive touchscreen with an I²C interface supports touch-based menus, page selection, and map interaction, giving developers flexibility when designing the user experience.
✓ Compact for Handlebar-Mounted Devices
An outline of 61.50 × 89.97 × 3.48 mm supports integration into compact bicycle computer housings. The 48.96 × 73.44 mm active area provides a portrait layout for maps and multiple ride-data fields.
✓ Ready for Changing Outdoor Temperatures
With an operating temperature range of −20°C to +70°C, the module accommodates a broad range of outdoor temperature conditions, from cold morning starts to warmer riding environments.
✓ Flexible Embedded Integration
SPI/MCU display interface options and a separate I²C touch interface allow your engineering team to evaluate the module against its controller platform and system architecture.
✅ LCD Size: 3.47 inch
✅ Module Number: LTK035XFBCT55-V0
✅ Resolution: 320*480
✅ Display Type: Transflective
✅ LCD Interface: MCU/SPI
✅ Luminance: 112 cd/m²
✅ Reflectivity: 2.50%
✅ Viewing Angle: 50/50/60/60
✅ Color: 16.7M, Full Color
✅ Active Area: 48.96(W) × 73.44(H) mm
✅ Outline Dimension: 61.50(W) × 89.97(H) × 3.48(T) mm
✅ Touch Screen: CTP
✅ TP Structure: G+FF
✅ TP Interface: I²C
✅ Power Consumption: 3674 mW
✅ Operating Temperature: -20°C to +70°C
✅ Storage Temperature: -30°C to +80°C
Whether you are developing a navigation-focused bicycle computer, a training device, or a multifunction cycling terminal, Leadtek can help you evaluate the display against your application requirements.
Share your target specifications, interface requirements, and project schedule with us. Contact our team for the datasheet, sample availability, and quotation.
▶Product Showcase Video: https://youtu.be/19OzJ69e1ik
