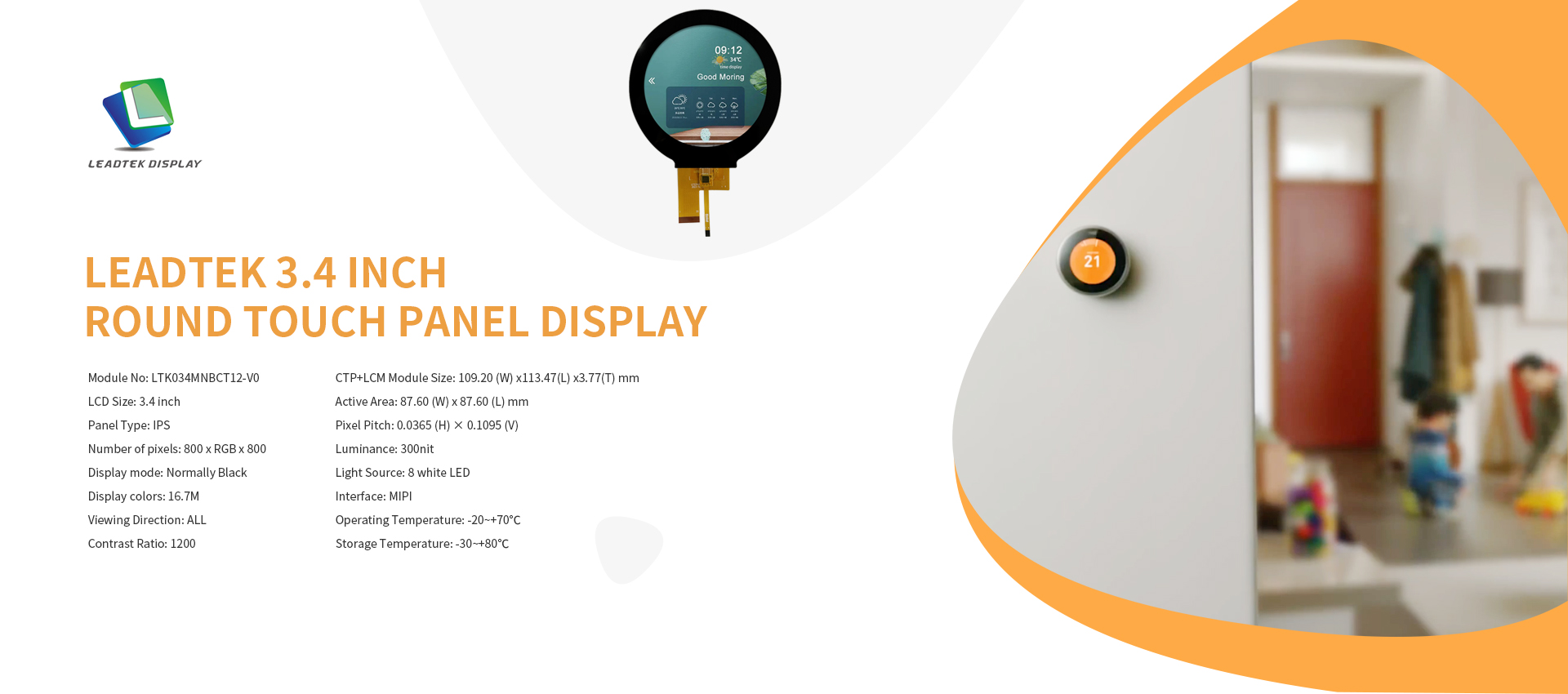

Leadtek 3.4 inch Round Touch Panel Display

This small high resolution round display is designed especially for smart home. LCD viewing direction ALL, people could

see the quality display image from any angle. It has a built-in FL7705NI-G controller.The material is RoHS compliant.

Features：

• Size: 3.4 inch round configuration

• Resolution: 800x800

• Display mode: Normally Black

• Viewing Direction: ALL

• Contrast Ratio: 1200

• CTP type: G+F

• Interface: MIPI

• Light Source: 8 White LED

Application：

Smart Home

BASIC PARAMETERS：

• Module No: LTK034MNBCT12-V0

• LCD Size: 3.4 inch

• Panel Type: IPS

• Number of pixels: 800 x RGB x 800

• Display mode: Normally Black

• Display colors: 16.7M

• Viewing Direction: ALL

• Contrast Ratio: 1200

• Luminance: 300nit

• CTP+LCM Module Size: 109.20 (W) x113.47(L) x3.77(T) mm

• Active Area: 87.60 (W) x 87.60 (L) mm

• Pixel Pitch: 0.0365 (H) × 0.1095 (V)

• Driver IC: FL7705NI-G

• Light Source: 8 white LED

• Interface: MIPI

• Operating Temperature: -20~+70℃

• Storage Temperature: -30~+80℃
