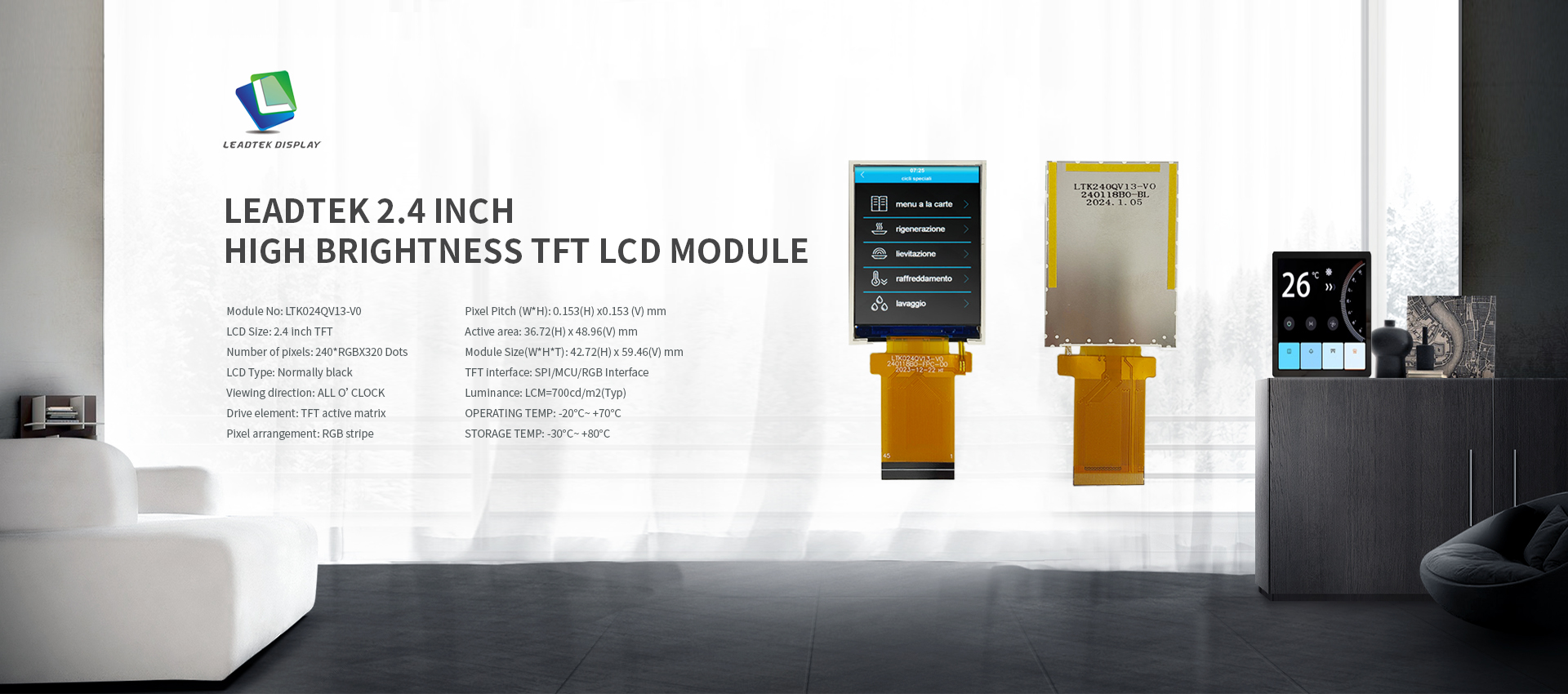

Leadtek 2.4 inch High Brightness TFT LCD Module
Features：
-
Size: 2.4 inch
-
Drive element: TFT active matrix
-
Number of pixels: 240X320
-
Structure: TFT PANNEL+IC +FPC+BL
-
Viewing Direction: full viewing
-
Display Mode: Normally Black
-
TFT Driver IC: ST7789V2
-
TFT interface: SPI/MCU/RGB Interface
-
Luminance: LCM=700cd/m2(Typ)
-
OPERATING TEMP: -20°C~ +70°C
-
STORAGE TEMP: -30°C~ +80°C
Application：
Smart Home
BASIC PARAMETERS：
-
Module No: LTK024QV13-V0
-
LCD Size: 2.4 inch TFT
-
Number of pixels: 240*RGBX320 Dots
-
LCD Type: Normally black
-
Viewing direction: ALL O’CLOCK
-
Drive element: TFT active matrix
-
Pixel arrangement: RGB stripe
-
Pixel Pitch (W*H): 0.153(H) x0.153 (V) mm
-
Active area: 36.72(H) x 48.96(V) mm
-
Module Size(W*H*T): 42.72(H) x 59.46(V) mm
-
TFT Driver IC: ST7789V2
-
TFT interface: SPI/MCU/RGB Interface
-
Luminance: LCM=700cd/m2(Typ)
-
OPERATING TEMP: -20°C~ +70°C
-
STORAGE TEMP: -30°C~ +80°C
To learn more about the product, please click on the video:https://youtu.be/sHyAvpSbdGw
